client AGG_Cluster
rbridge-id 1801
client-interface ethe 1/1
deploy
MCT configuration with VRRP-E example
Figure 36 shows a sample MCT configuration with VRRP-E. The associated configuration follows. The
configuration for VRRP is similar.

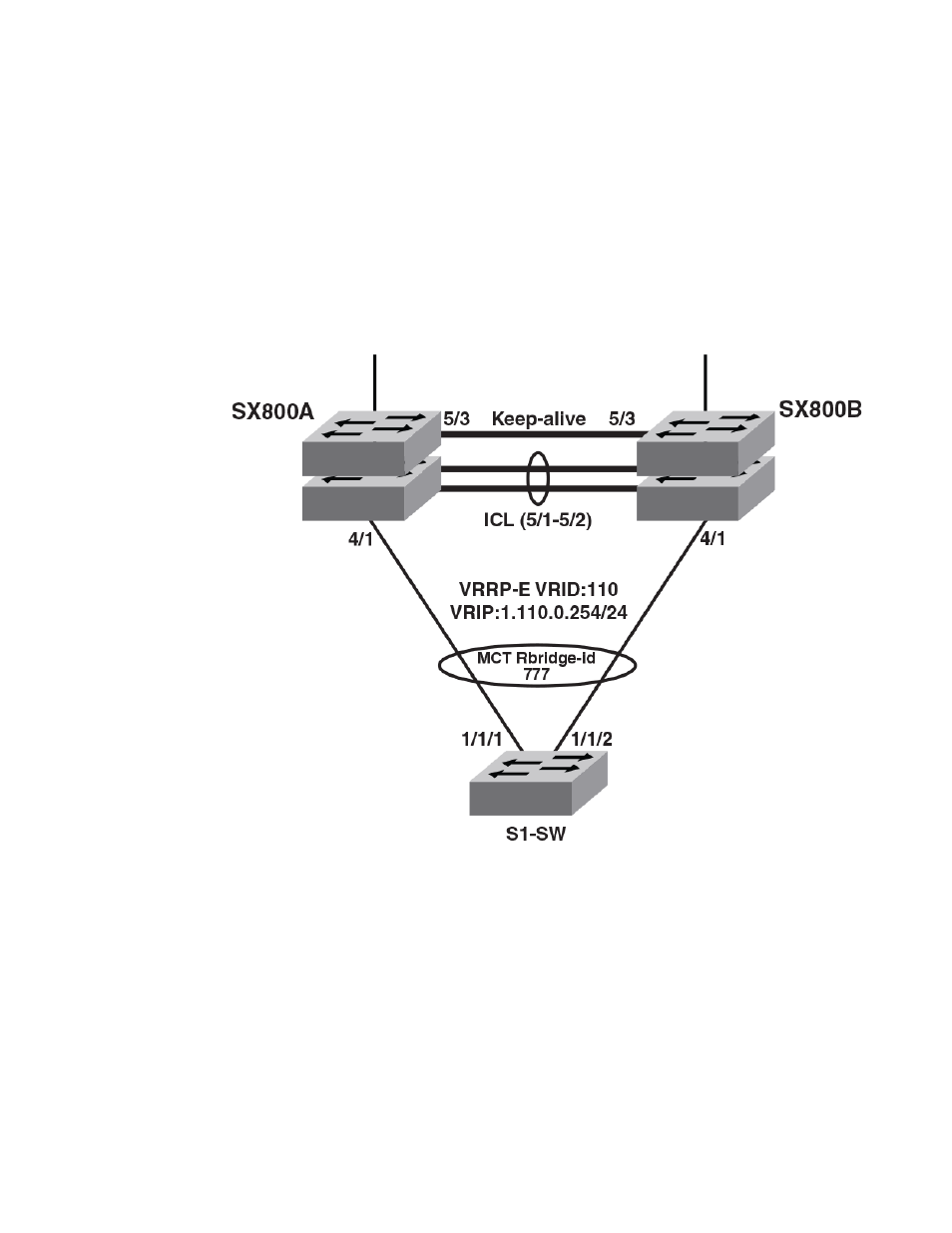

FIGURE 36 Sample MCT configuration with VRRP-E
SX800A - MCT configuration
This example presents the MCT configuration for the SX800A cluster device in Figure 35 on page 199.
!
lag lag_sx800a static id 55
ports ethe 5/1 to 5/2
primary-port 5/1
deploy
!
port-name "ICL-To_SX800B_eth5/1" ethernet 5/1
port-name "ICL-To_SX800B_eth5/2" ethernet 5/2
!
!
vlan 110 name VRRP-E by port
tagged ethe 4/1 ethe 5/1 to 5/2
router-interface ve 110
MCT configuration with VRRP-E example
