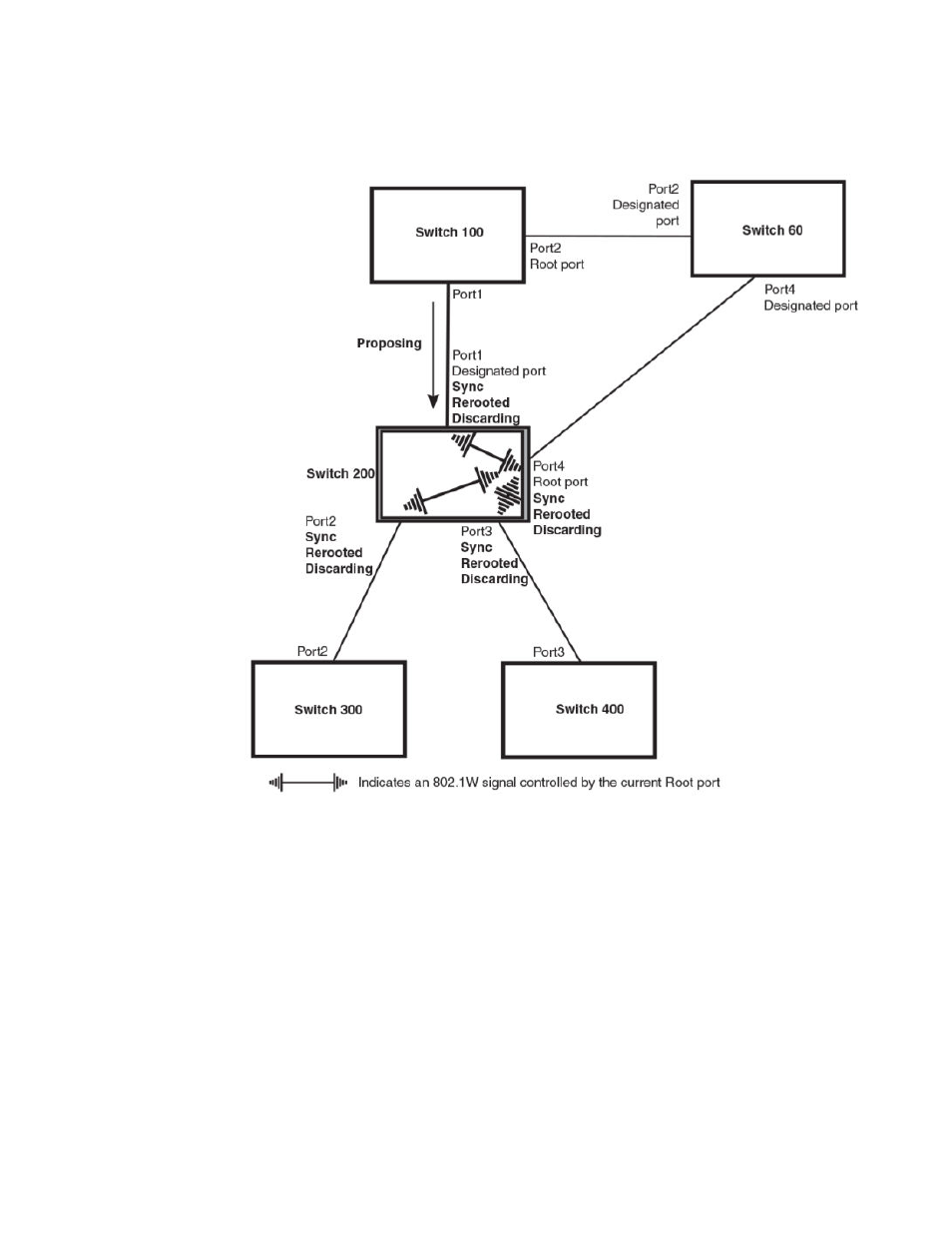

FIGURE 50 Sync and rerooted
• Synced and Agree - When all the ports on the bridge assert their synced signals, the new Root port
asserts its own synced signal and sends an RST BPDU to Port4/Switch 60 that contains an agreed
flag as shown in the following figure. The Root port also moves into a forwarding state.
Spanning Tree Protocol
286
FastIron Ethernet Switch Platform and Layer 2 Switching Configuration Guide
53-1003086-04
