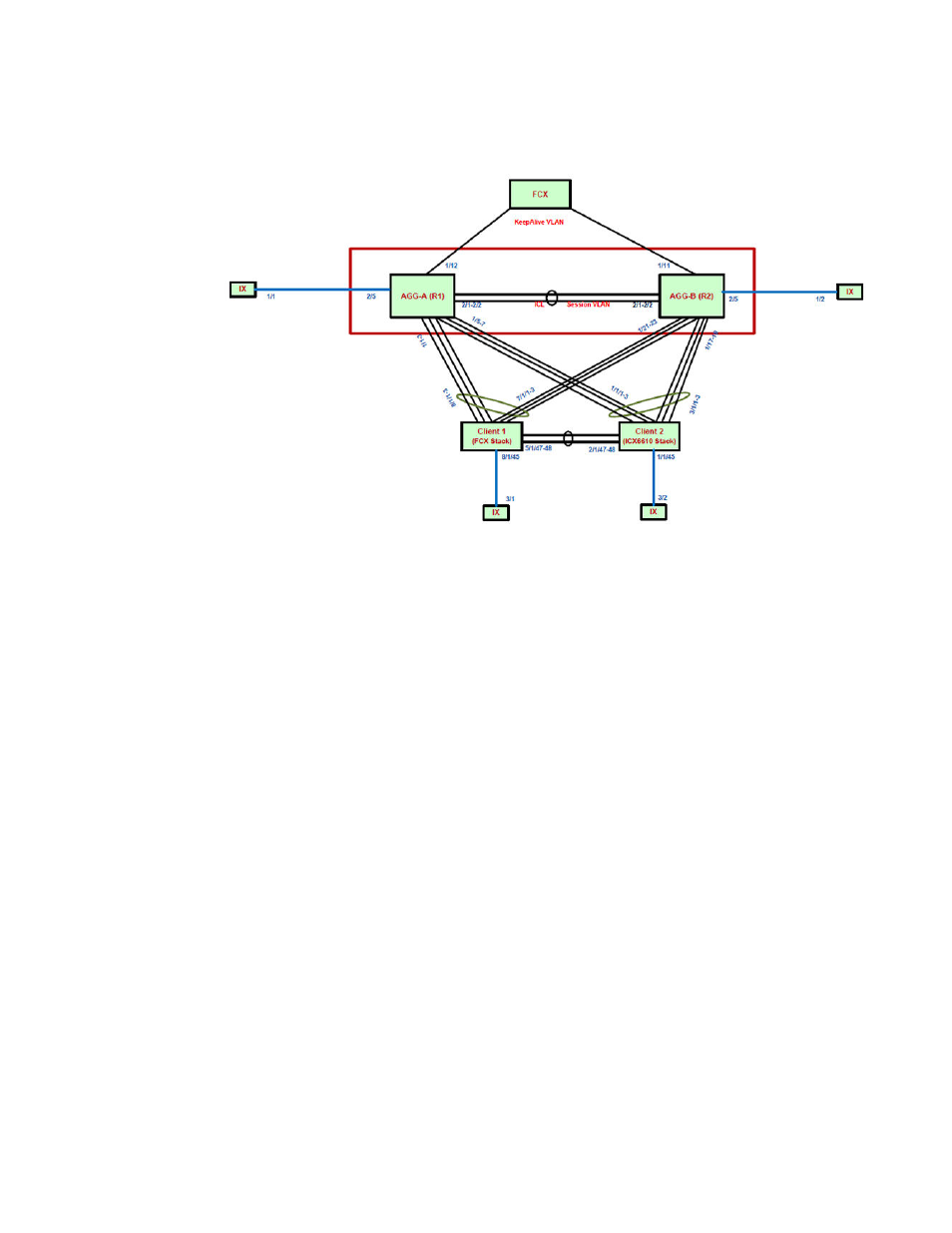

FIGURE 38 Sample network topology - Using STP in an MCT configuration

Router-1 configuration

!

lag "1" static id 1

ports ethernet 1/1 ethernet 1/3

primary-port 1/1

deploy

lag "1" static id 2

ports ethernet 1/5 ethernet 1/7

primary-port 1/5

deploy

lag "1" static id 3

ports ethernet 2/1 ethernet 2/2

primary-port 2/1

deploy

!

vlan 2 name session-vlan by port

tagged ethe 2/1 to 2/2

router-interface ve 2

!

vlan 3 name keep-alive-vlan by port

tagged ethe 1/12

router-interface ve 3

!

vlan 1905 name MAC-scaling-vlan by port

tagged ethe 1/1 to 1/3 ethe 1/5 to 1/7 ethe 1/15 to

1/16 ethe 2/1 to 2/2 ethe 2/4 ethe 3/1 ethe 3/3

!

hostname R1

!

link-keepalive ethe 1/1 to 1/3 ethe 1/5 to 1/7

hitless-failover enable

!

interface ve 2

ip address 21.1.1.1 255.255.255.0

!

interface ve 3

Multi-Chassis Trunking
