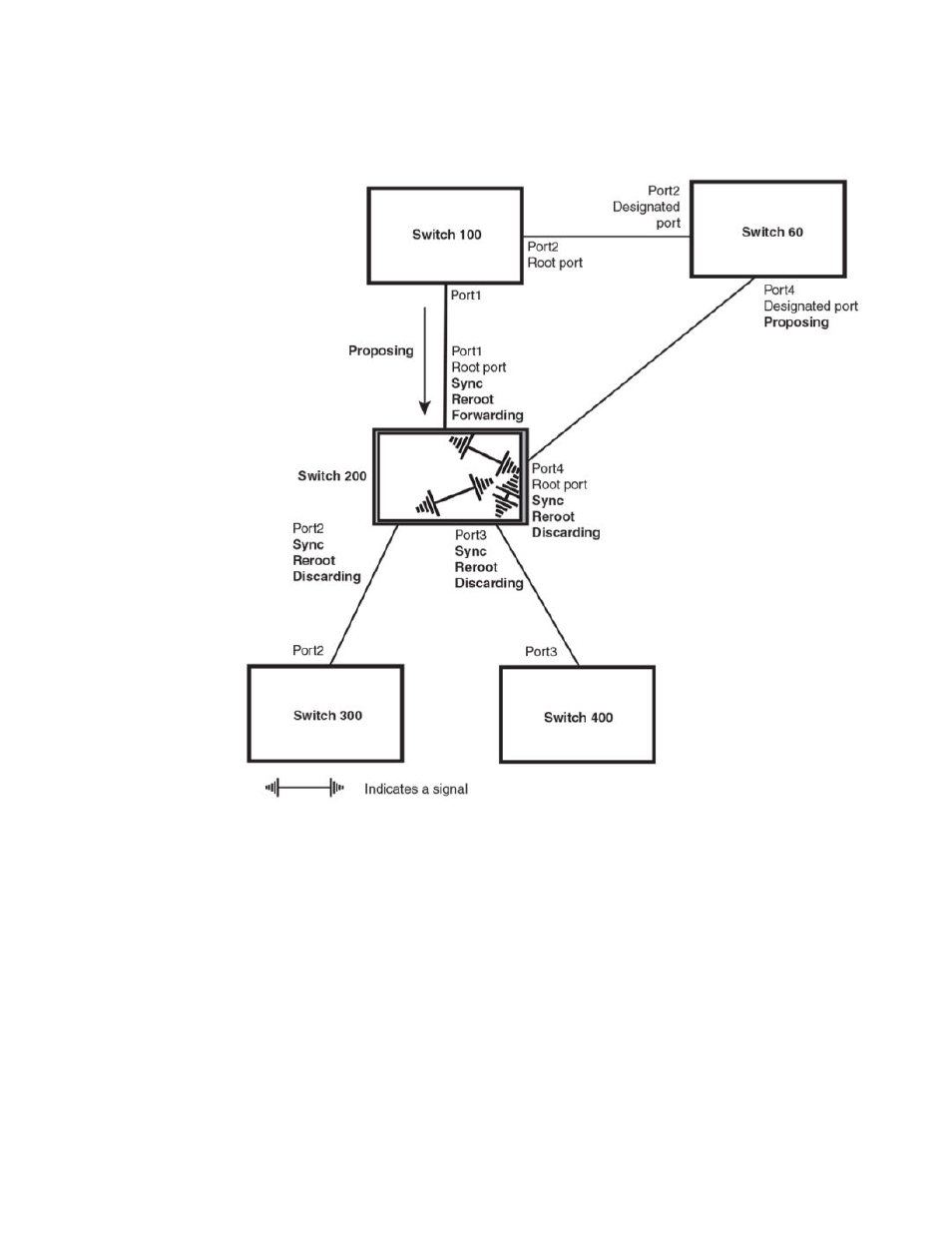

FIGURE 49 Sync and reroot

• Sync and Rerooted - When the ports on Switch 200 have completed the reroot phase, they assert

their rerooted signals and continue to assert their sync signals as they continue in their discarding
states. They also continue to negotiate their roles and states with their peer ports as shown in the
following figure.
