Brocade FastIron Ethernet Switch Platform and Layer 2 Switching Configuration Guide User Manual
Page 160

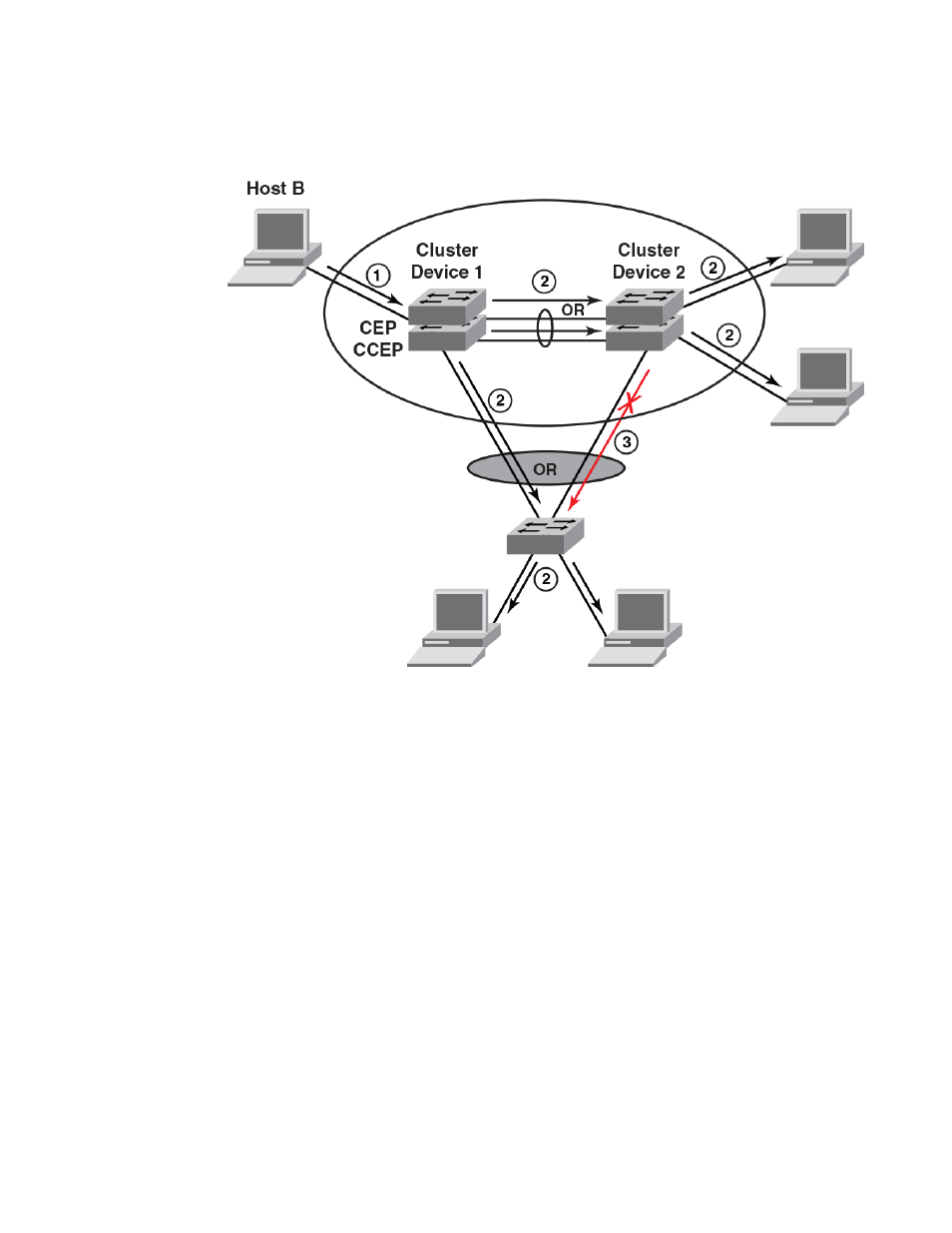

FIGURE 28 MCT data flow - BUM traffic from a CEP
Unicast traffic from a client through a CEP to another CEP or a CCEP
1. Traffic originates at the client and enters one of the cluster devices through the CEP as shown in
the following figure.
2. Depending on the destination, the traffic may pass over the ICL link to the other cluster device, or it
may be sent to a local CCEP.
3. The traffic passes out to the destination.
Multi-Chassis Trunking
160
FastIron Ethernet Switch Platform and Layer 2 Switching Configuration Guide
53-1003086-04
