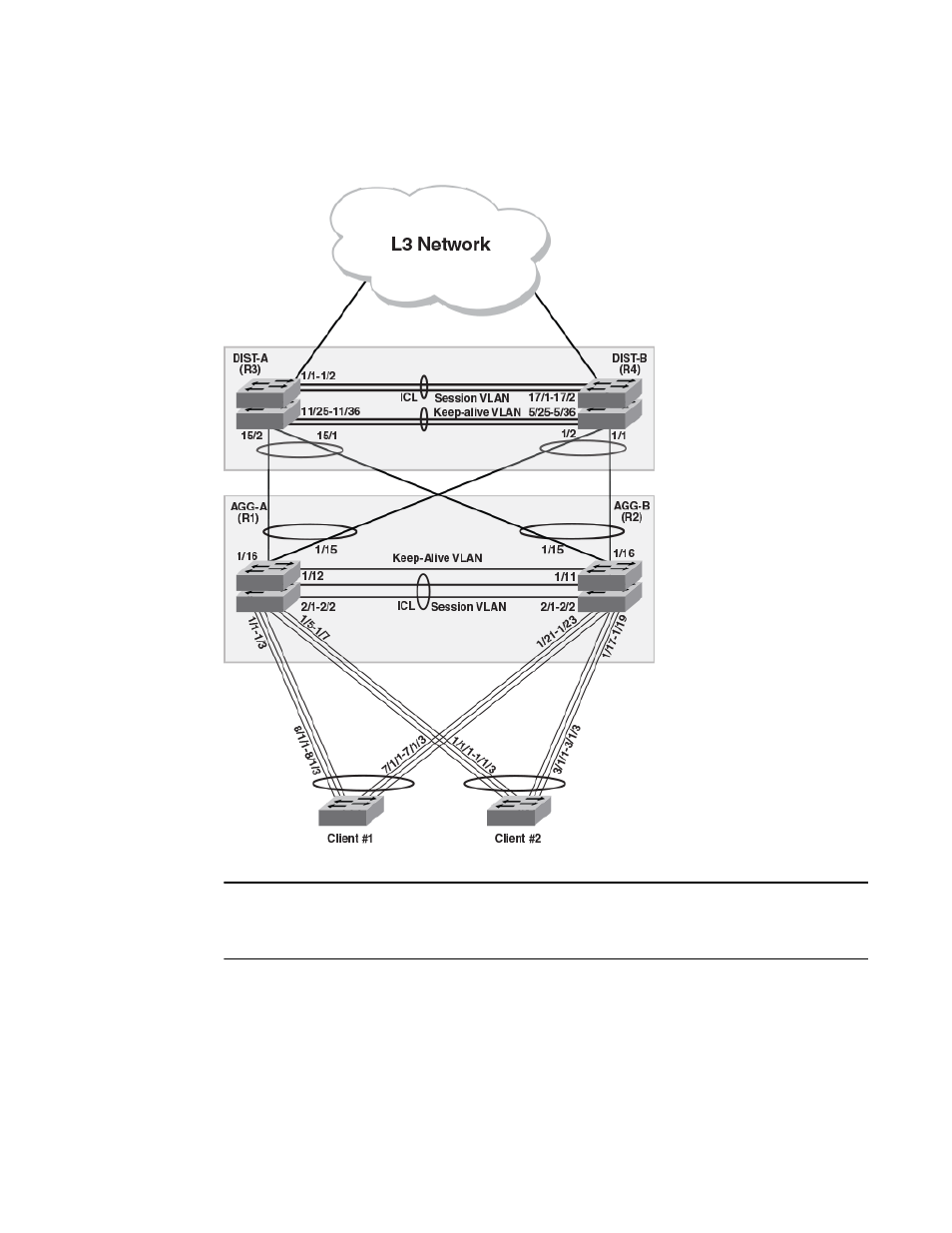

FIGURE 35 Two-level MCT configuration

NOTE
In a two-level MCT configuration using dynamic LAGs, ensure that the upper and lower clusters have
different Cluster IDs because the Cluster LACP module uses the Cluster ID as part of the LACPDU's
system ID.

The client configuration is the same as in the single-level example (refer to

Single-level MCT example

on page 195).

AGG-A (R1) - Configuration

This example presents the configuration for the AGG-A (R1) cluster device in

Figure 35

on page 199.

lag lag_agg_a_1 static id 103
