The following figure shows an example application that uses aggregated VLANs. This configuration
includes the client connections shown in

Figure 87

.

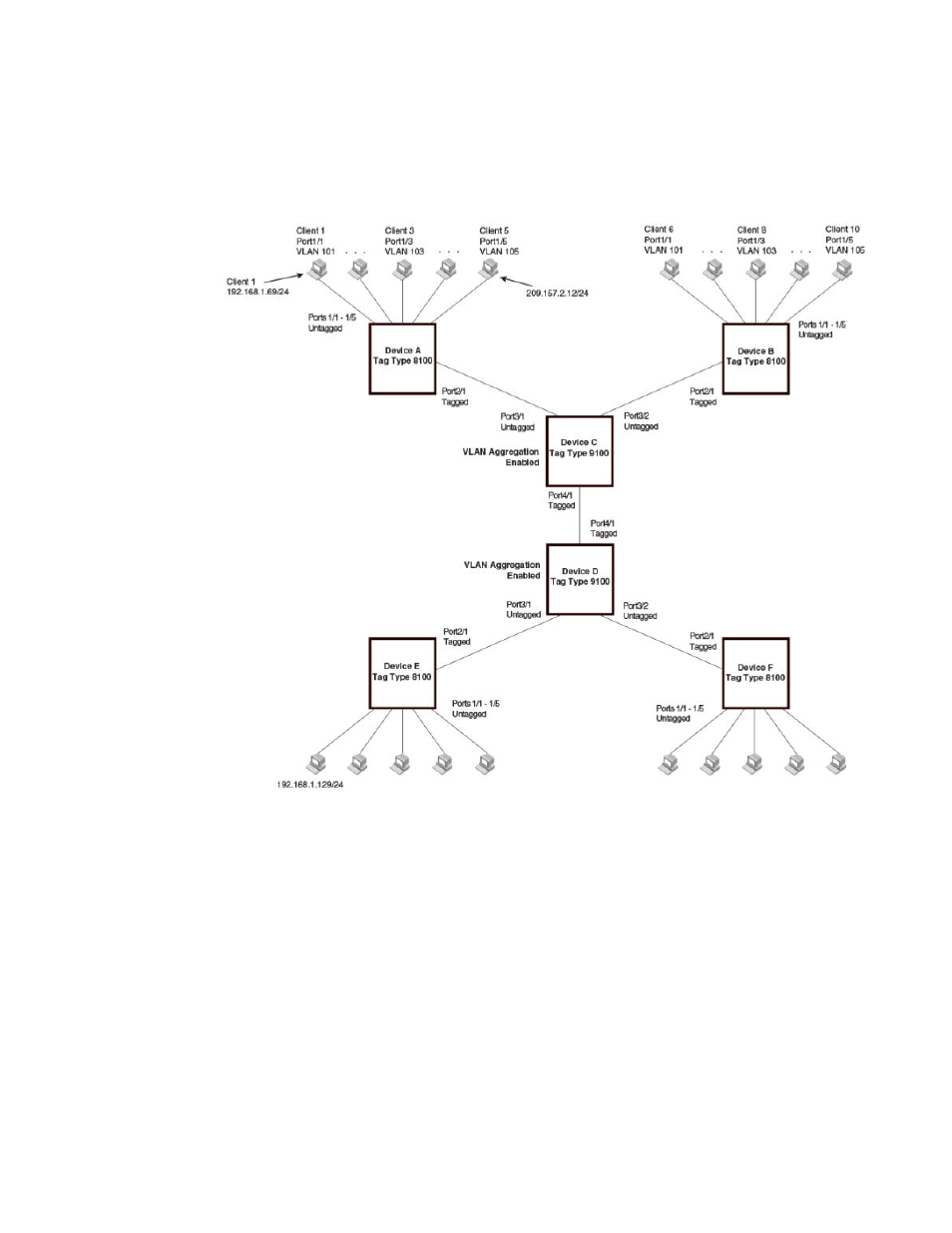

FIGURE 88 Example of a super aggregated VLAN application

In this example, a collocation service provides private channels for multiple clients. Although the same
devices are used for all the clients, the VLANs ensure that each client receives its own Layer 2
broadcast domain, separate from the broadcast domains of other clients. For example, client 1 cannot
ping client 5.

The clients at each end of a channel appear to each other to be directly connected and thus can be on
the same subnet and use network services that require connection to the same subnet. In this example,
client 1 is in subnet 192.168.1.0/24 and so is the device at the other end of client 1 channel.

Because each VLAN configured on the core devices is an aggregate of multiple client VLANs, the
aggregated VLANs greatly increase the number of clients a core device can accommodate.

This example shows a single link between the core devices. However, you can use a trunk group to add
link-level redundancy.
