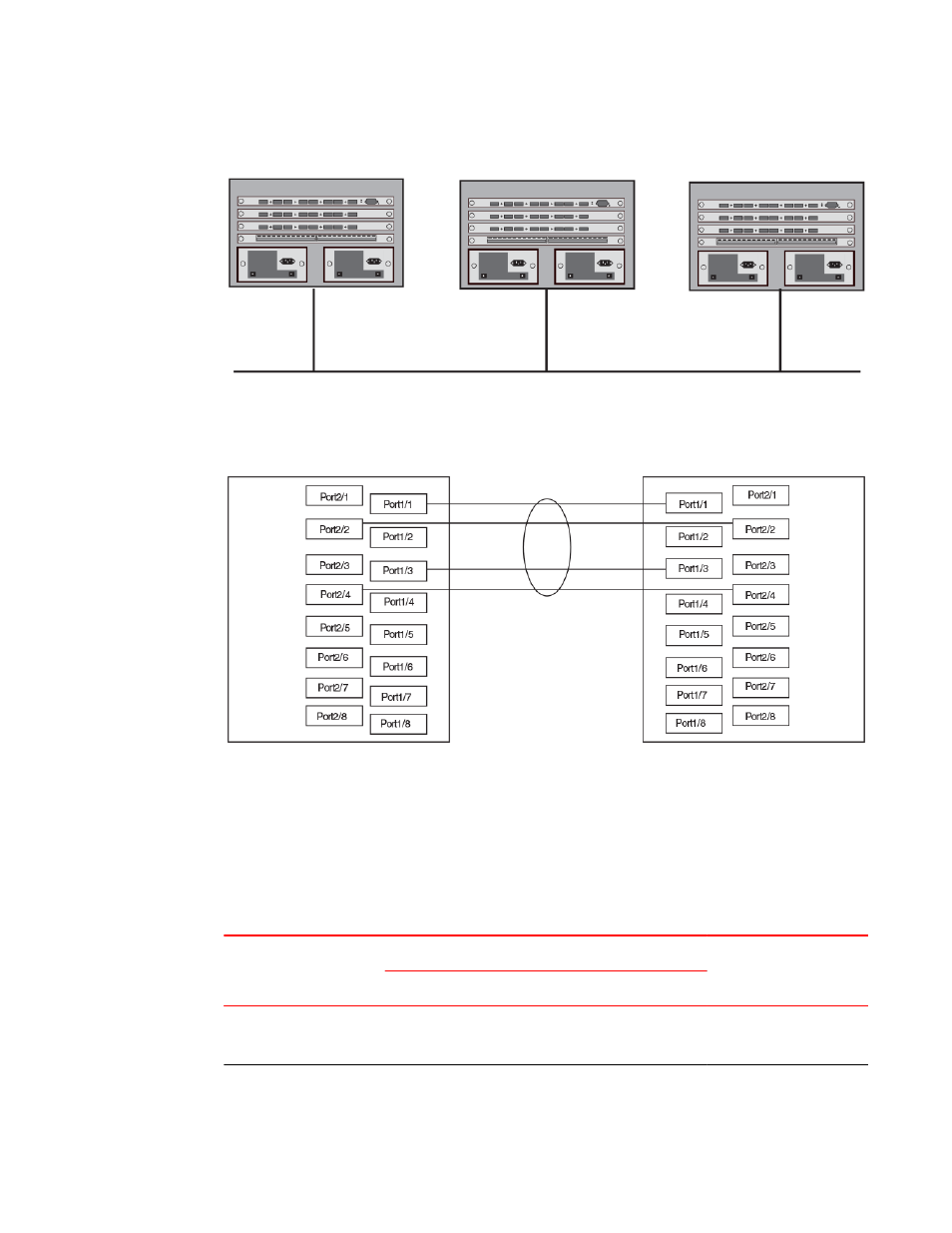

FIGURE 23 Example of 2-port LAG
The following figure shows an example of two devices connected over a 4 port LAG where the ports on
each end of the LAG are on different interface modules.
FIGURE 24 Examples of multi-slot, multi-port LAG
Maximum number of LAGs
The following table lists the maximum number of LAGs you can configure on a Brocade device and the
valid number of ports in a LAG. The table applies to static and LACP ports.
Maximum number of LAGs TABLE 27
Model Maximum number of LAGs Valid number of ports in
a group
Static LACP
FCX624
FCX648
124 124 1, 2, 3, 4, 5, 6, 7, or 8
Maximum number of LAGs
