Delta Electronics AC Motor Drive VFD-E User Manual
Page 48
Chapter 2 Installation and Wiring|
Revision June 2008, 04EE, SW--PW V1.11/CTL V2.11
2-21
The specification for the control terminals
RS-485 port
10V
MI1 MI2 MI3 MI4 MI5 MI6
DCM 24V
DCM
ACM AVI ACI
AFM MCM MO1
RA
RB
RC

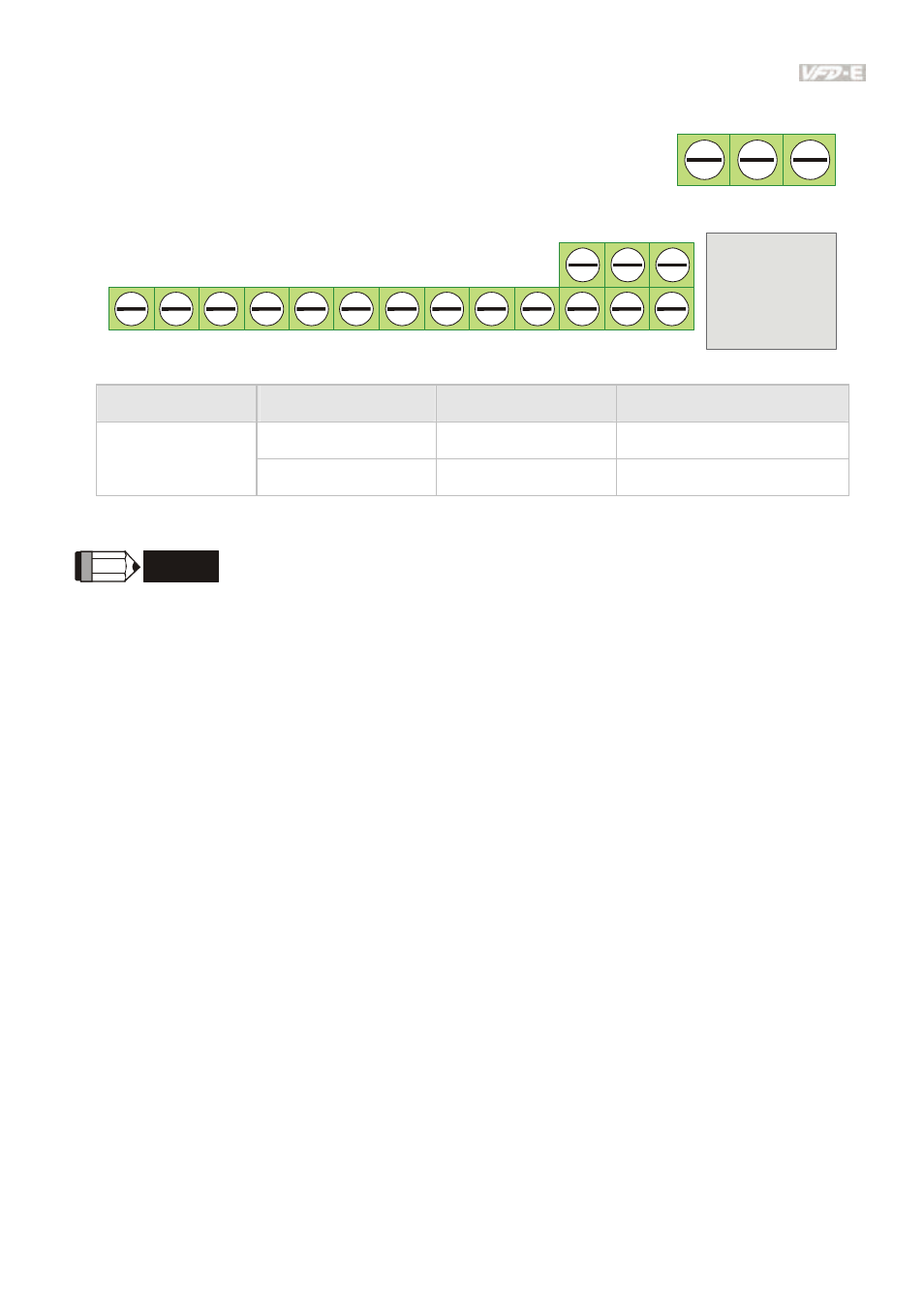

The position of the control terminals
Terminals 2
Terminals 1
Frame
Control Terminals
Torque
Wire
Terminals 1
5 kgf-cm (4.4 in-lbf)
12-24 AWG (3.3-0.2mm
2
)
A, B, C
Terminals 2
2 kgf-cm (1.7 in-lbf)
16-24 AWG (1.3-0.2mm
2
)
NOTE
Frame A: VFD002E11A/21A/23A, VFD004E11A/21A/23A/43A, VFD007E21A/23A/43A,
VFD015E23A/43A, VFD002E11C/21C/23C, VFD004E11C/21C/23C/43C, VFD007E21C/23C/43C,
VFD015E23C/43C, VFD002E11T/21T/23T, VFD004E11T/21T/23T/43T, VFD007E21T/23T/43T,
VFD015E23T/43T, VFD002E11P/21P/23P, VFD004E11P/21P/23P/43P, VFD007E21P/23P/43P,
VFD015E23P
Frame B: VFD007E11A, VFD015E21A, VFD022E21A/23A/43A, VFD037E23A/43A, VFD007E11C,
VFD015E21C, VFD022E21C/23C/43C, VFD037E23C/43C
Frame C: VFD055E23A/43A, VFD075E23A/43A, VFD110E43A, VFD055E23C/43C,
VFD075E23C/43C, VFD110E43C
