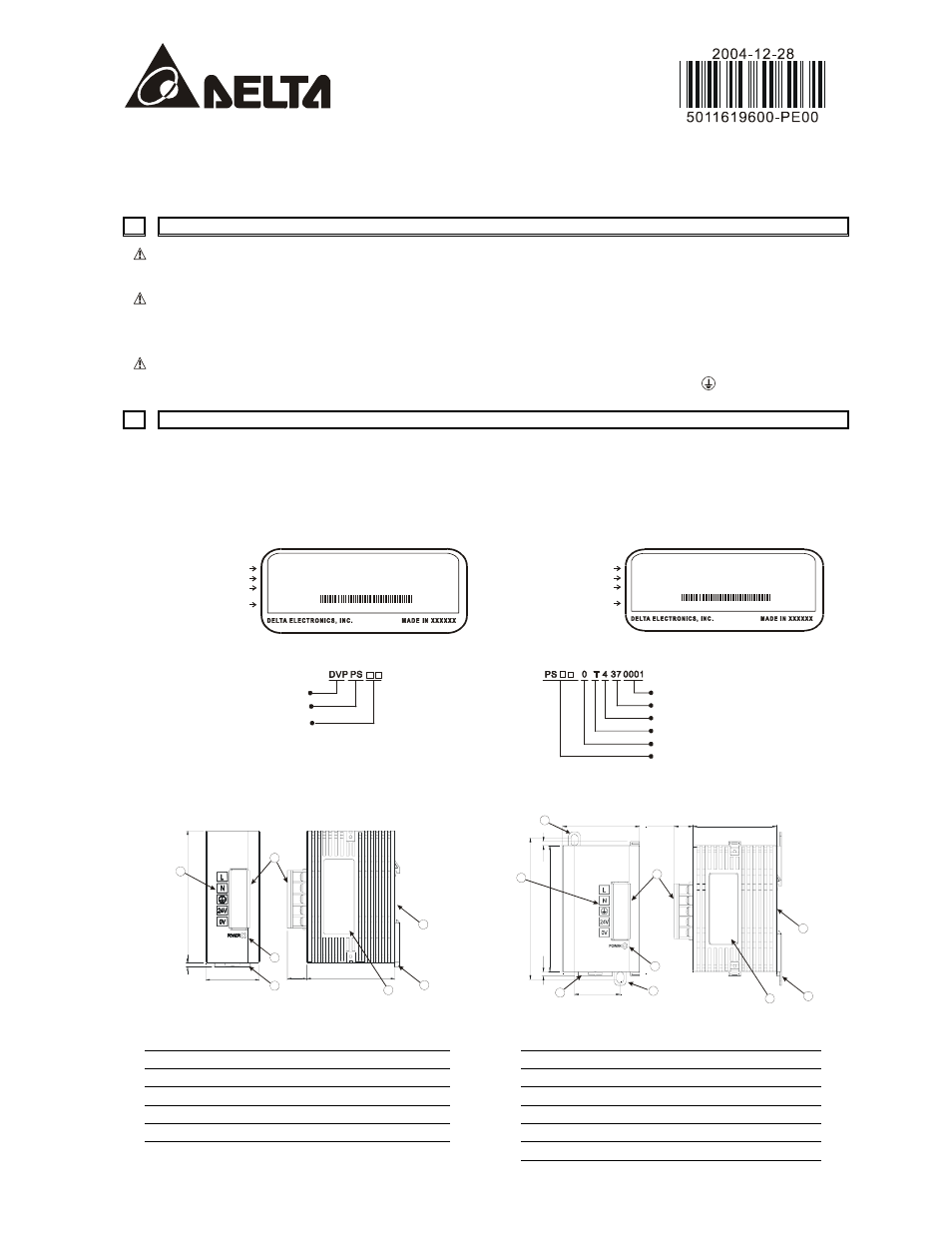

DVPPS01
DVPPS02
POWER OUTPUT MODULE
1 Warning
This instruction will be helpful in the installation, electronic specification, function specification and troubleshooting of the DVPPS01 and
DVPPS02.
This is an OPEN TYPE DVPPS series. The DVPPS series should be kept in an enclosure away from airborne dust, high humidity,
electric shock risk and vibration. Also, it is equipped with protective methods such as some special tools or keys to open the enclosure,
so as to avoid the hazard to users and the damage to the DVPPS series.
Never connect the AC main circuit power supply to any of the output terminals, as it will damage the DVPPS series. Check all the wiring
prior to power up. To avoid any electromagnetic noise, make sure the DVPPS series is properly grounded .
2 Introduction
2.1 Model Explanation
Thank you for choosing DELTA DVP series. DVPPS series is a power module with 2 types that sorted by output circuit. 1. PS01 provides
24VDC and 1A current for output power. 2. PS02 provides 24VDC and 2A current for output power. DVPPS series is only used for Delta DVP
series. DVPPS series is separated from the PLC MPU for better space utilization and easier installation.
PS01
Nameplate Explanation
Model
Input Power Supply Spec.
Output Module Spec.
Barcode and Serial Number
MODEL : DVPPS01
INPUT : 100~240VAC 50 / 60Hz
OUTPUT : 24Vdc 1.0A
PS 01 0T4360 001
PS02
Model
Input Power Supply Spec.
Output Module Spec.
Barcode and Serial Number
MODEL : DVPPS02
INPUT : 100~240VAC 50 / 60Hz
OUTPUT : 24Vdc 2.0A
PS 02 0 T4370001
Model Name
Series name
Power module
Output current
Serial Number
Production number
Production weeks
Production year (2004)
Production factory
Version
Production model
2.2 Product Profile and Outline
PS01
3
90
13.3 60 36.5
DVPPS01
1
2
3 3
4
5
6
Unit: mm
PS02
13.3 60
10
0
32.5
90
55
3
3
DVPPS02
1
2
3 3
4
5
6
7
7
Unit: mm
1 Power LED 1 Power LED
2 Output/input terminal (fixed terminal) 2 Output/input terminal (fixed terminal)
3 DIN rail clip 3 DIN rail clip
4 DIN rail track (35mm) 4 DIN rail track (35mm)
5 I/O terminal label 5 I/O terminal label
6 Nameplate 6 Nameplate
7 Mounting holes
