Appendix B Accessories|
Revision June 2008, 04EE, SW--PW V1.11/CTL V2.11
B-27

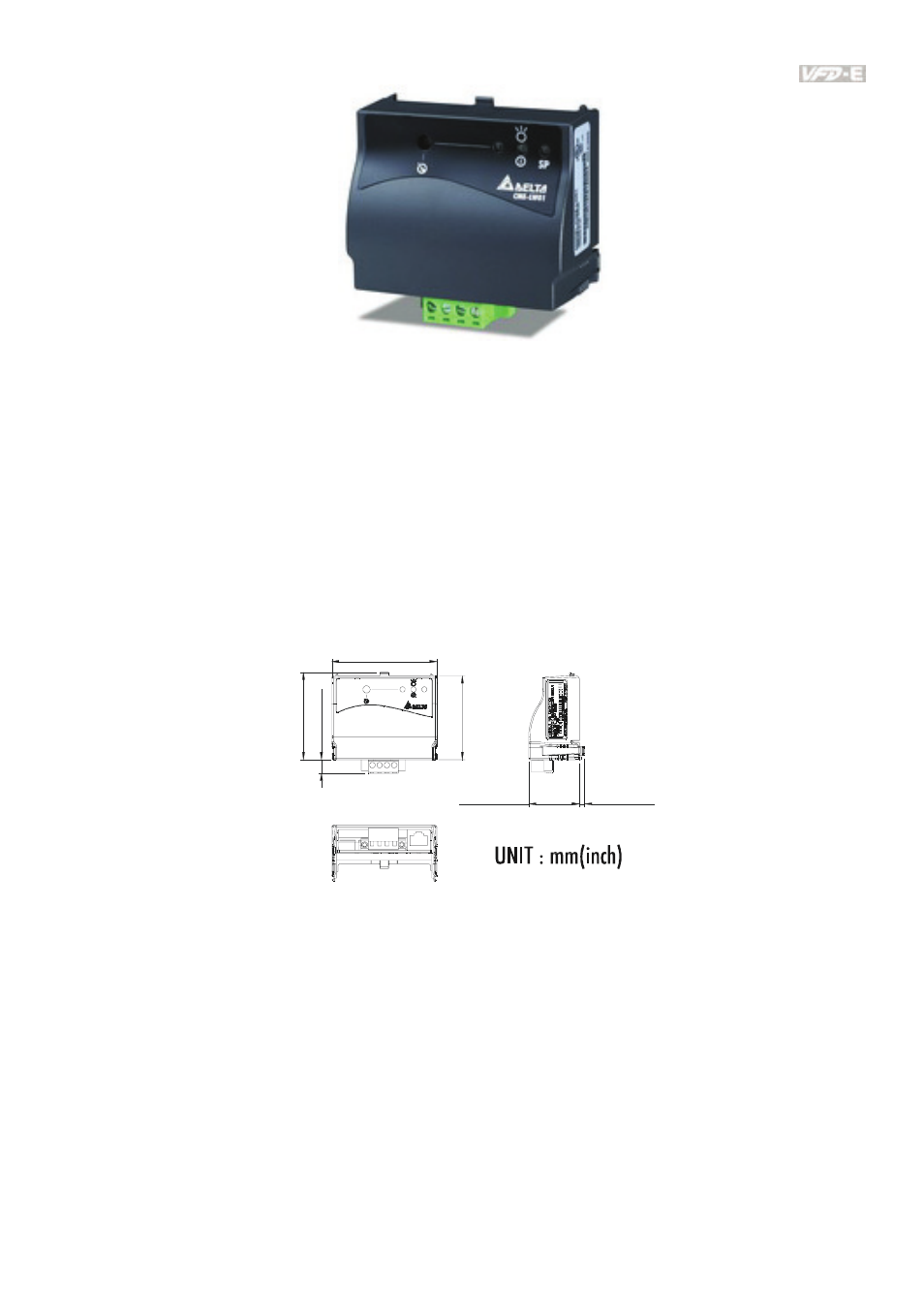

B.10.2.1 Introduction
Device CME-LW01 is used for communication interface between Modbus and LonTalk. CME-
LW01 needs be configured via LonWorks network tool first, so that it can perform the function
on LonWorks network. No need to set CME-LW01 address.
This manual provides instructions for the installation and setup for CME-LW01 that is used to
communicate with Delta VFD-E (firmware version of VFD-E should conform with CME-LW01
according to the table below) via LonWorks Network.
B.10.2.2 Dimensions
5
7.
3
[2
.2
6
]
72.2 [2.84]
59
.7
[2
.3
5
]
9.
5
[0
.3
7]
3.5 [0.14]
34.8 [1.37]
SP
CME-LW 01
B.10.2.3 Specifications
Power supply: 16-30VDC, 750mW
Communication:
Modbus in ASCII format, protocol: 9600, 7, N, 2
LonTalk:
free topology with FTT-10A 78 Kbps.
LonTalk terminal:
4-pin terminals, wire gauge: 28-12 AWG, wire strip length: 7-8mm
RS-485 port: 8 pins with RJ-45
