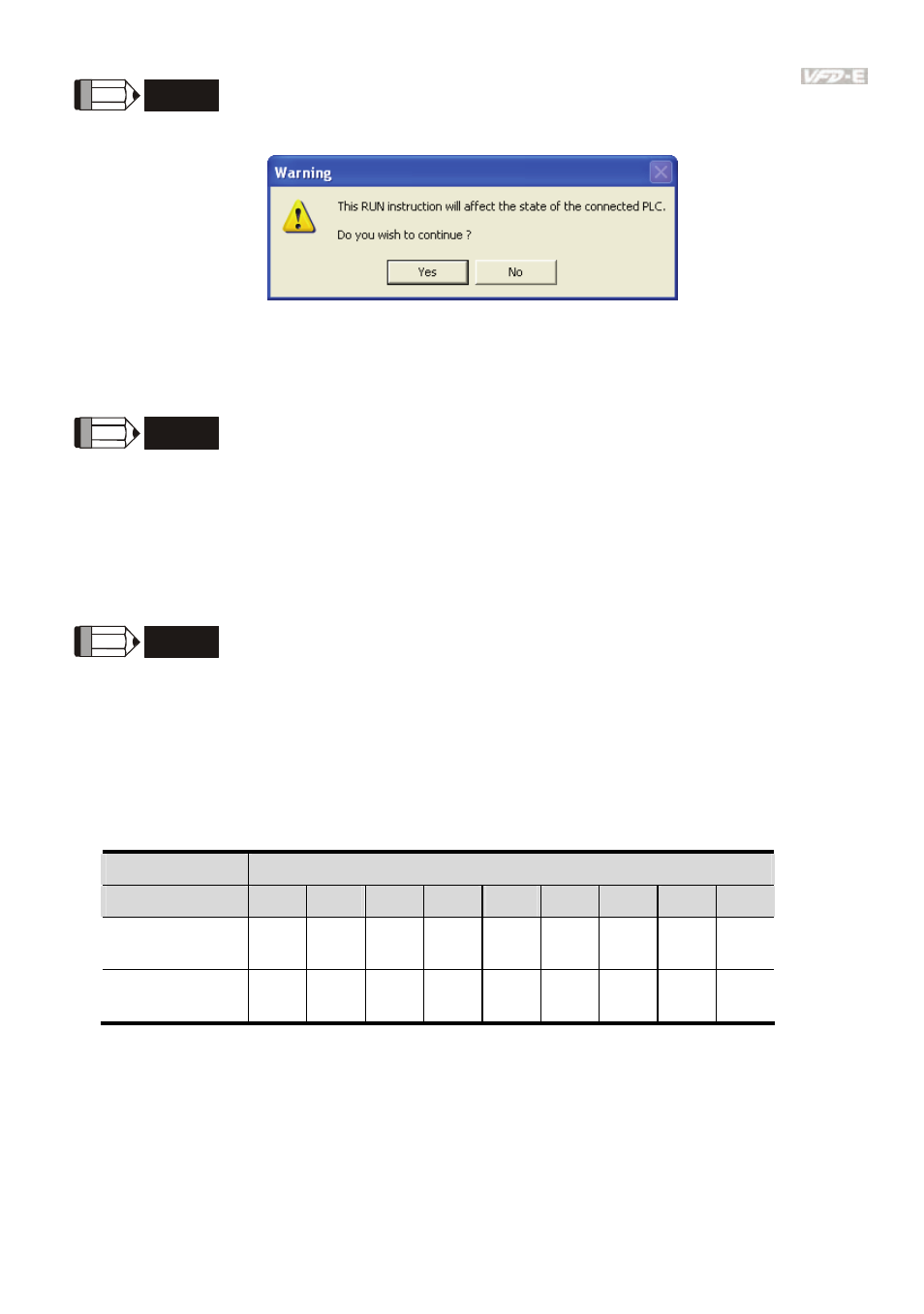

Appendix D How to Use PLC Function|

Revision June 2008, 04EE, SW--PW V1.11/CTL V2.11

D-3

NOTE

When power on after power off, the PLC status will be in “PLC1”.

4.

When you are in “PLC2”, please remember to change to “PLC1” when finished to prevent

anyone modifying PLC program.

NOTE

When output/input terminals (MI1~MI9, Relay1~Relay 4, MO1~MO4) are used in PLC program, they

cannot be used in other places. For example, When Y0 in PLC program is activated, the

corresponding output terminals Relay (RA/RB/RC) will be used. At this moment, parameter 03.00

setting will be invalid. Because the terminal has been used by PLC.

NOTE

The PLC corresponding input points for MI1 to MI6 are X0 to X5. When extension card are added, the

extension input points will be numbered from X06 and output points will start from Y2 as shown in

chapter D.2.2.

D.2.2 Device Reference Table

Device

X

ID

0

1

2

3

4

5

6

7

10

Terminals of AC

Drives

MI1

MI2

MI3

MI4

MI5

MI6 -- -- --

3IN/3OUT Card

(EME-D33A)

-- -- -- -- -- -- MI7

MI8

MI9
