Delta Electronics AC Motor Drive VFD-E User Manual
Page 26
Chapter 1 Introduction|
Revision June 2008, 04EE, SW--PW V1.11/CTL V2.11
1-13

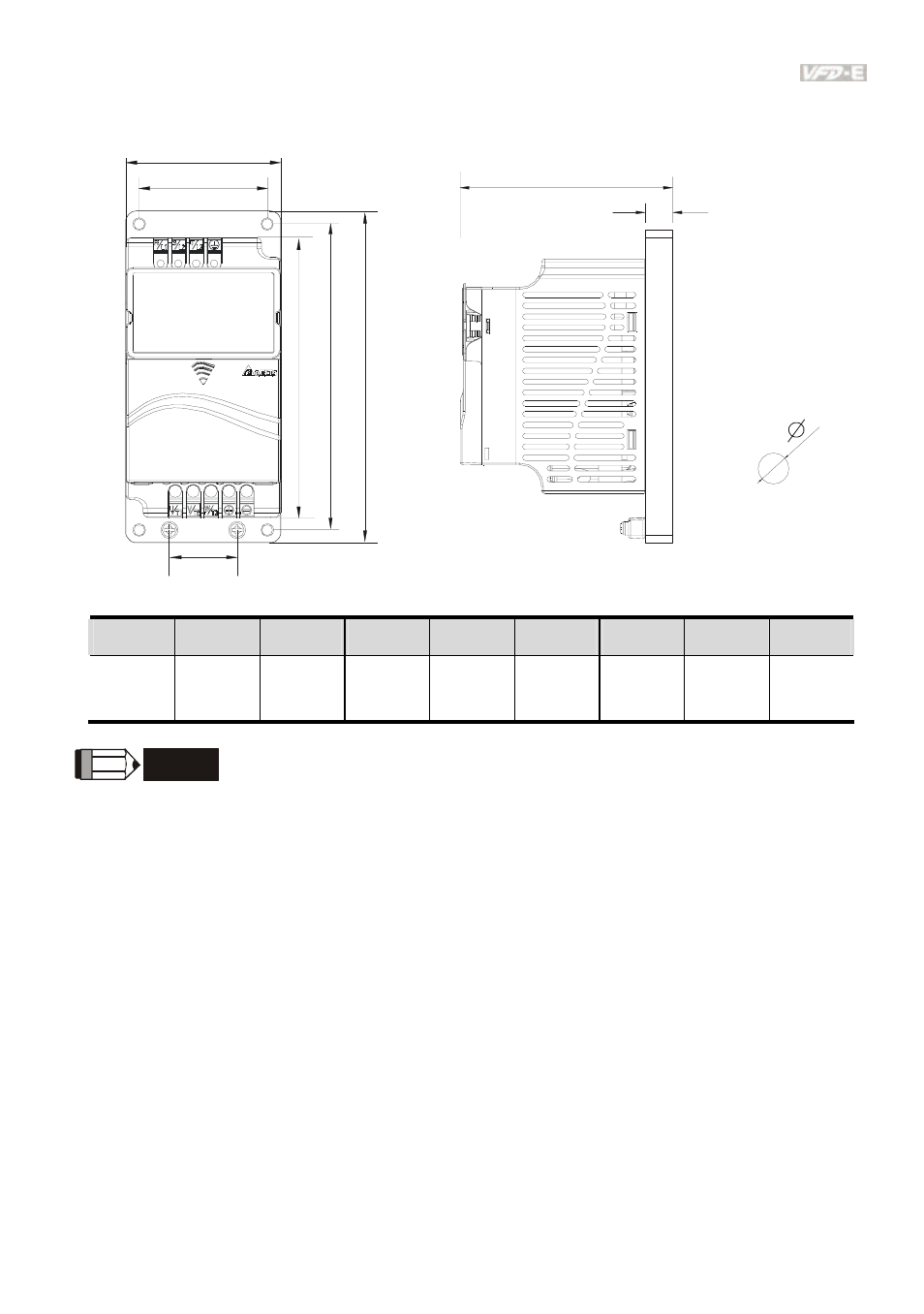

Dimensions for VFD-E-P series
W
W1
H2
H
D
D1
W2
H1
Unit: mm [inch]
W
W1
W2
H
H1
H2
D
D1
Ø
72.0
[2.83]
56.0
[2.20]
30.0
[1.18]
155.0
[6.10]
143.0
[5.63]
130.0
[5.12]
111.5
[4.39]
9.5
[0.37]
5.3
[0.21]
NOTE
Frame A: VFD002E11P/21P/23P, VFD004E11P/21P/23P/43P, VFD007E11P/21P/23P/43P,
VFD015E23P/43P
