B.9.5 speed feedback card, B.10 fieldbus modules, B.10.1 devicenet communication module (cme-dn01) – Delta Electronics AC Motor Drive VFD-E User Manual
Page 261: B.10.1.1 panel appearance and dimensions
Appendix B Accessories|
B-24
Revision June 2008, 04EE, SW--PW V1.11/CTL V2.11

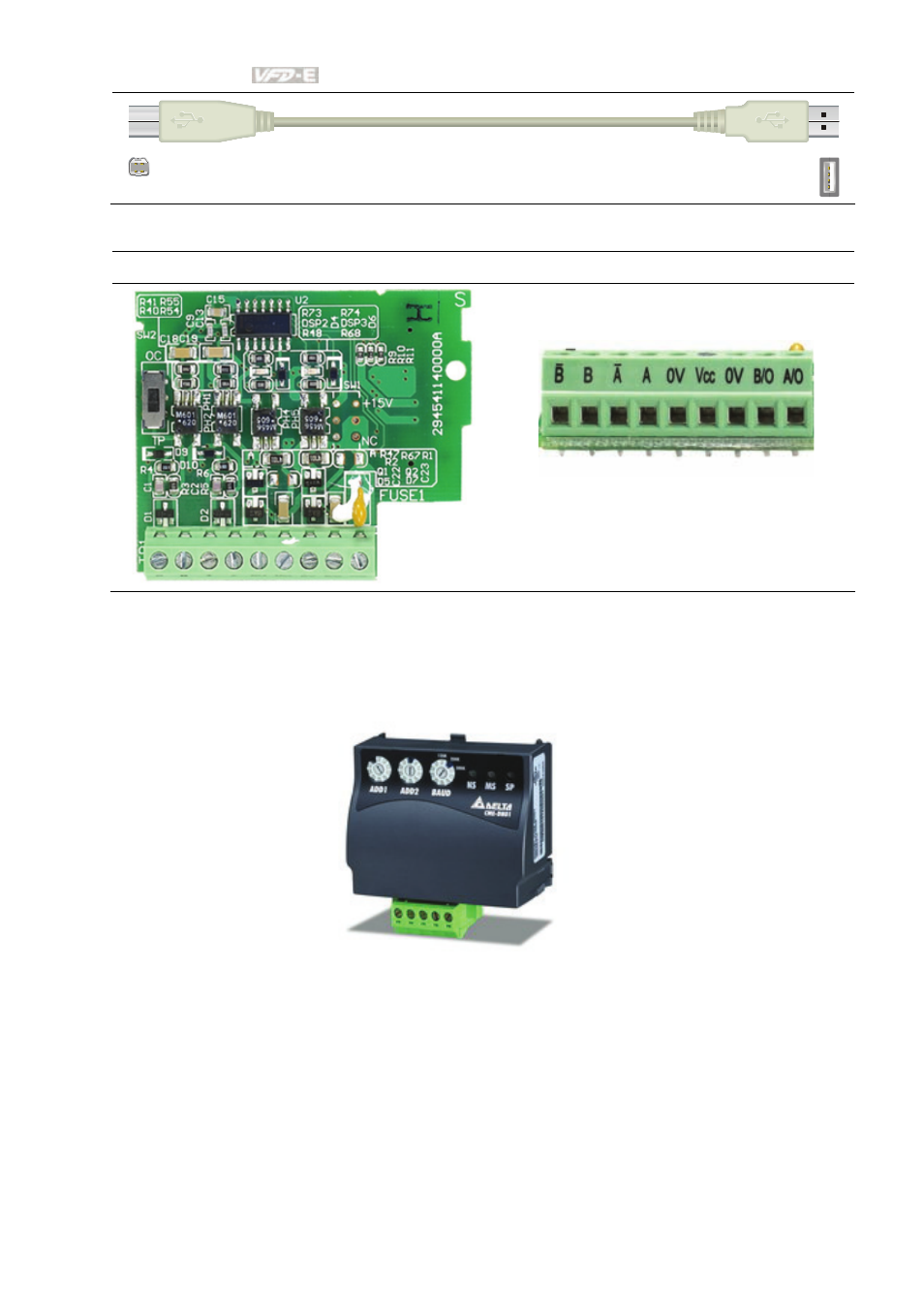

connect to extension card
connect to PC
B.9.5 Speed Feedback Card
EME-PG01
B.10 Fieldbus Modules
B.10.1 DeviceNet Communication Module (CME-DN01)
B.10.1.1 Panel Appearance and Dimensions
1. For RS-485 connection to VFD-E 2. Communication port for connecting DeviceNet
network 3. Address selector 4. Baud rate selector 5. Three LED status indicators for monitor.
(Refer to the figure below)
