Delta Electronics AC Motor Drive VFD-E User Manual
Page 120
Chapter 4 Parameters|
Revision June 2008, 04EE, SW--PW V1.11/CTL V2.11
4-67
03.11
Brake Release Frequency
Unit: 0.01
Settings
0.00 to 600.0Hz
Factory Setting: 0.00
03.12
Brake Engage Frequency
Unit: 0.01
Settings
0.00 to 600.0Hz
Factory Setting: 0.00
These two parameters are used to set control of mechanical brake via the output terminals
(Relay or MO1) when Pr.03.00~03.01 is set to 21. Refer to the following example for details.

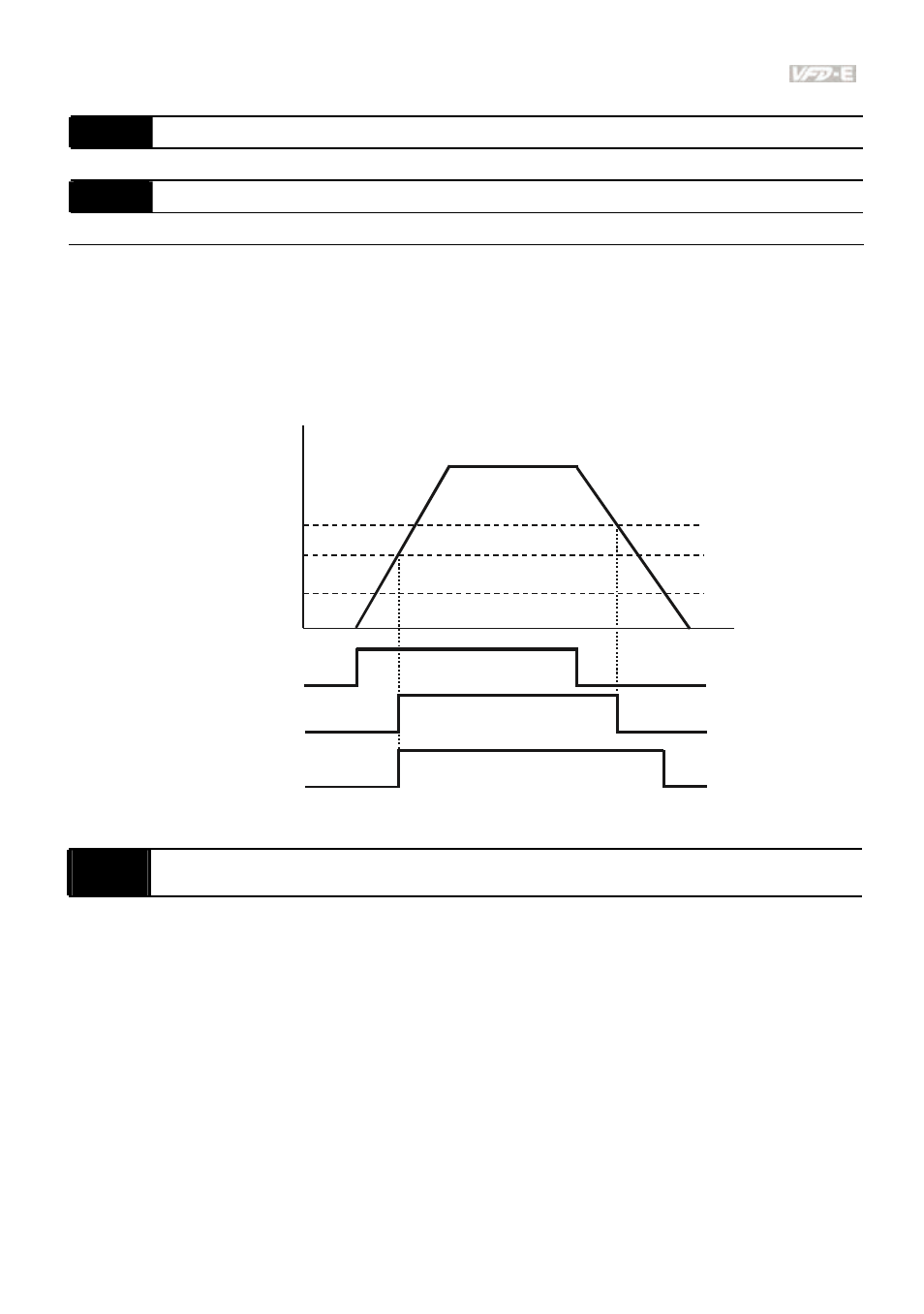

Example:
1. Case 1: Pr.03.12
≥ Pr.03.11
2. Case 2: Pr.03.12
≤ Pr.03.11
Case 1: Pr.03.12
Case 2: Pr.03.12
Pr. 03.11
Frequency
Output
Time
Run/Stop
Case 1: MO1=21
Case 2: MO1=21
Note: MO1: setting value of Pr.03.01
03.13
Display the Status of Multi-function Output Terminals
Settings
Read Only
Factory setting: ##
Bit0: RLY Status
Bit1: MO1 Status
Bit2: MO2/RA2 Status
Bit3: MO3/RA3 Status
Bit4: MO4/RA4 Status
Bit5: MO5/RA5 Status
