Delta Electronics AC Motor Drive VFD-E User Manual
Page 18
Chapter 1 Introduction|
Revision June 2008, 04EE, SW--PW V1.11/CTL V2.11
1-5

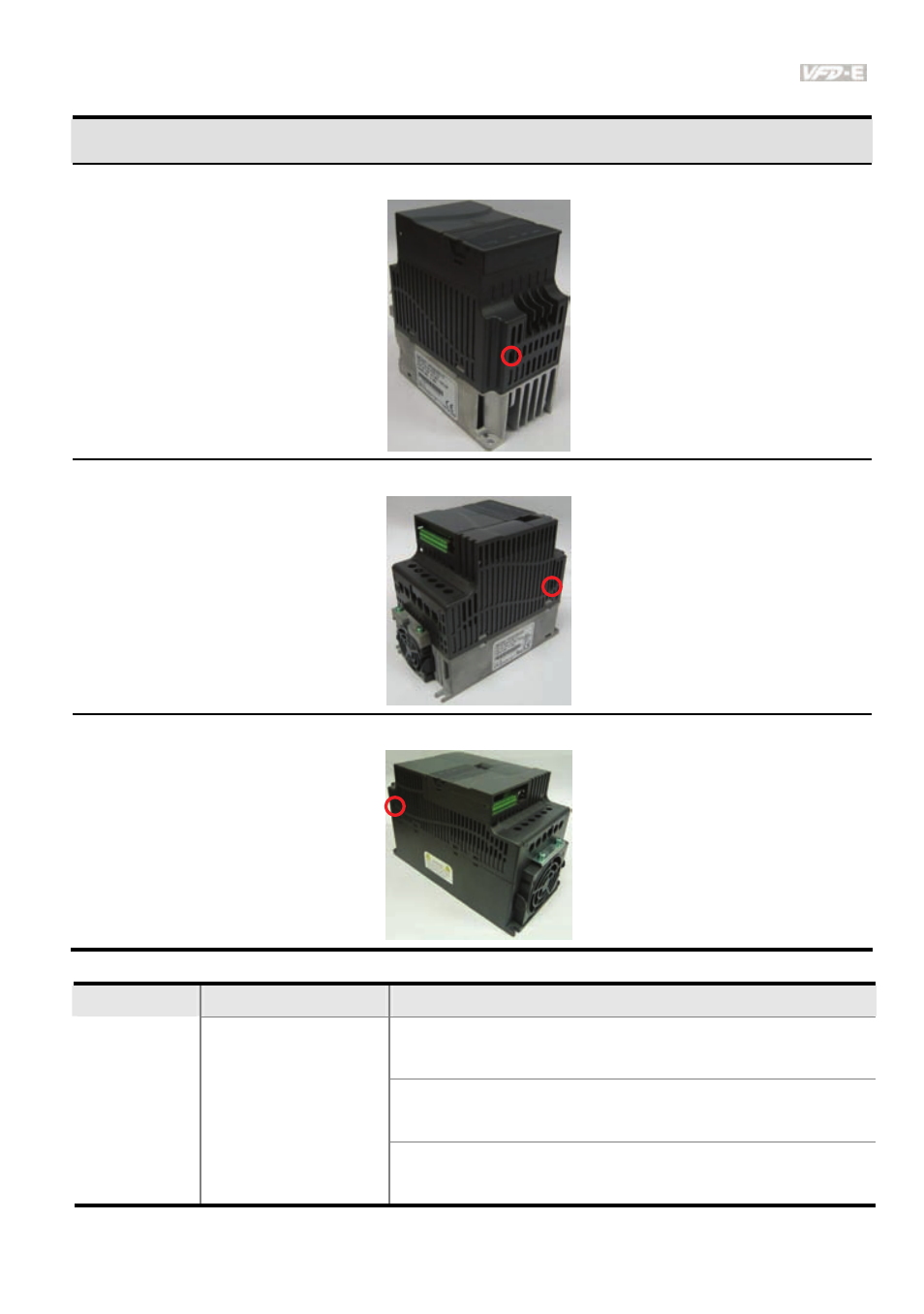

RFI Jumper Location
Frame A: near the output terminals (U/T1, V/T2, W/T3)
Frame B: above the nameplate
Frame C: above the warning label
Frame
Power range
Models
VFD002E11A/21A/23A, VFD004E11A/21A/23A/43A,
VFD007E21A/23A/43A, VFD015E23A/43A
VFD002E11C/21C/23C, VFD004E11C/21C/23C/43C,
VFD007E21C/23C/43C, VFD015E23C/43C
A
0.25-2hp (0.2-1.5kW)
VFD002E11T/21T/23T, VFD004E11T/21T/23T/43T,
VFD007E21T/23T/43T, VFD015E23T/43T
