B.10.4 cme-cop01 (canopen), B.10.4.1 product profile, B.10.4.2 specifications – Delta Electronics AC Motor Drive VFD-E User Manual
Page 268
Appendix B Accessories|
Revision June 2008, 04EE, SW--PW V1.11/CTL V2.11
B-31
Address Meaning
1..0x7D Valid
PROFIBUS
address
0 or 0x7E..0xFE
Invalid PROFIBUS address
B.10.4 CME-COP01 (CANopen)
CME-COP01 CANopen communication module is specifically for connecting to CANopen
communication module of Delta VFD-E AC motor drive.

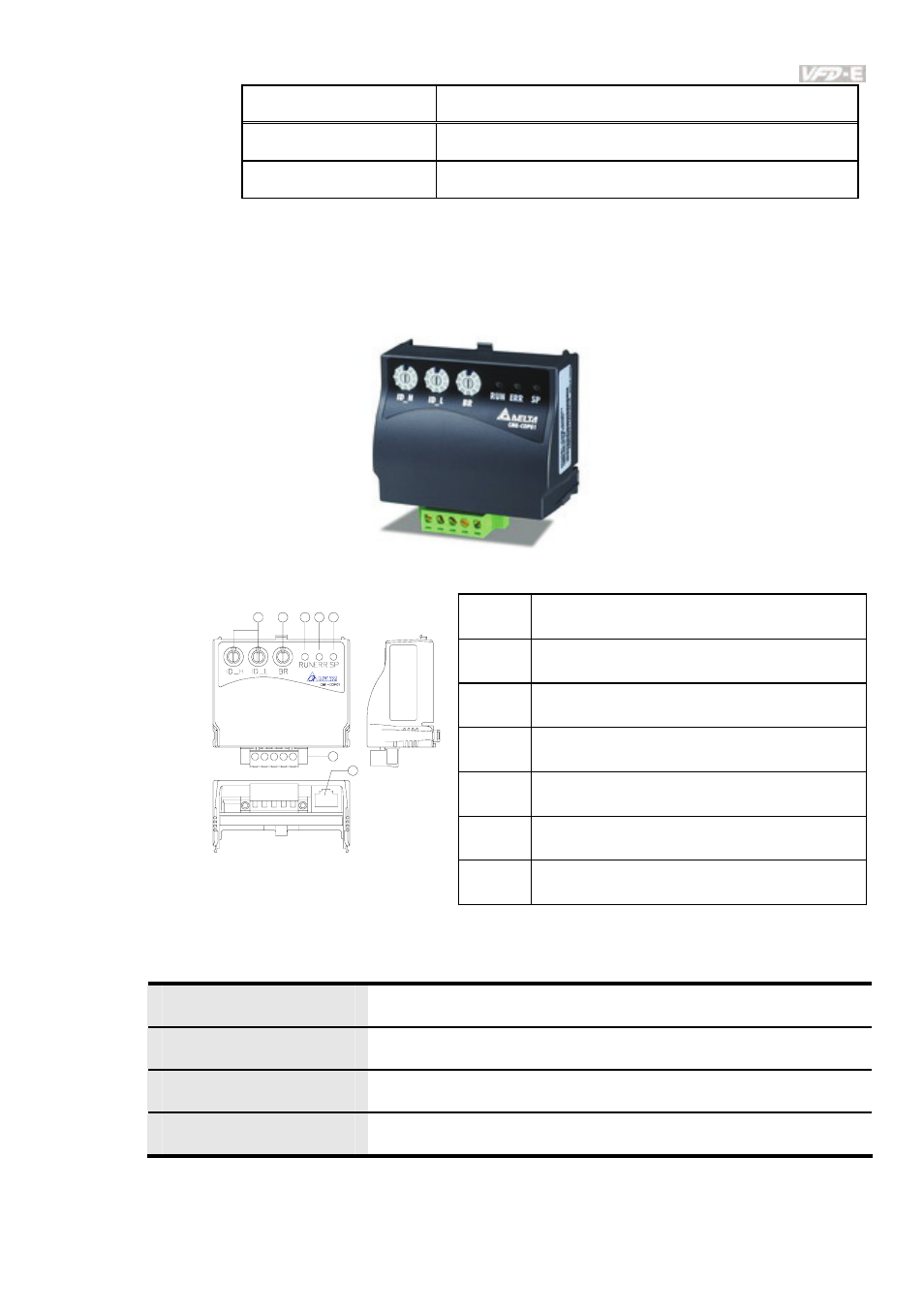

B.10.4.1 Product Profile
c
COM port
d
CANopen connection port
e
RUN indicator
f
ERROR indicator
g
SP (Scan Port) indicator
h
Baud rate switch
1
2
7
6
3
4
5
Unit: mm
i
Address switch
B.10.4.2 Specifications
CANopen Connection
Interface
Pluggable connector (5.08mm)
Transmission method
CAN
Transmission cable
2-wire twisted shielded cable
Electrical isolation
500V DC
