Chapter 1 Introduction|
Revision June 2008, 04EE, SW--PW V1.11/CTL V2.11
1-3

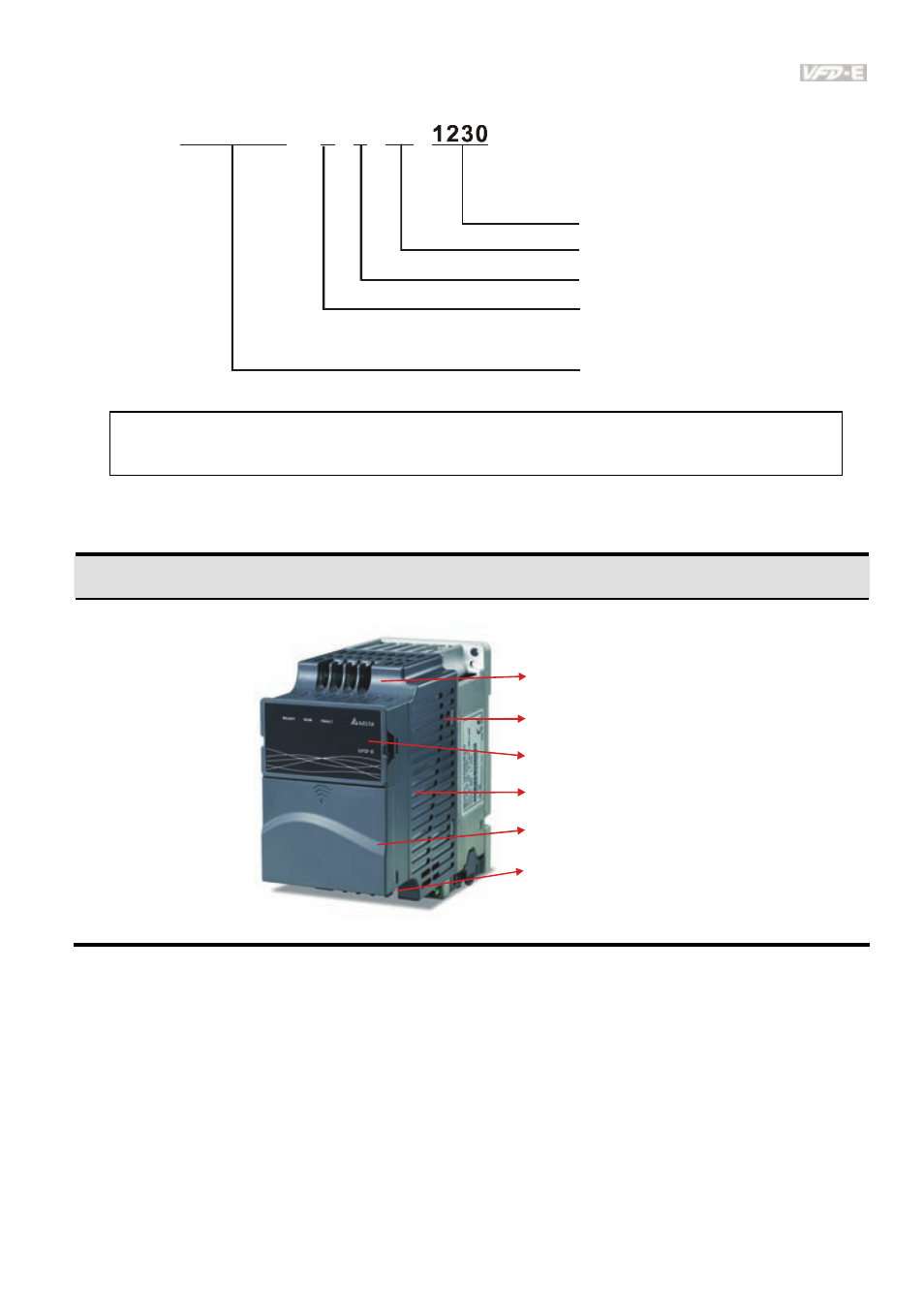

1.1.3 Series Number Explanation
01
7
7T
007E23A
Production number
Production year 2007
Production factory
Production week
T: Taoyuan, W: Wujiang
Model
230V 3-phase 1HP(0.75kW)
If the nameplate information does not correspond to your purchase order or if there are
any problems, please contact your distributor.
1.1.4 Drive Frames and Appearances
0.25-2HP/0.2-1.5kW (Frame A)
Input terminals
(R/L1, S/L2, T/L3)
Case body
Keypad cover
Control board case
Output terminals
(U/T1, V/T2, W/T3)
Control board cover
