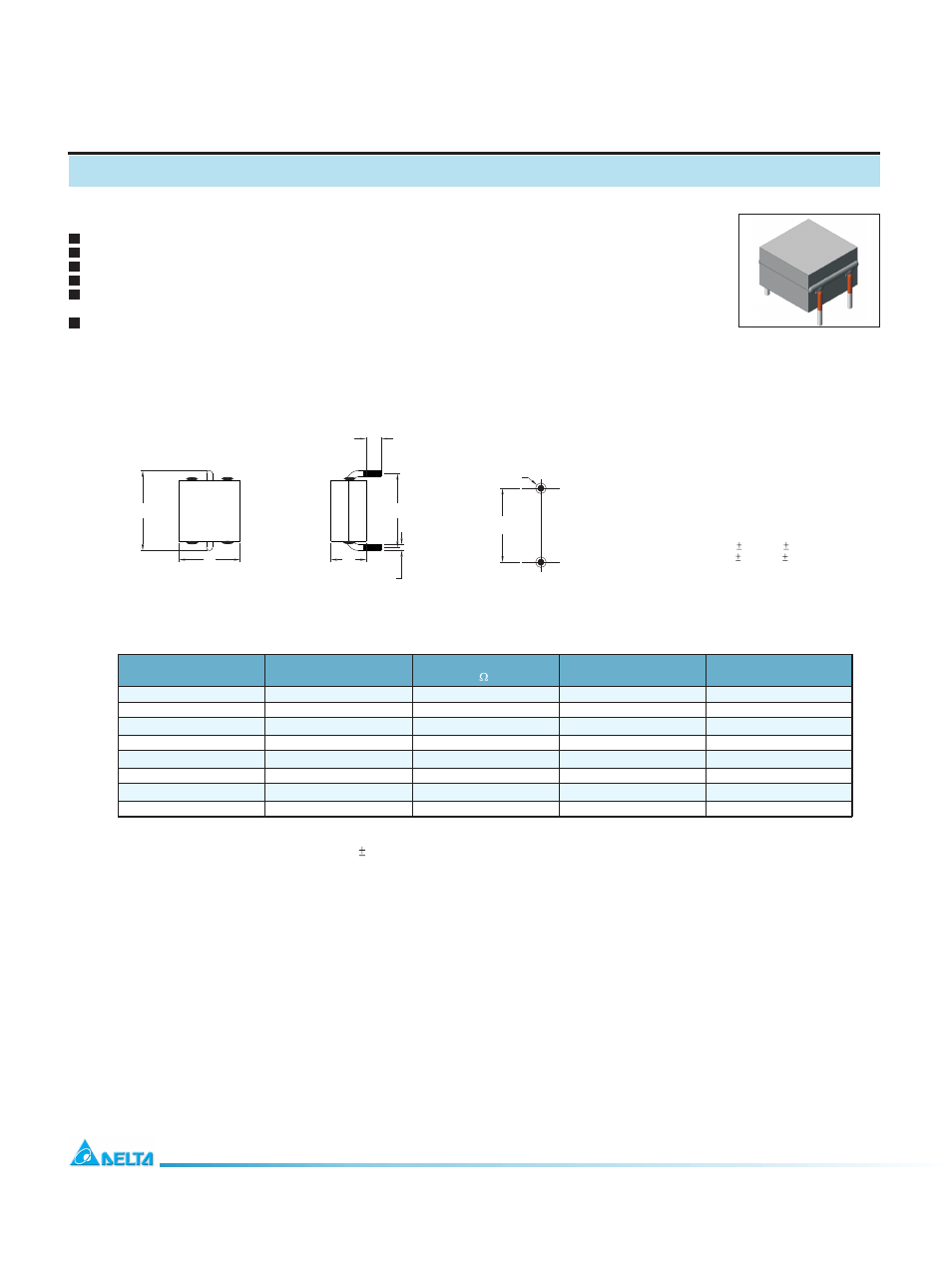

background image

Through Hole Power Inductors

THCBR1090 Type

Mechanical Dimension:

High current ( lsat up to 70A ) though hole type.
Magnetically shielded, suitable for hight density mounting.
High energy storage and low DCR.
Provided with embossed carrier tape packing.
Ideal for power source circuits, DC-DC converter,
DC-AC inverters inductor application.
In addition to the standard versions shown here,
customized inductors are available to meet your exact requirements.

Features

Electrical Characteristics:

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

At 25

: 100KHz, 1.0V

o

C

252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.
TEL: 886-3-3591968; FAX: 886-3-3591991
http://www.deltaww.com

151

UNIT:mm/inch
A = 10.5/0.42 MAX
B = 9.0/0.36 MAX.
C = 9.0/0.36 MAX

E = 3.5 0.5/0.14 0.02

F = 0.9/0.03

Dimension "C"

(mm / inch) MAX

D

9.0+/-1.0

1.3(REF.)

E

F

C

A

B

D = 9.0 0.5/0.36 0.02

1.Tolerance of inductance : 150~900nH 20%
2.Isat is the DC current which cause the inductance drop less than 20% of its nominal inductance without current

o

3.Irms is the DC current which cause the surface temperature of the part increase less than 45 C

o

o

4.Operating temperature: -40 C to 125 C ( including self-temperature rise )

1

3

2

PART NO.

L

DCR

Isat

Irms

(nH)

(m ) MAX

(Adc)

(Adc)

THCBR1090-151

150

0.70

73

40

THCBR1090-181

180

0.70

60

40

THCBR1090-241

240

0.70

40

40

THCBR1090-281

280

0.70

36

40

THCBR1090-351

350

0.70

26

40

THCBR1090-401

400

0.70

20

40

THCBR1090-551

550

0.70

12

40

THCBR1090-901

900

0.70

6.0

40

RECOMMENDED PAD PATTERNS
