2 main circuit terminals, 2 main circuit terminals -16 – Delta Electronics AC Motor Drive VFD-E User Manual
Page 43
Chapter 2 Installation and Wiring|
2-16
Revision June 2008, 04EE, SW--PW V1.11/CTL V2.11

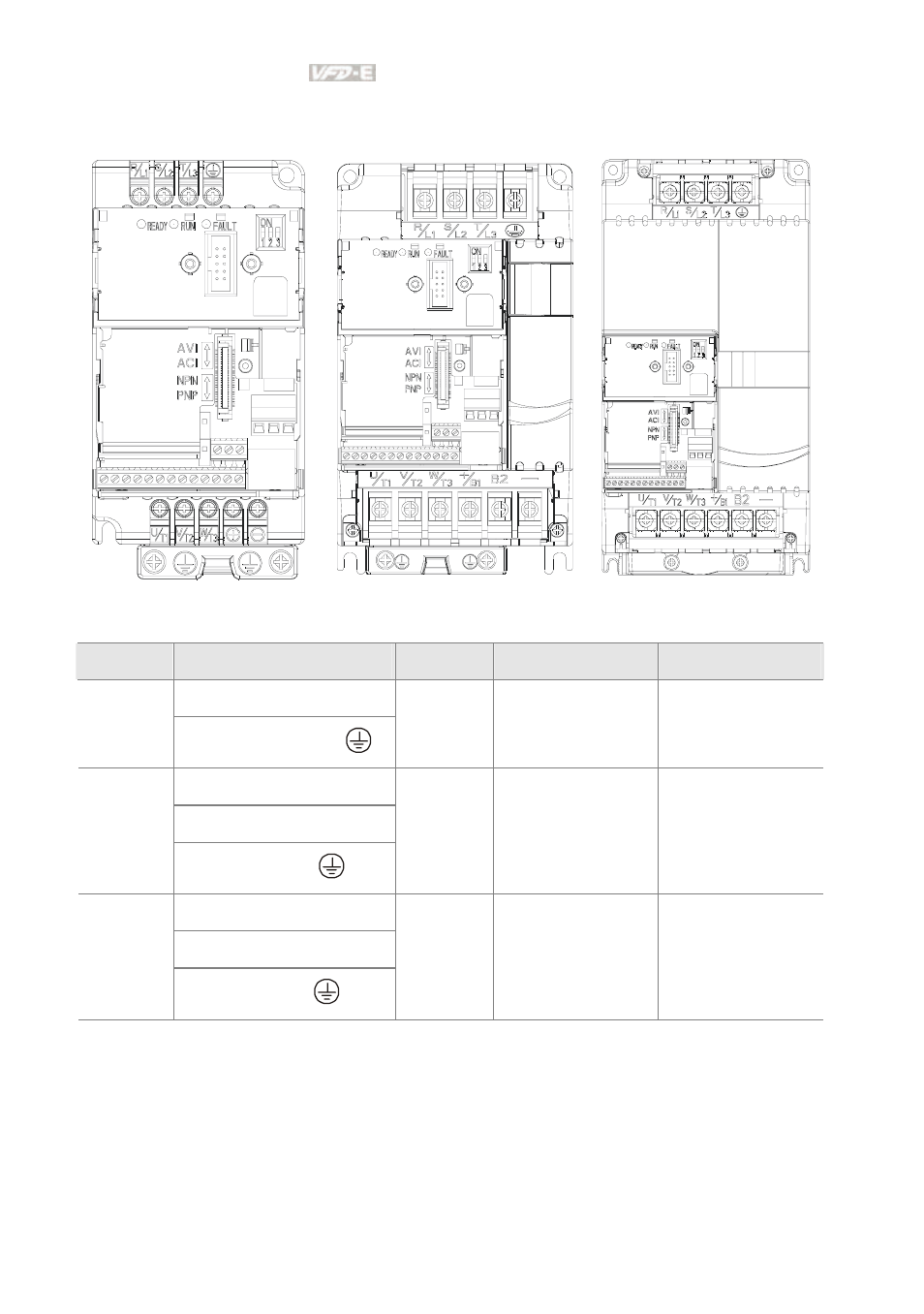

2.3.2 Main Circuit Terminals
Frame A
Frame B
Frame C
Frame
Power Terminals
Torque
Wire
Wire type
R/L1, S/L2, T/L3
A
U/T1, V/T2, W/T3,
14kgf-cm
(12in-lbf)
12-14 AWG.
(3.3-2.1mm
2
)
Copper only, 75
o
C
R/L1, S/L2, T/L3
U/T1, V/T2, W/T3
B
+/B1, B2, -,
18kgf-cm
(15.6in-lbf)
8-18 AWG.
(8.4-0.8mm
2
)
Copper only, 75
o
C
R/L1, S/L2, T/L3
U/T1, V/T2, W/T3
C
+/B1, B2, -
30kgf-cm
(26in-lbf)
8-16 AWG.
(8.4-1.3mm
2
)
Copper only, 75
o
C
