Chapter 4 Parameters|
Revision June 2008, 04EE, SW--PW V1.11/CTL V2.11
4-51
1
0 to +10V from AVI
2
4 to 20mA from ACI or 0 to +10V from AVI2
3
RS-485 (RJ-45)/USB communication
4
Digital
keypad
potentiometer
5
CANopen
communication
These parameters set the Master Frequency Command Source of the AC motor drive.
The factory setting for master frequency command is 1. (digital keypad is optional.)
Setting 2: use the ACI/AVI switch on the AC motor drive to select ACI or AVI2. When setting to
AVI, AVI2 is indicated.
When the 3
rd

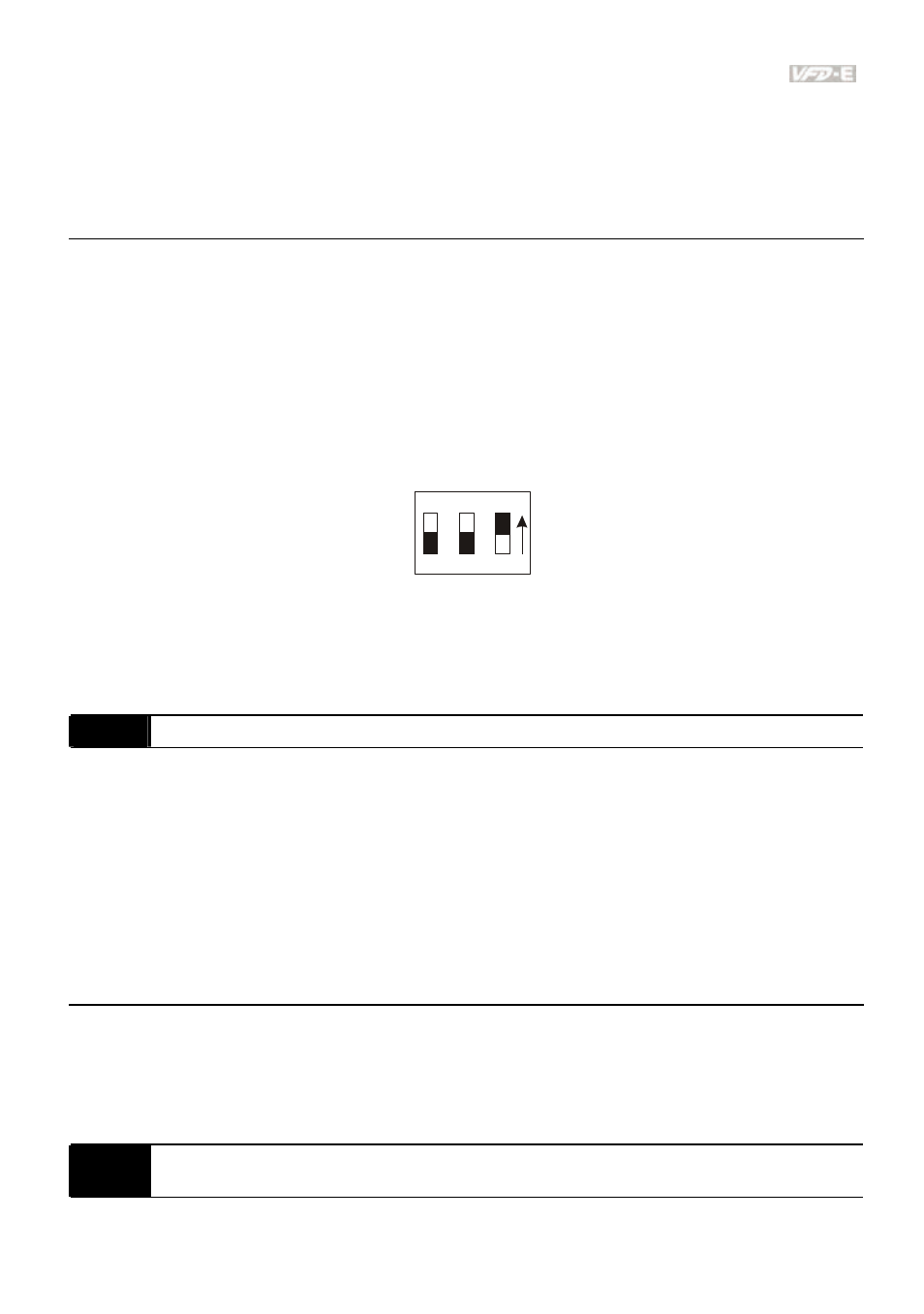

switch on the upper-right corner is set to be ON as shown in the following
diagram, the source of first master frequency command (Pr.02.00) will force setting to 2. This
setting(Pr.02.00) can’t be changed till the 3
rd
switch is set to be OFF.
ON
1
2
3
When the AC motor drive is controlled by external terminal, please refer to Pr.02.05 for details.
The first /second frequency/operation command is enabled/disabled by Multi Function Input
Terminals. Please refer to Pr.04.05 ~ 04.08.
02.01
Source of First Operation Command
Factory Setting: 1
Settings
0
Digital keypad (Digital keypad is optional)
1
External terminals. Keypad STOP/RESET enabled.
2
External terminals. Keypad STOP/RESET disabled.
3
RS-485 (RJ-45)/USB communication. Keypad STOP/RESET
enabled.
4
RS-485 (RJ-45)/USB communication. Keypad STOP/RESET
disabled.
5
CANopen communication. Keypad STOP/RESET disabled.
The factory setting for source of first operation command is 1. (digital keypad is optional.)
When the AC motor drive is controlled by external terminal, please refer to Pr.02.05/Pr.04.04
for details.
02.10
Combination of the First and Second Master Frequency
Command
Factory Setting: 0
