Appendix D How to Use PLC Function|
D-50 Revision June 2008, 04EE, SW--PW V1.11/CTL V2.11
X0
K10 MOV D0
X1
T0 MOV D10

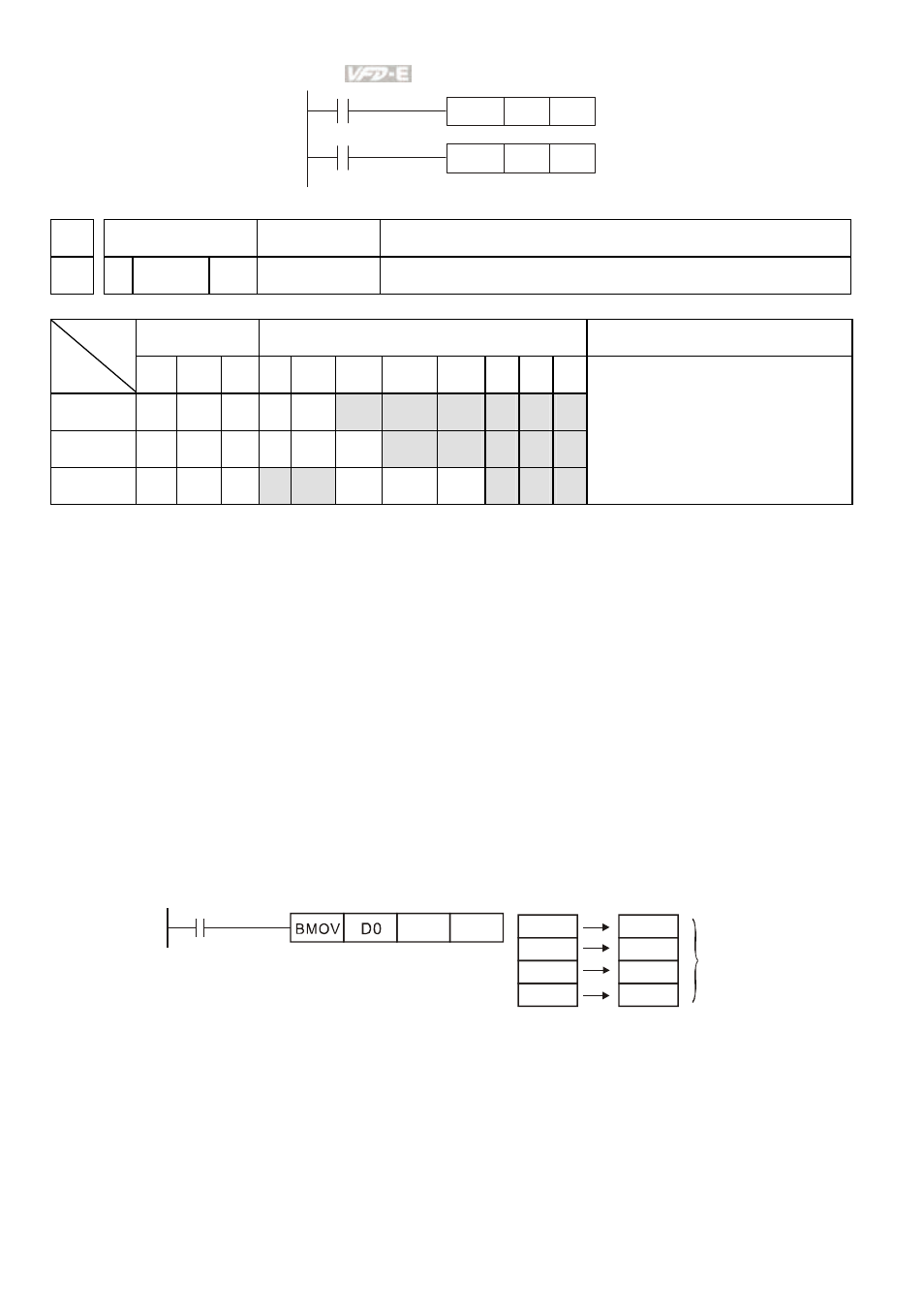

API Mnemonic Operands Function
15 BMOV P S, D, n Block Move
Bit Devices Word devices Program Steps Type
OP
X Y M K H KnX KnY KnM T C D
S * * * * * *
D * * * * *
n * * * * *
BMOV, BMOVP: 7 steps
Operands:
S: Start of source devices D: Start of destination devices n: Number of data to be moved
Explanations:
1. Range of n: 1 ~ 512
2. See the specifications of each model for their range of use.
3. The contents in n registers starting from the device designated by S will be moved to n
registers starting from the device designated by D. If n exceeds the actual number of
available source devices, only the devices that fall within the valid range will be used.
Program Example 1:
When X10 = On, the contents in registers D0 ~ D3 will be moved to the 4 registers D20 ~ D23.
X10
D20 K4 D0
D1
D2
D3
D20
D21
D22
D23
n=4
Program Example 2:
Assume the bit devices KnX, KnY, KnM and KnS are designated for moving, the number of digits of
S and D has to be the same, i.e. their n has to be the same.
