Chapter 4 Parameters|
Revision June 2008, 04EE, SW--PW V1.11/CTL V2.11
4-57
RUN
RUN
STOP
STOP

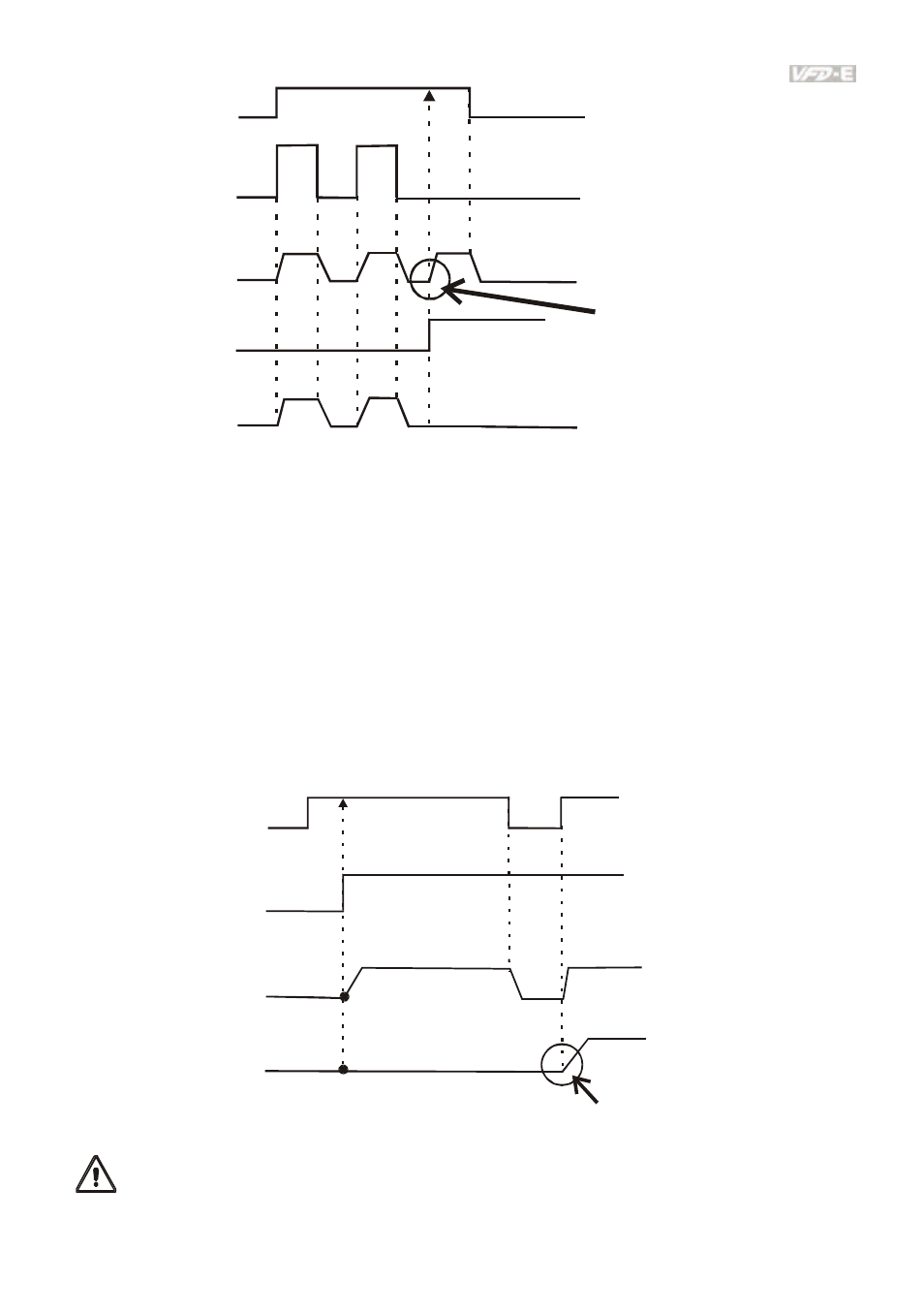

Pr.02.01=1 or 2
This action will follow MI1/DCM
or MI2/DCM status
(ON is close/OFF is open)
ON
OFF
MI1-DCM (close)
Pr.02.01=0
output frequency
Pr.02.05=0 or 2
Change operation
command source
output frequency
Pr.02.05=1 or 3
When the operation command source isn’t from the external terminals, independently from
whether the AC motor drive runs or stops, the AC motor drive will operate according to
Pr.02.05 if the two conditions below are both met.
1. When operation command source is changed to external terminal (Pr.02.01=1 or 2)
2.
The status of terminal and AC motor drive is different.
And the operation of the AC motor drive will be:
1. When setting 0 or 1, the status of AC motor drive is not changed by the terminal status.
2. When setting 2 or 3, the status of AC motor drive is changed by the terminal status.
It needs to received a run command
after previous command is cancelled
ON
OFF
MI1-DCM (close)
power is applied
output frequency
Pr.02.05=0 or 1
output frequency
Pr.02.05=2 or 3
ON
OFF
ON
it will run
it won't run
when power is applied
The Line Start Lockout feature does not guarantee that the motor will never start under this
condition. It is possible the motor may be set in motion by a malfunctioning switch.
