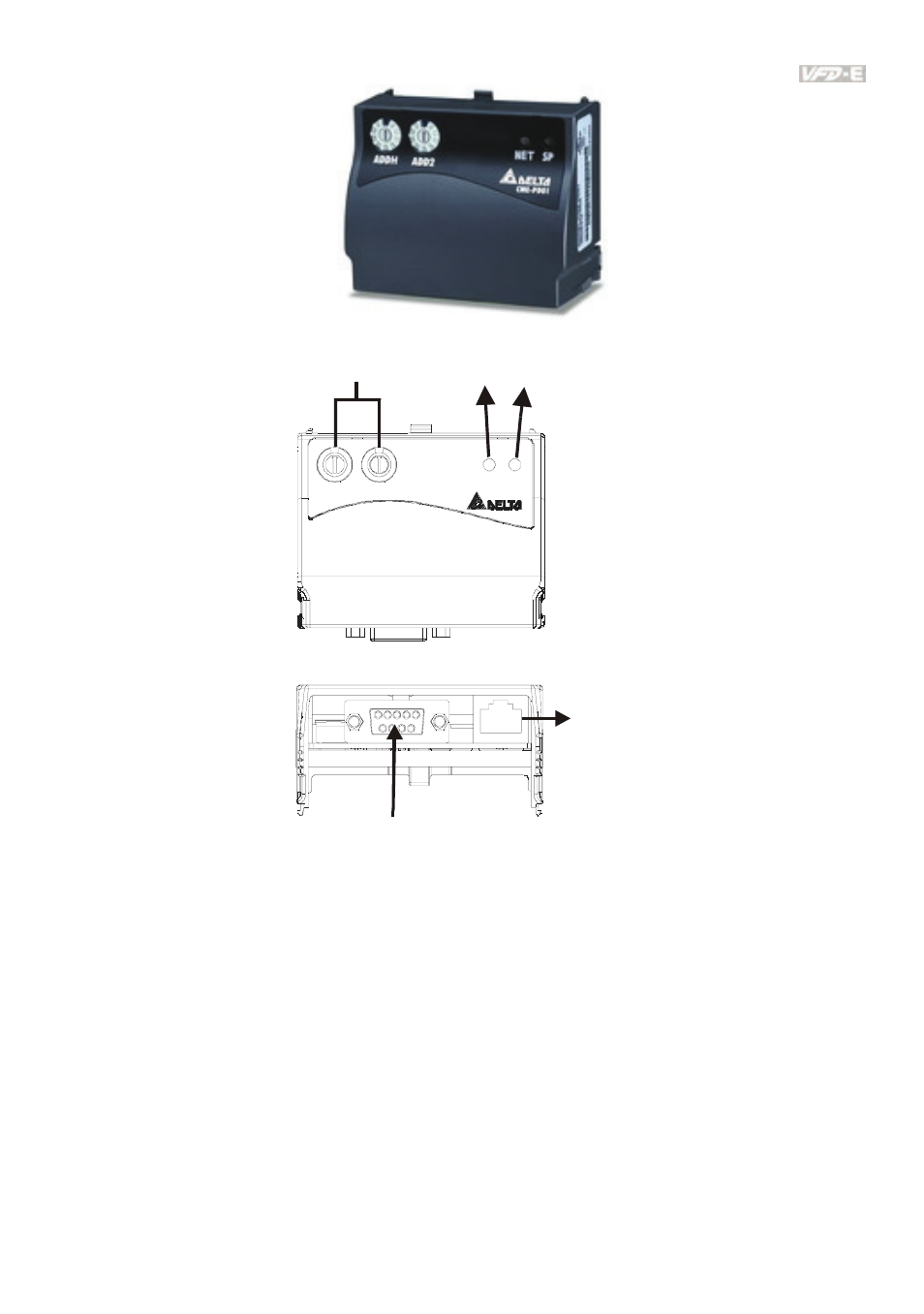

B.10.3.1 Panel Appearance

1: Reserved

2: EV

5: SG+
6: Reserved

7: Reserved
8: Reserved

3: GND

4: SG-

Profibus-DP

Interface (DB9)

RS-485 (RJ45)

ADDH ADDL

SP

NET

CME-P B01

SP LED

NET LED

Address Switches

1.

SP LED: Indicating the connection status between VFD-E and CME-PD01.

2.

NET LED: Indicating the connection status between CME-PD01 and PROFIBUS-DP.

3.

Address Switches: Setting the address of CME-PD01 on PROFIBUS- DP network.

4.

RS-485 Interface (RJ45): Connecting to VFD-E, and supply power to CME-PD01.

5. PROFIBUS-DP

Interface

(DB9): 9-PIN connector that connects to PROFIBUS-DP

network.

6.

Extended Socket: 4-PIN socket that connects to PROFIBUS-DP network.
