Chapter 4 Parameters|

Revision June 2008, 04EE, SW--PW V1.11/CTL V2.11

4-147

12.20

AO1 Terminal Analog Signal Mode

Factory Setting: 0

Settings

0

AVO1

1

ACO1 (analog current 0.0 to 20.0mA)

2

ACO1 (analog current 4.0 to 20.0mA)

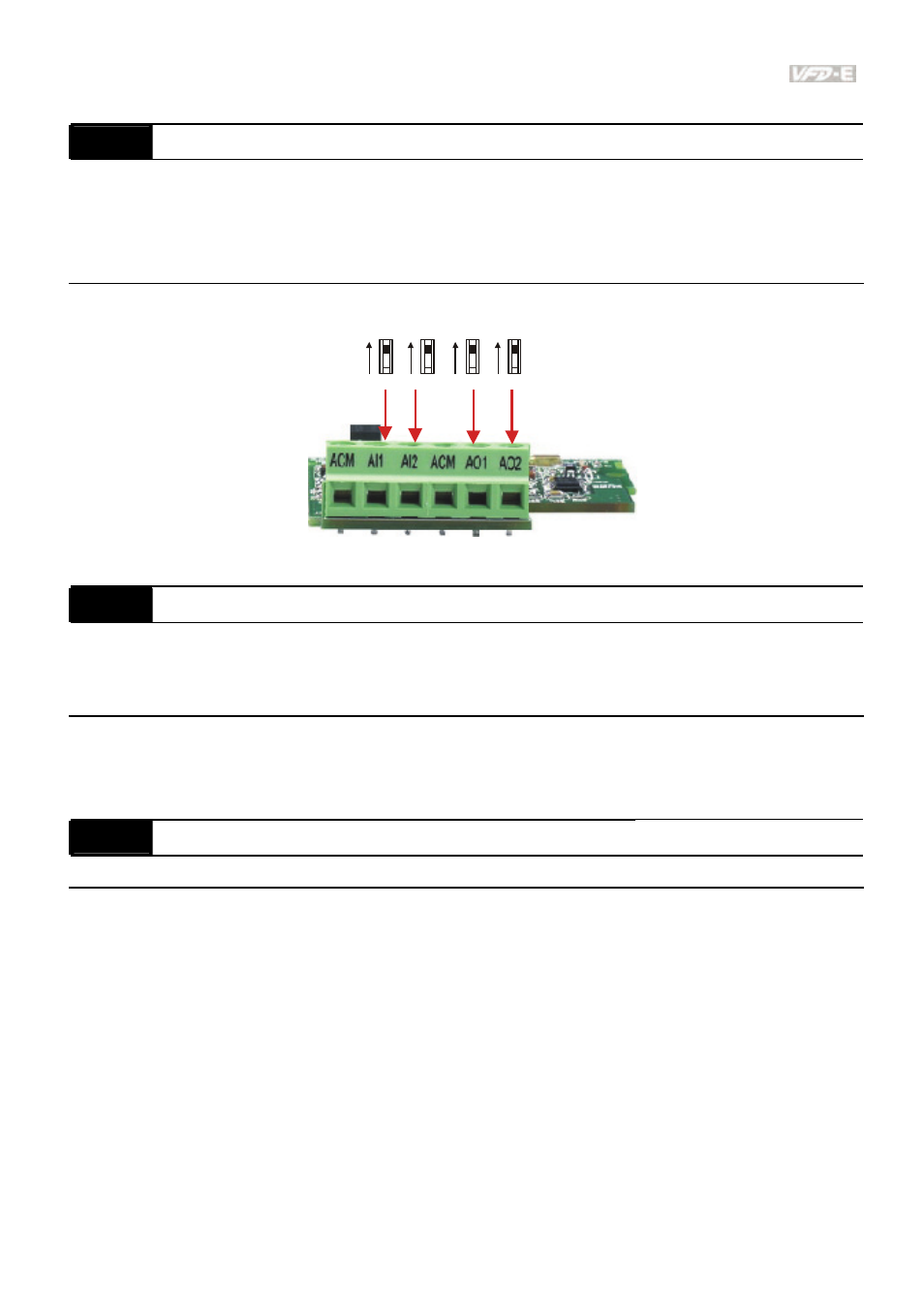

Besides parameter setting, the voltage/current mode should be used with the switch.

AVI3

ACI2

AVI4

ACI3

AVO1

ACO1

AVO2

ACO2

12.21

AO1 Analog Output Signal

Factory Setting: 0

Settings

0

Analog

Frequency

1

Analog Current (0 to 250% rated current)

This parameter is used to choose analog frequency (0-+10Vdc) or analog current (4-20mA) to

correspond to the AC motor drive’s output frequency or current.

12.22

AO1 Analog Output Gain

Unit: 1

Settings

1 to 200%

Factory Setting: 100

This parameter is used to set the analog output voltage range.

When Pr.12.21 is set to 0, analog output voltage corresponds to the AC motor drive’s output

frequency. When Pr.12.22 is set to 100, the max. output frequency (Pr.01.00) setting

corresponds to the AFM output (+10VDC or 20mA)

When Pr.12.21 is set to 1, analog output voltage corresponds to the AC motor drive’s output

current. When Pr.12.22 is set to 100, the 2.5 X rated current corresponds to the AFM output

(+10VDC or 20mA)
