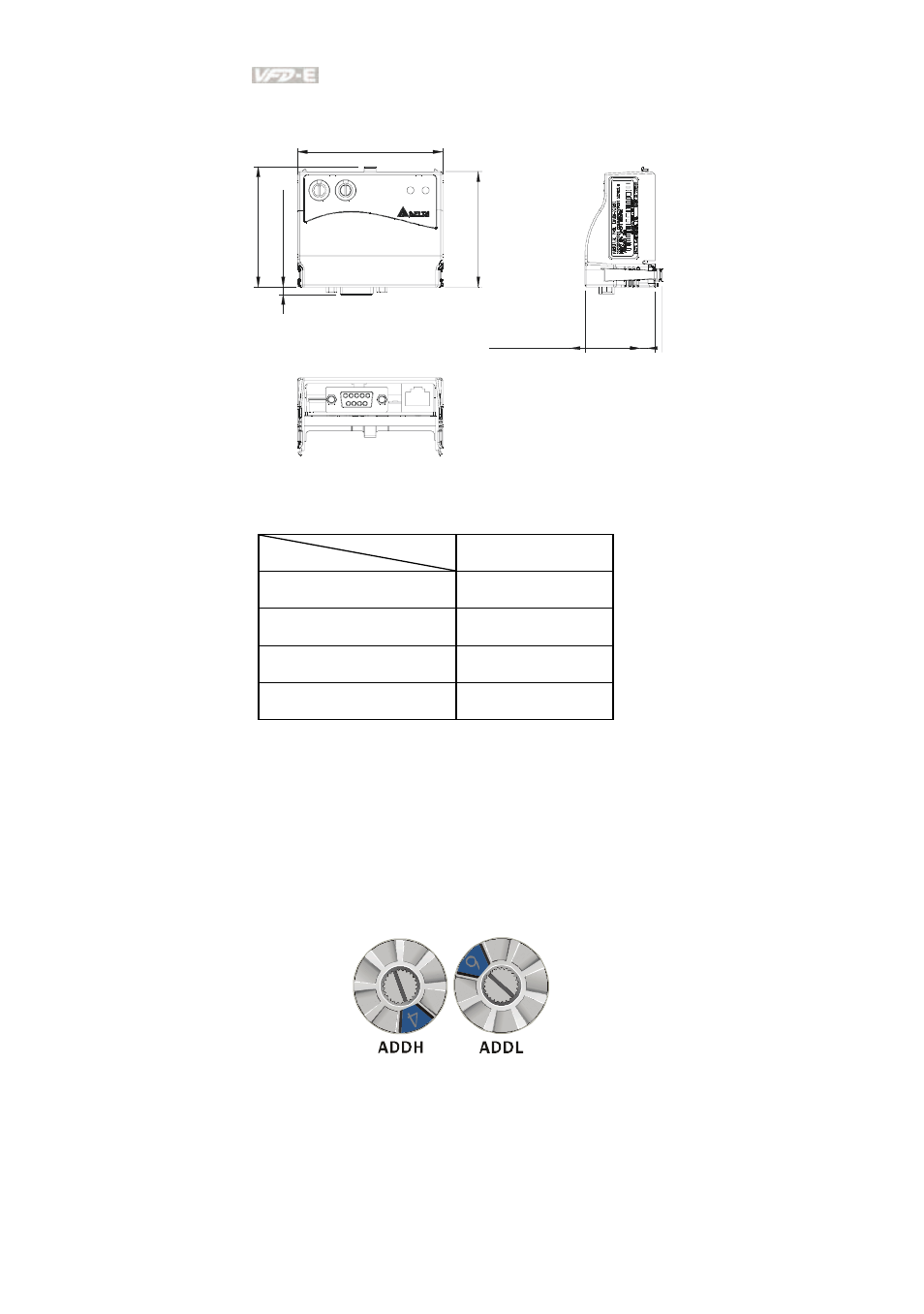

B.10.3.2 Dimensions
5
7.3
[2
.2
6]
59.7
[2
.35
]
3.
6
[0.
14]
72.2 [2.84]
34.8 [1.37]
ADDH ADDL
SP
NET
CME-P B01
UNIT: mm(inch)
B.10.3.3 Parameters Settings in VFD-E
VFD-E
Baud Rate 9600
Pr.09.01=1
RTU 8, N, 2
Pr.09.04=3
Freq. Source
Pr.02.00=4
Command Source
Pr.02.01=3
B.10.3.4 Power Supply
The power of CME-PD01 is supplied from VFD-E. Please connect VFD-E to CME-PD01 by
using 8 pins RJ-45 cable, which is packed together with CME-PD01. After connection is
completed, CME-PD01 is powered whenever power is applied to VFD-E.
B.10.3.5 PROFIBUS Address
CME-PD01 has two rotary switches for the user to select the PROFIBUS address. The set
value via 2 address switches, ADDH and ADDL, is in HEX format. ADDH sets the upper 4 bits,
and ADDL sets the lower 4 bits of the PROFIBUS address.
