10. Talk Key
Press this key to broadcast a voice announcement.
If the talk key is set to "Ptt" ("press-to-talk")
mode, then it must be pressed continuously for
the duration of the broadcast.
If the talk key is set to "lock" mode, then it must
be pressed once to turn the microphone on at
the beginning of a broadcast, then pressed again
to turn the microphone off once the broadcast is
finished.
the microphone can also be set to sound a chime
at the beginning and/or end of each broadcast.
the talk key mode ("Ptt" or "lock") and the
chime function are set using the SX-2000 Setting
Software. the rm-200SA of which "type" is set
to "General/Emergency" on the SX-2000 Setting
software is fixed to "PTT" mode for the Talk
key with no chime activation. (See the separate
Setting Software Instructions, "System Settings.")
11. Function Keys (L1 – L3)
Positioned in top-down order (l1, l2, l3).
these keys operate in the same manner as the
function keys (r1 – r3) (No. 9).
12. Broadcast Status Indicator
(Yellow/green)
Lights, flashes, or goes off depending on the
current operation state of the talk key.
13. Microphone Indicator (green)
lights or goes off depending on the current
operation state of the talk key.
flashes while the chime is being activated.

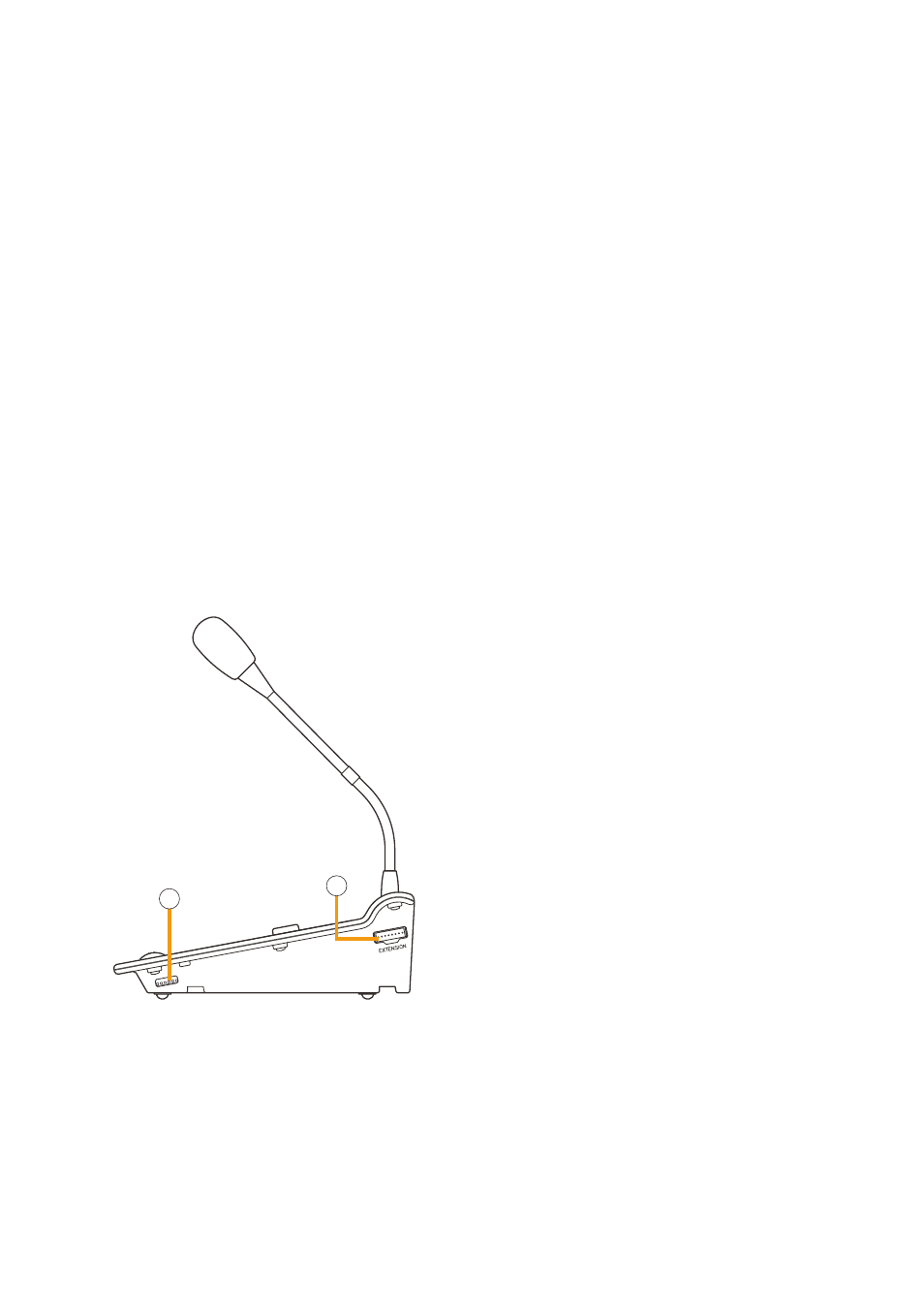

[Side]
14
15
14. DIp Switch
used for setting the rm-200SA unit.
• Switches 1 – 3
Sets the rm-200SA's device number (ID
number). (See p. 66 .)
• Switch 4
changes a broadcast status indicator (12) into
an output signal level indicator. (See p. 68 .)
• Switch 5
Sets whether the cPu off function (general
urgency all-call) is enabled or disabled.
(See p. 70 .)
• Switch 6
Sets the rm communication function.
(See p. 71 .)
Note
By default, DIP switches 1 – 4 and 6 are set to
off and DIP switch 5 to oN.
15. RM-210 Connection Terminal [EXTENSION]
Directly connect the rm-210 remote microphone
Extension unit to this terminal.
(See p. 81 .)
RM-200SA
