4.4.4. SX-2000CI

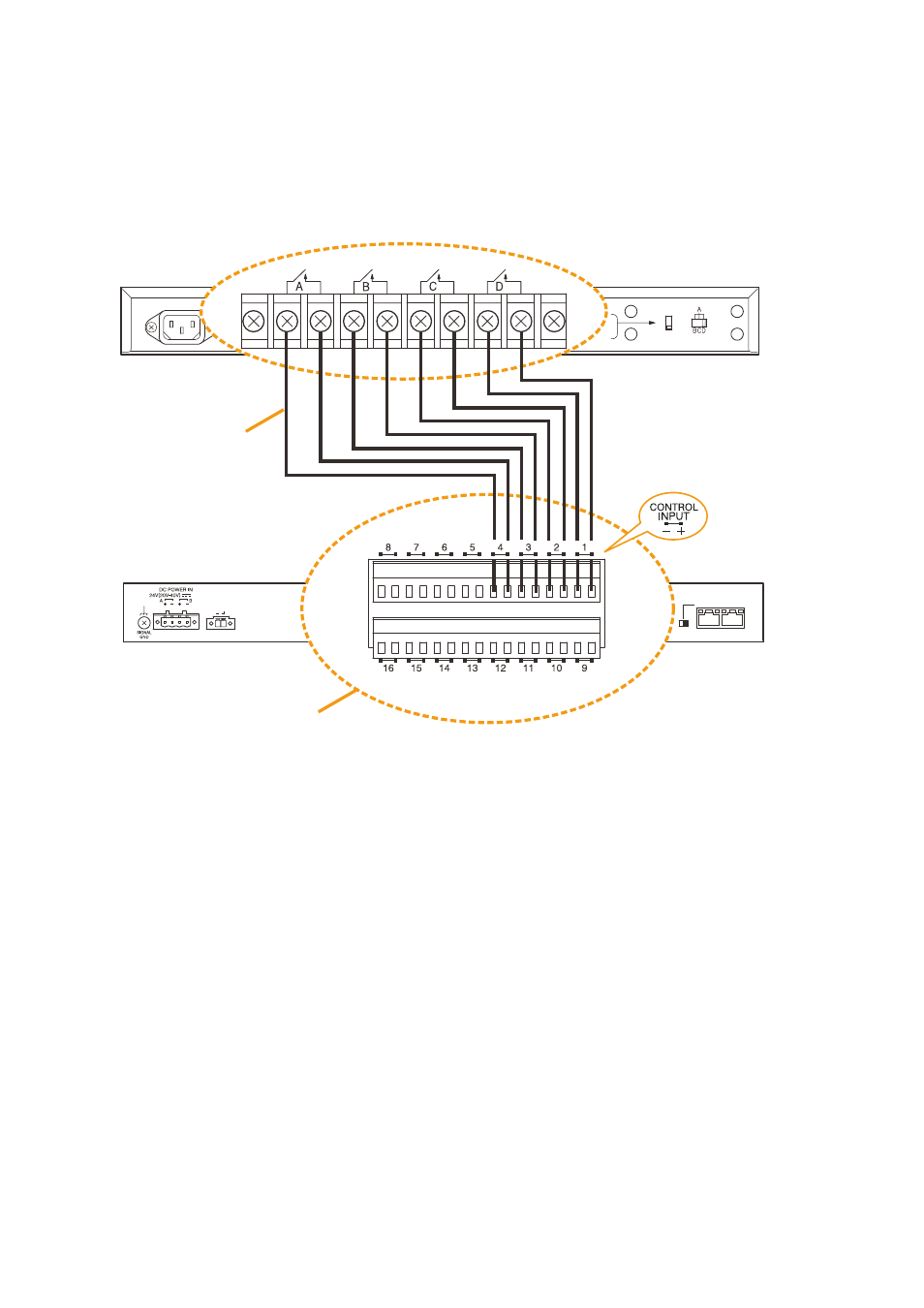

[Connecting control input terminals to the TT-104B program timer]
this connection allows timer-activated automatic broadcasts.
When the tt-104B's preprogrammed time is reached, the SX-2000cI receives a control output signal (make
contact) from the tt-104B and activates preset broadcast patterns.
TT-104B
SX-2000CI
OUTPUT CHANNEL (24 V DC 0.5 A)
BE SURE TO SET
THIS SWITCH TO “ON”
AFTER INSTALLATION
ON
MEMORY
BACK UP
CHANNEL
ASSIGNMENT
OFF
ON
OFF
CAUTION
DC 24V OUT
MAX. 0.1A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
CONTROL
ON
OFF
CI/CO LINK
THROUGH DATA
INPUT
Open voltage: 24 V DC
Short-circuit current: 2 mA
16P removable terminal plug
(supplied with the SX-2000CI)
Cable: AWG22 – 28
twisted pair cable
Control input terminals
OUTPUT CHANNEL (24 V DC 0.5 A)
