Information and Alarm Windows
Chapter 7
7-31

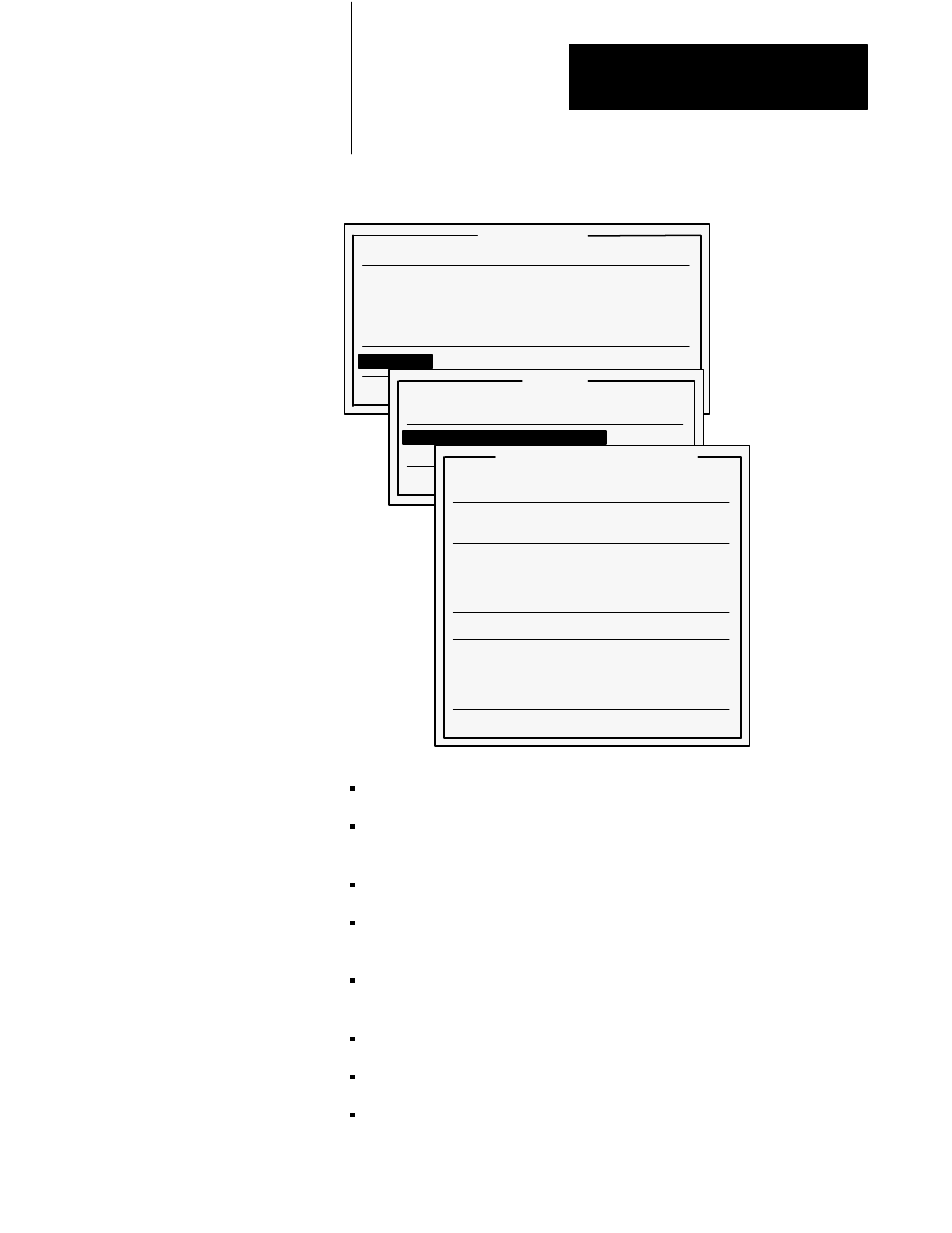

Figure 7.27
Address Assignment Menu
Alarm Window
Messages
Window Type Single Line
Window Look
Window Control Address
Acknowledged Alarm Number Address Disabled
Acknowledge Button Address Disabled
Options
Quit
Options
Clear Window to PLC Controller Disabled
Silence Alarms to PLC Controller Disabled
PLC Controlled Clear Window Enabled
PLC Controlled Silence Alarms Enabled
Quit
23136
PLC Controlled Clear Window
Current Address Unassigned Address
Current Preset
Data Type Bit
Communications Discrete
Input/Output Input
Rack 1
Start Word 0
Start Bit 0
Number of Bits 1
Update Address
Change Preset
View Address Map
Delete Address
Quit
Data Type is automatically set to Bit for the Alarm window options.
Communications specifies whether you want a Discrete or Block
Transfer.
Input/Output specifies whether this is an input or output address.
Rack specifies the rack number. This option only appears on the menu
if you have specified that this is a Discrete address.
File specifies the block transfer file number. This option only appears
on the menu if you have specified that this is a Block Transfer address.
Start Word specifies the starting word for the address.
Start Bit specifies the starting bit within the word for the address.
Number of Bits is automatically set to 1 for all remote Alarm window
processing options.
