Information and Alarm Windows
Chapter 7
7-23
You can only change the location of the single line alarm window
immediately after choosing Single Line from the Window Type menu. To
change the location of an existing single line window, choose Window
Type, then Single Line. The Window Location menu will open.

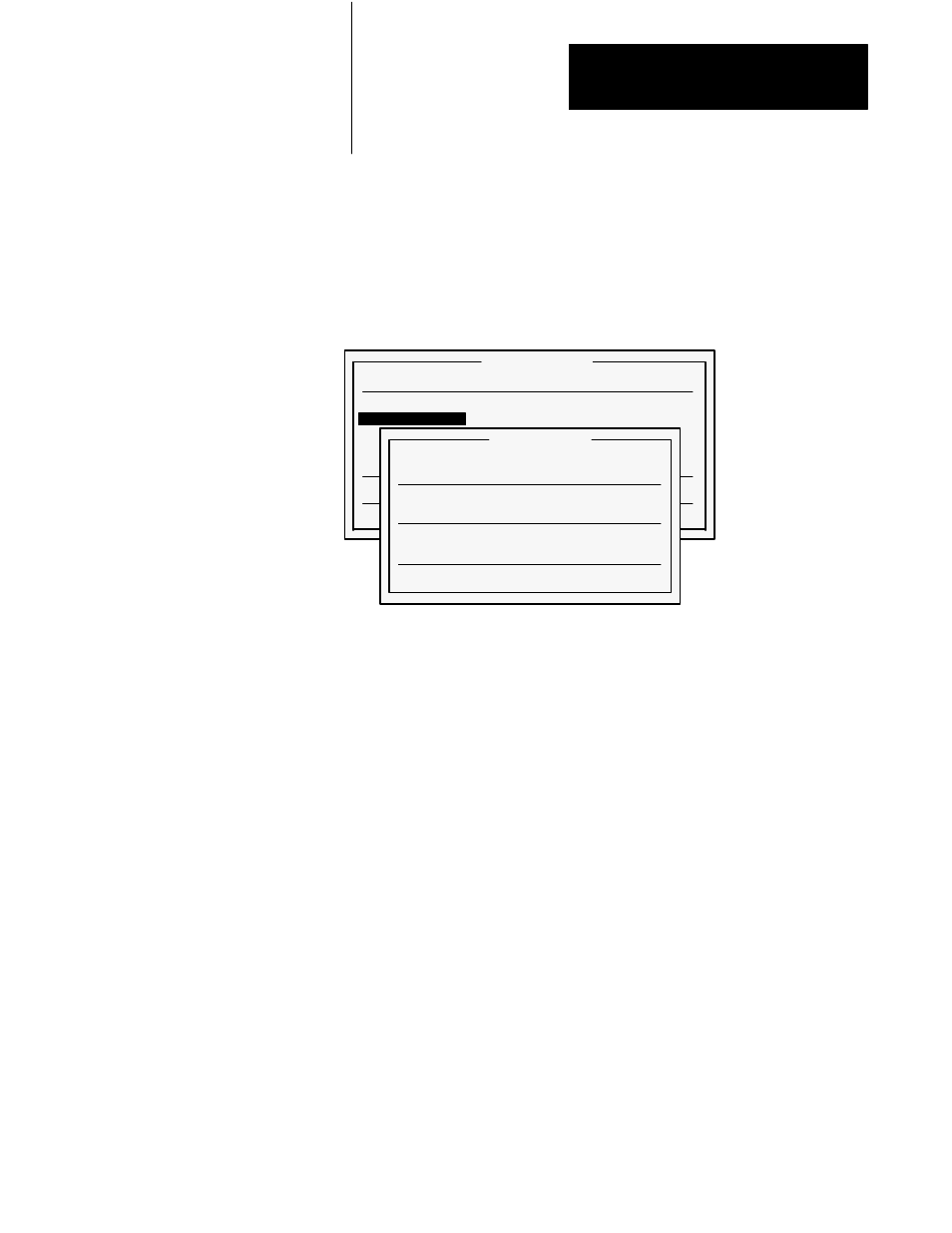

Figure 7.23
The Window Look Menu for the Full Alarm Window
Alarm Window
Messages
Window Type Single Line
Window Look
Window Control Address
Acknowledged Alarm Number Address Disabled
Acknowledge Button Address Disabled
Options
Quit
23134
Window Look
Foreground Color White
Background Color Red
Blink No
Underline No
Character Height Single
Number of Visible Messages 3
Quit
IMPORTANT: For monochrome terminals, you can select High Intensity,
instead of the Foreground Color and Background Color settings.
Address Assignment for the Alarm Window
Window Control Address
To define the PLC address for the Alarm window, choose Window Control
Address in the Alarm window. The following menu appears with a list of
options described below.
IMPORTANT: Remember that the appropriate addresses for the Alarm
window should be determined when the screens are designed. For more
information see Chapter 4, Planning Your Application.
