<4. Display and Operations while Connected to GC8000>

4-49

IM 11B06C01-01E

l

Deleting a saved chromatogram

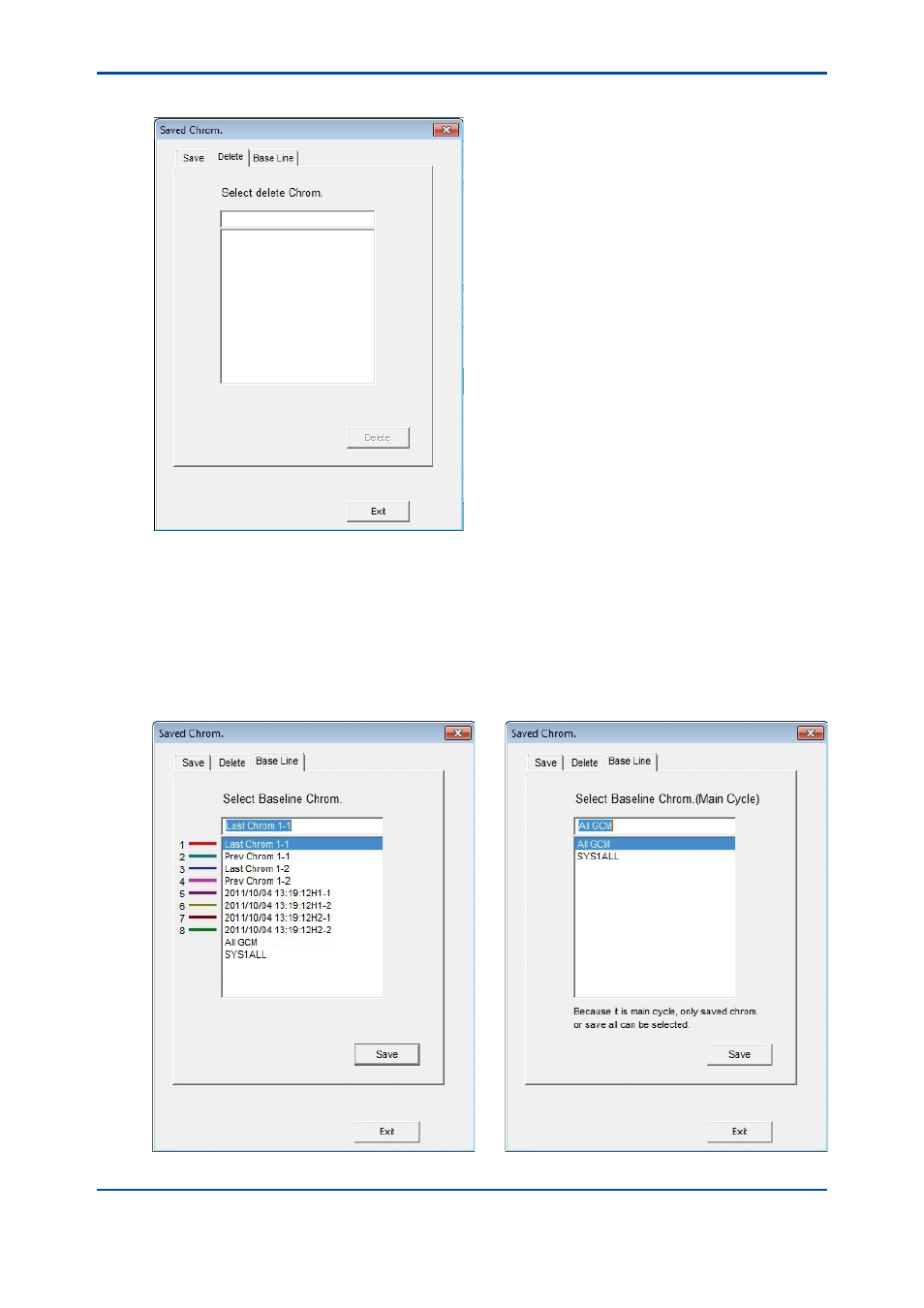

Figure 4.57

Delete Saved Chromatogram dialog box

1) From the list of saved currently displayed chromatograms in the Chromatogram window,

select a saved chromatogram to be deleted.

2) After selecting a saved chromatogram you want to delete, click the “Delete” button. This

causes the “Do you want to delete?” confirmation message to appear.

3) Clicking “OK” deletes the appropriate chromatogram in GC8000.

l

Saving a baseline chromatogram

Figure 4.58

Save Baseline Chromatogram dialog box (left) Dialog box in tandem display mode (right)

5th Edition : Nov. 16, 2011-00
