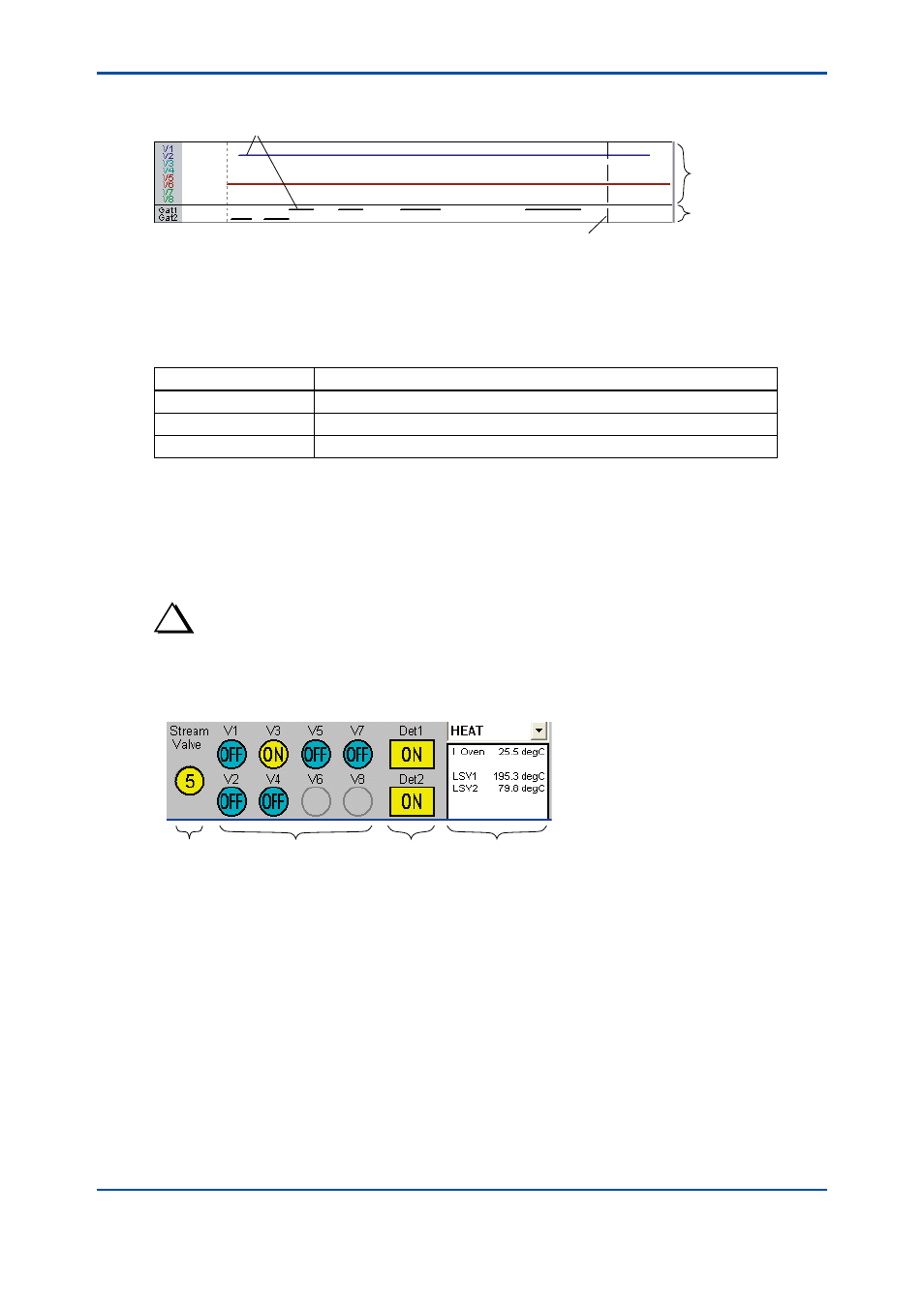

Window elements
F5-2-5.ai
Indicates the elapsed time.
Indicates that the valves and gate(s) are ON.
Gate
(one detector)
or
Gat1/Gat2
(two detectors)
V1 to 8
l
Contents of display
The following table lists the contents of the display:
Scale/Item
Description
Horizontal Scale
The horizontal scale is displayed in the analysis cycle set for each stream.
V1 to 8
Displays the ON/OFF status of valves 1 to 8 in bar graphs.
Gate or Gat1/Gat2
Displays the ON/OFF status of gate(s) in bar graph(s).
n
Valve Display Control Section
The valve display control section displays the status of the analyzer stream-switching valve
(current number or OFF), the ON/OFF status of valves in the analyzer, the ON/OFF status of the
detector(s), and the temperature controller status. It also allows you to perform status change.
TIP
User level “C” is required to operate the valve display control section and the system must be in Manual mode.
l
Window elements
F5-2-6.ai
Stream-switching
valve
Valves 1 to 8
Detectors
Temperature
controllers
