<5. Display and Operations while Connected to GC1000 Mark II>
5-6
IM 11B06C01-01E
n

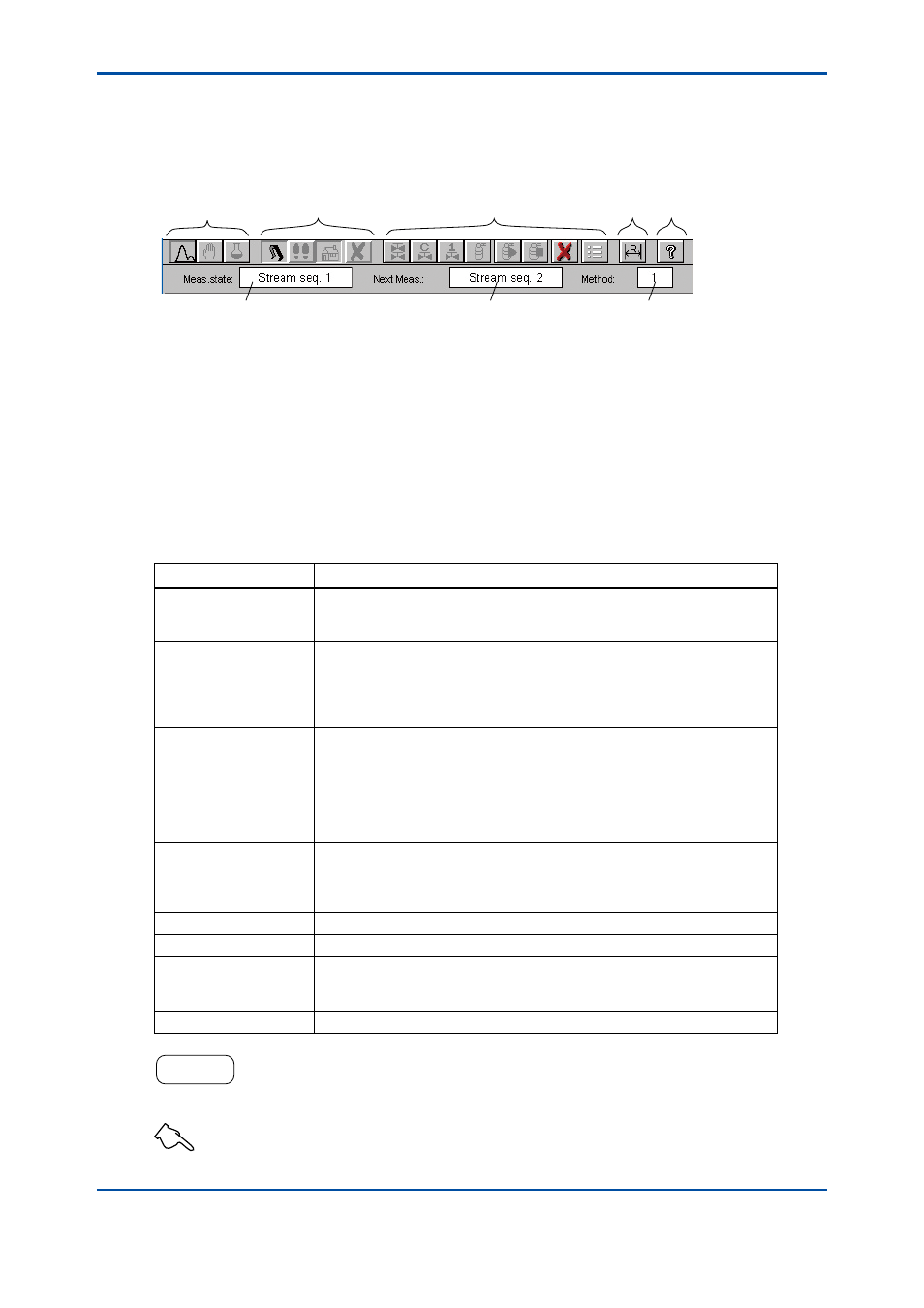

Operation Status Display Bar
The Operation Status Display bar is a tool for monitoring the current operation status of the
analyzer and for operating it.
l
Window elements
F5-2-3.ai
Measurement status
e
d
c
b
a
Measurement status change queued
Method
a: Status (change command) buttons
“Process” status
“Manual” status
“Lab” status
b: Operation Mode (change command) buttons
“Run” mode
“Pause” mode
“Stop” mode
“Cancel Command
(dedicated for commanding)
c: Measurement Status Change specifying buttons
“Stream Sequence”
“Stream (Continuous)”
“Stream (Once)”
“Calibration (Verification)”
“Start Calibration (Verification)”
“End Calibration (Verification)”
“Cancel Setting”
“Calibration (Verification) Method”
d: Change Range command button
e: Help Display button
l
Button functions and display information
The following table lists the button/display functions and display information.
Button/Display
Function and Display Information
Status (change
command) buttons
These buttons display the current analyzer status. They also enable you
to conduct status change by clicking the status button that you want to
change.
Operation Mode
(change command)
buttons
These buttons display the current analyzer operation mode and the status
in which operation mode change has been commanded and reserved.
They also enable you to change the command mode by clicking the
operation mode button that you want to change. The “Cancel Command”
button is used to cancel queued operation mode changes.
Measurement Status
Change setting buttons
These are setting dedicated buttons used to specify measurement status
by clicking the button of the measurement status you wish to change to.
The “Start Calibration (Verification)” and “End Calibration (Verification)”
buttons are used to start/end calibration (verification) manually. The “Cancel
Setting” button is used to cancel queued measurement status changes. The
“Calibration (Verification) Method” button is used to change the calibration
(verification) method.
Range Change
command button
Commands a range change.
If a database-related setting change is made on the analyzer unit side, a
message appears, disabling command issuance. This button requires user
level B.
Help Display button
Displays the Help mode of the Analyzer Operation window.
Measurement status
Indicates the current measurement status.
Measurement status
change queued
When a measurement status change has been made, this box indicates
the currently specified measurement status until the measurement status
changes to the specified one.
Method
Indicates the current method number.
HELP !
To operate the Operation Status Display bar, user level “B” or “C” is required.
SEE ALSO
For how to change the user level, see section 3.4.
