5.2.7
Changing Valve/Detector/Temperature Controller Status
Moving the mouse cursor over Stream Valve, V1-8, Det/Det2, or to an area inside the
Temperature Control Unit Operation window and clicking the left button allows you to change the
ON/OFF status of the valves, detectors, and/or temperature controllers.
CAUTION
Only level-C users can change the ON/OFF status of the valves, detectors, and/or temperature
controllers. The status also needs to be in Manual.
Moreover, the analyzer must be in Remote mode or it will not be possible to make changes.
n
Changing a Stream-switching Valve

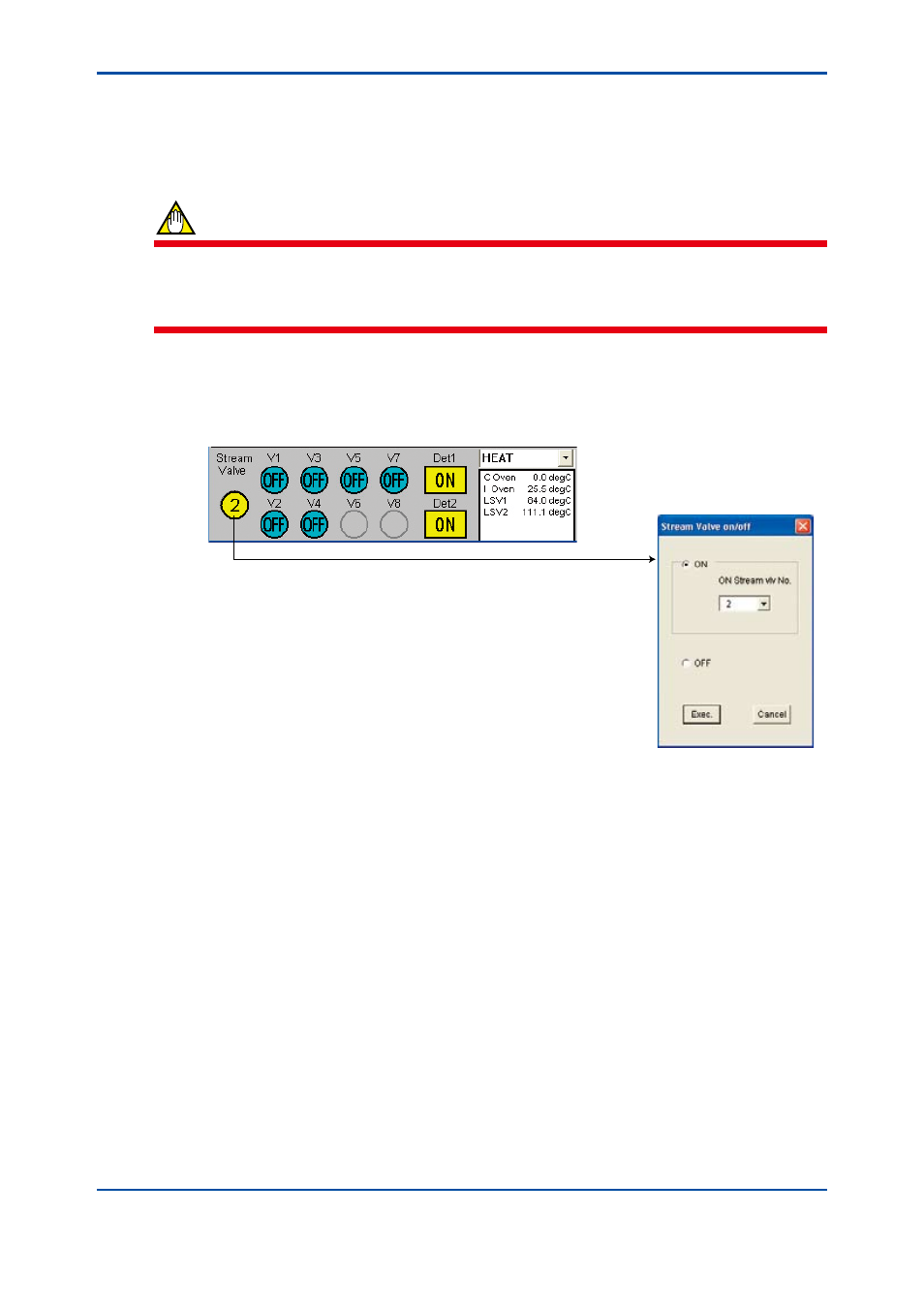

(1) Click on the stream-switching valve indication.
The Stream Switching dialog box appears.
Click
F5-2-17.ai
(2) To turn ON the stream valve, select the ON radio button and choose the desired stream
valve’s number; to turn it OFF, select the OFF radio button and click the Execute button.
(3) The Stream Valve indication changes to the specified stream valve status.
n
ON/OFF Operation of Valves 1 to 8
(1) Click on one of the Valve V1 to V8 indications.
A dialog box appears confirming that you want to change the ON/OFF setting.
