<4. Display and Operations while Connected to GC8000>
4-47
IM 11B06C01-01E
4.4.20
Save Chromatogram Dialog Box
Select the Save Chromatogram command in the File menu to display the Save Chromatogram
dialog box.
From this dialog box, you can select a chromatogram currently displayed, and save it as a file on
the PC.

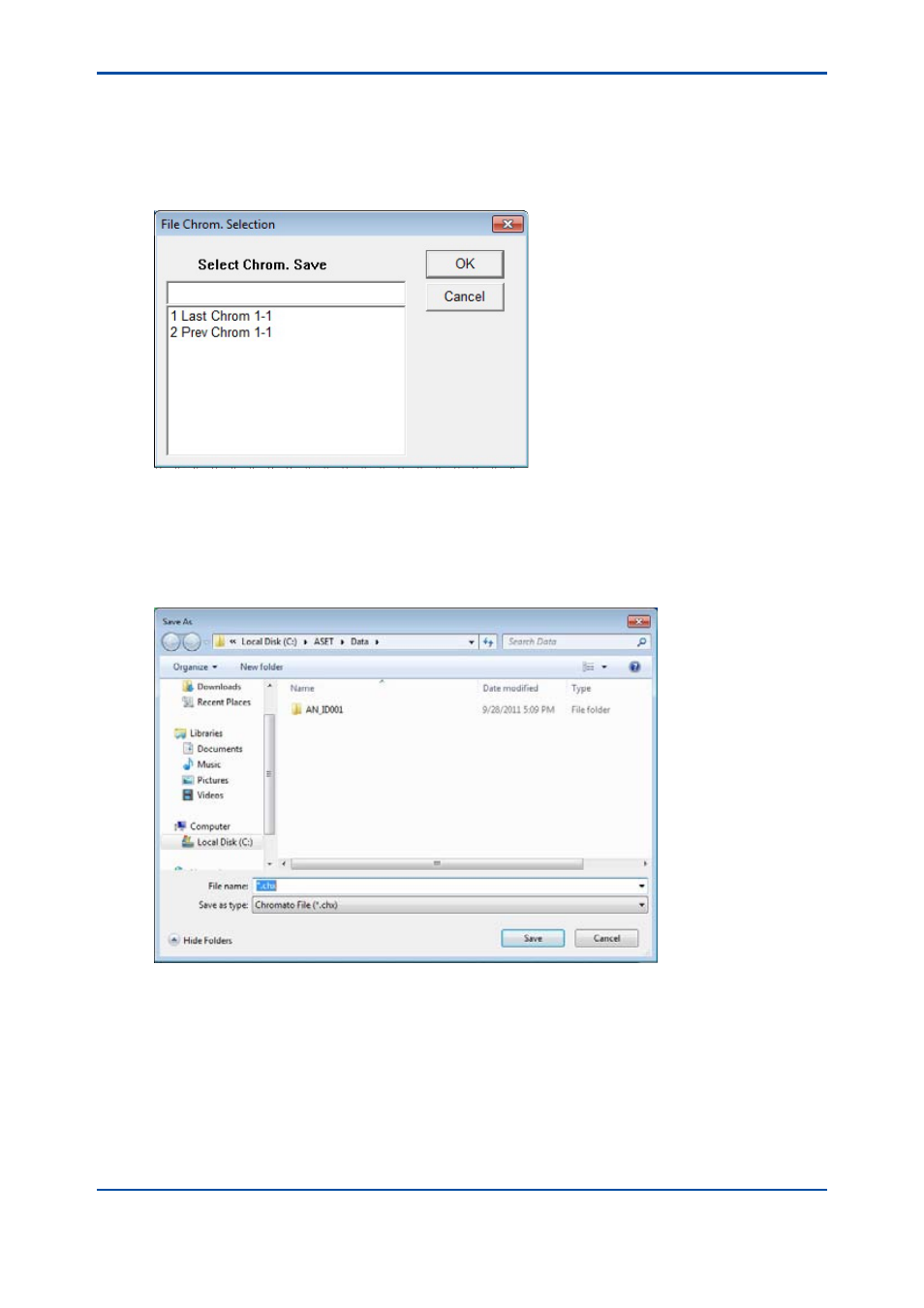

Figure 4.54
Save Chromatogram dialog box
1) From the dialog box, select one chromatogram to be saved and click the OK button.
2) The “Save As” dialog box appears. Specify a file name and click the save button to save the
chromatogram to a file. Then, the specified chromatogram and corresponding temperature
data, pressure data 1, pressure data 2, peak number, and analysis results are saved to the
file.
Figure 4.55
Save As dialog box
