<6. Display and Operations of Windows while Connected to ASIU>
6-6
IM 11B06C01-01E

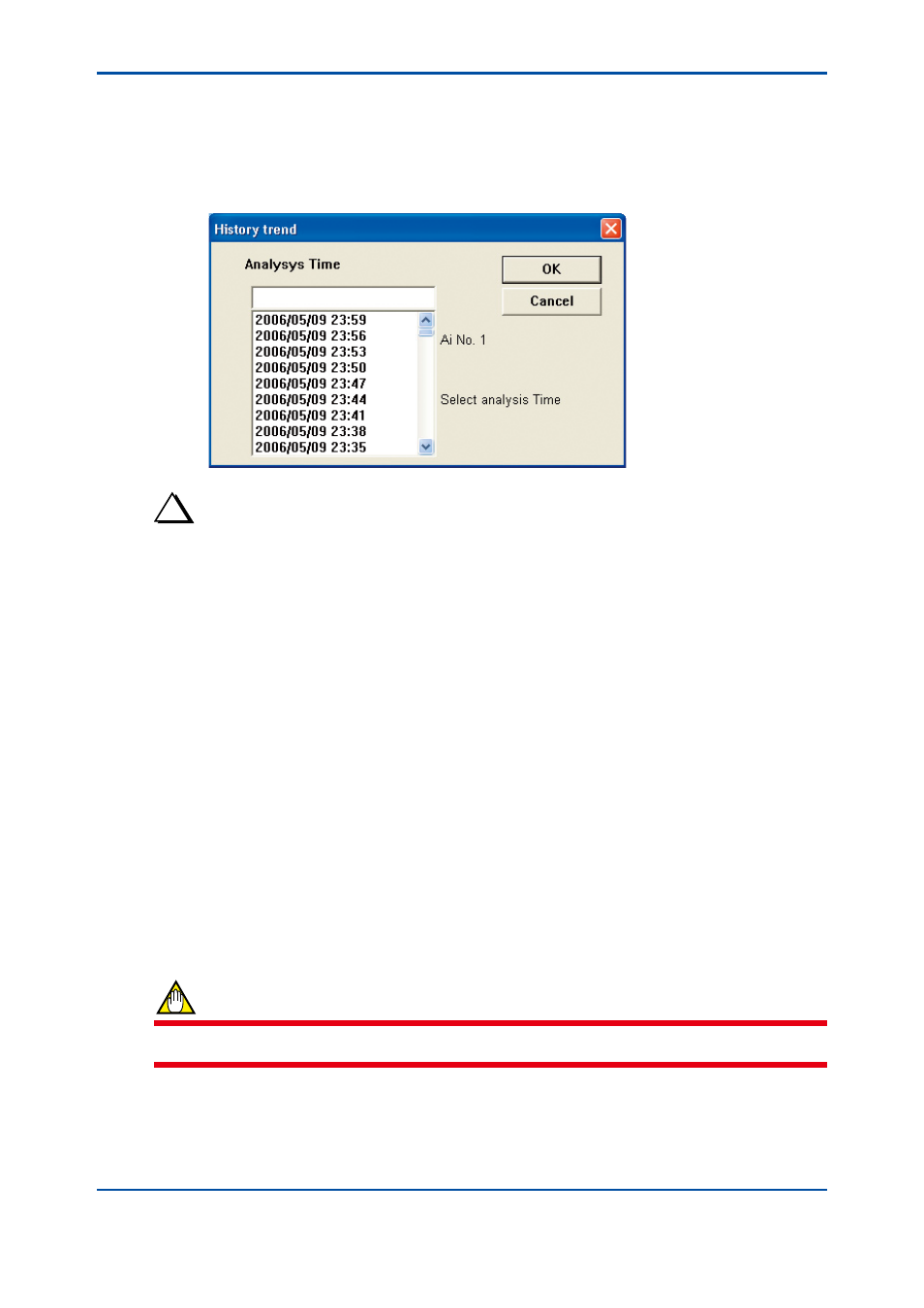

(5) Choose the start time and click the OK button. This returns you to the Set Pen dialog box.
In this case, the combo box selected in step (1) shows the following trend start time and AI
number:
12/08 16:09 H3
Month Day Hr Min History trend’s AI No.
F6-2-6.ai
TIP
If a time earlier than 24 hours prior is specified in step (4), processing may take some time, depending on the
amount of data.
l
File trend and differential trend
These are the same as the file and differential chromatograms available while connected to
GC1000. See subsection 5.3.4, “Displaying Chromatogram and Temperature Data.”
n
Setting Marks and Displaying Temperature Data
Short-term trend data does not contain mark information or temperature and pressure data;
these items cannot be displayed in the window.
6.3
Contact Output Operation Window
The Contact Output Operation window displays the statuses of ASIU contact outputs as ON/OFF.
From this window, the ON/OFF status of the contact outputs can be operated.
6.3.1
Displaying and Exiting the ASIU Operation Window
This section describes how to display and exit the ASIU Operation window.
CAUTION
Only one ASIU Operation window can be displayed at a time.
5th Edition : Nov. 16, 2011-00
