Exiting
l
Operation procedure
Click on the Close command in the Control menu while the Analyzer Operation window is in an
active state.
The Analyzer Operation window is closed.
5.2.2
Configuration of the Analyzer Operation Window
The Analyzer Operation window is intended for monitoring analyzer status in detail and for
analyzer operations. It displays the latest operation status of the analyzer and enables operation
of the analyzer. The data updating cycle is 1 second.
• During individual connection to ASIU, the Analyzer Operation window cannot be displayed.
n
Element Names
The following shows the element names of the Analyzer Operation window.

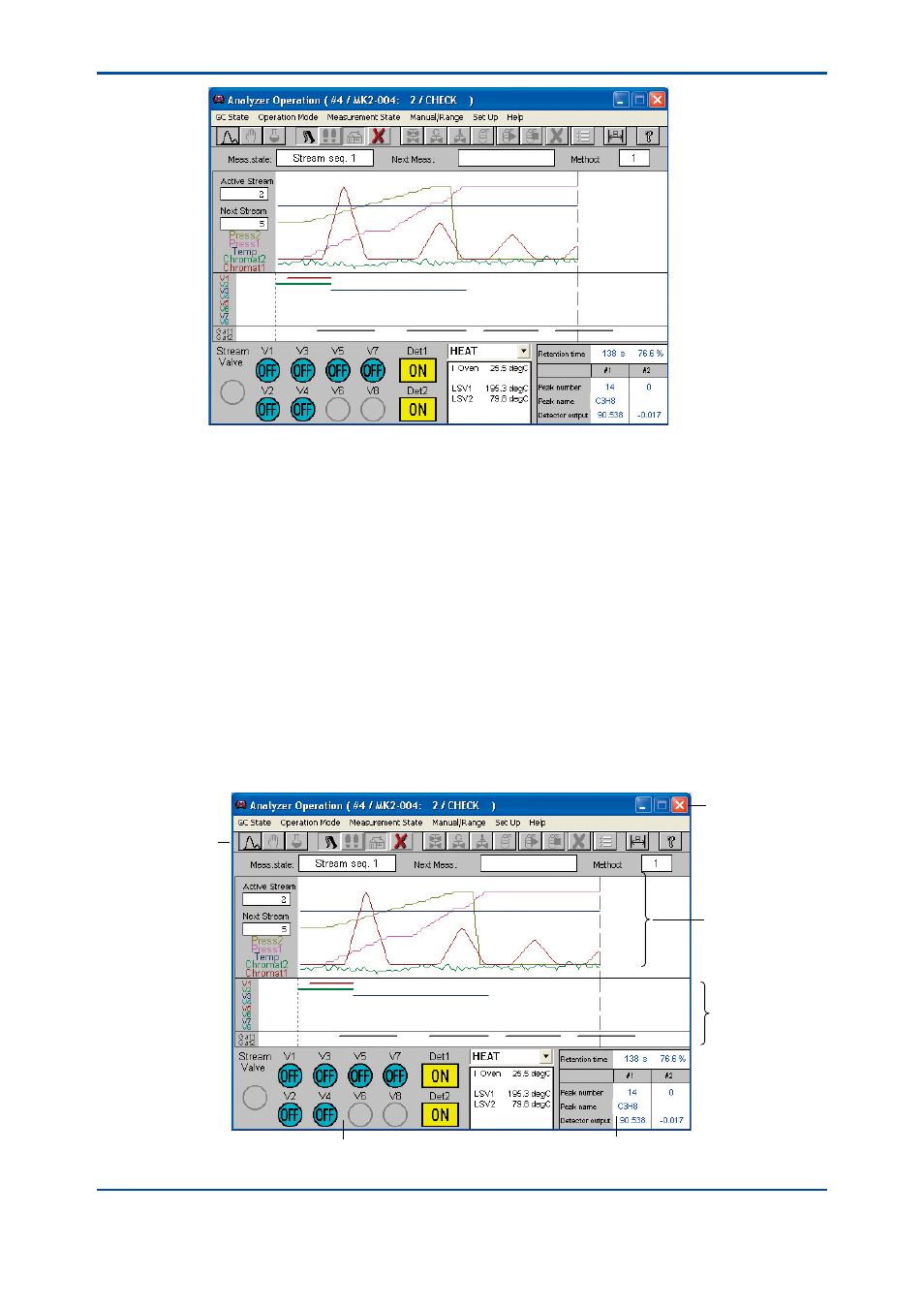

F5-2-2.ai
Operation
Status
Display
bar
Valve display control section
Data display section
Chromatogram
display section
Timing display
section
Title bar
