<4. Display and Operations while Connected to GC8000>
4-29
IM 11B06C01-01E
4.3.26
Gate Cut Method/Integ Method
To set the gate and integration processing method, select the Gate Cut Method/Integ Method tab
window from the Set Peak dialog box.

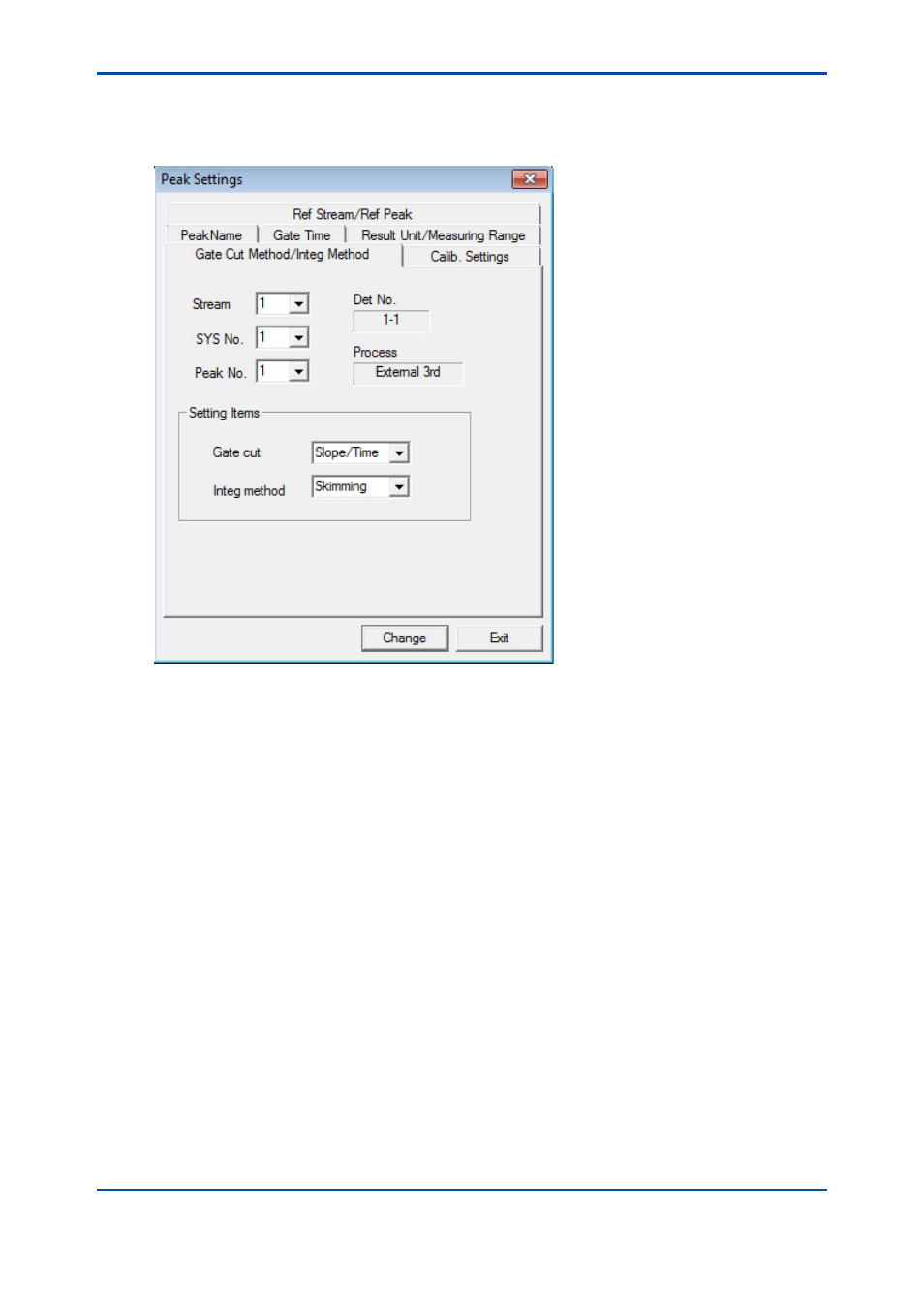

Figure 4.33
Set Peak dialog box (Gate Cut Method/Integ Method)
In this dialog box, you can set a Gate Cut Method and an Integration Method for the specified
stream number, system number, and peak number.
After you have changed the settings, click the Change button. A confirmation message asking
“Are you sure you want to send the data?” is displayed in the message box. When you respond
with “Yes”, the settings are changed.
5th Edition : Nov. 16, 2011-00
