<4. Display and Operations while Connected to GC8000>
4-56
IM 11B06C01-01E
6) Select a desired date from the analysis date setting dialog box, then apply it by pressing the
OK button.

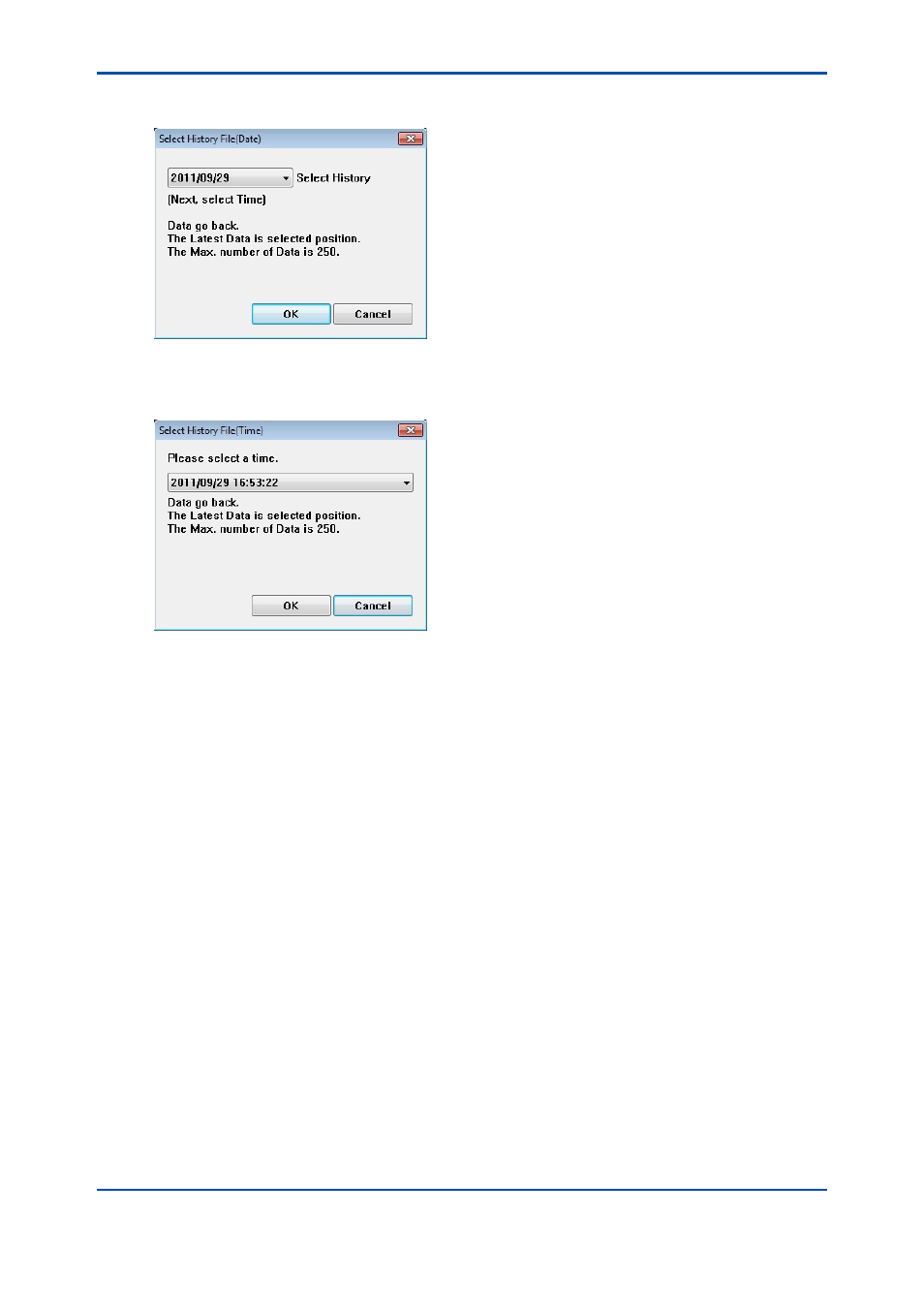

Figure 4.69
Date setting dialog box
7) Select a desired time from the analysis time setting dialog box, then apply it by pressing the
OK button.
Figure 4.70
Time setting dialog box
8) The retention time results are displayed for up to 5,000 past analyses tracing back from the
specified file. The analysis results are then not automatically updated.
4.5.4
Calibration Coefficient History Window
The window displays the analysis results for all systems included in the selected GCM or for each
system belonging to that GCM.
l
Displaying from the latest calibration coefficient
1) Select Calibration Coefficient History Window in the Window menu, or the Calibration
Coefficient History Window tab to display the Calibration Coefficient History window.
2) Select SYS Number Select in the Display Item menu, or the system number or GCM of the
retention time result you want to display from the system number select combo box on the
toolbar.
3) Select Open History in the File menu, or the Open History command button on the toolbar to
open the history setting dialog box.
4) From the radio button selecting Display from Latest or Display from History, select Display
from Latest, then apply it by pressing the OK button.
5) The calibration coefficients are displayed for the latest and past up to 5,000 analyses
tracing back from the latest. Each time the latest analysis result is obtained, the results are
automatically updated in the window. Then, the “being updated automatically” message
appears on the title bar.
