<4. Display and Operations while Connected to GC8000>
4-2
IM 11B06C01-01E
4.1
Overview Window
l
Configuration

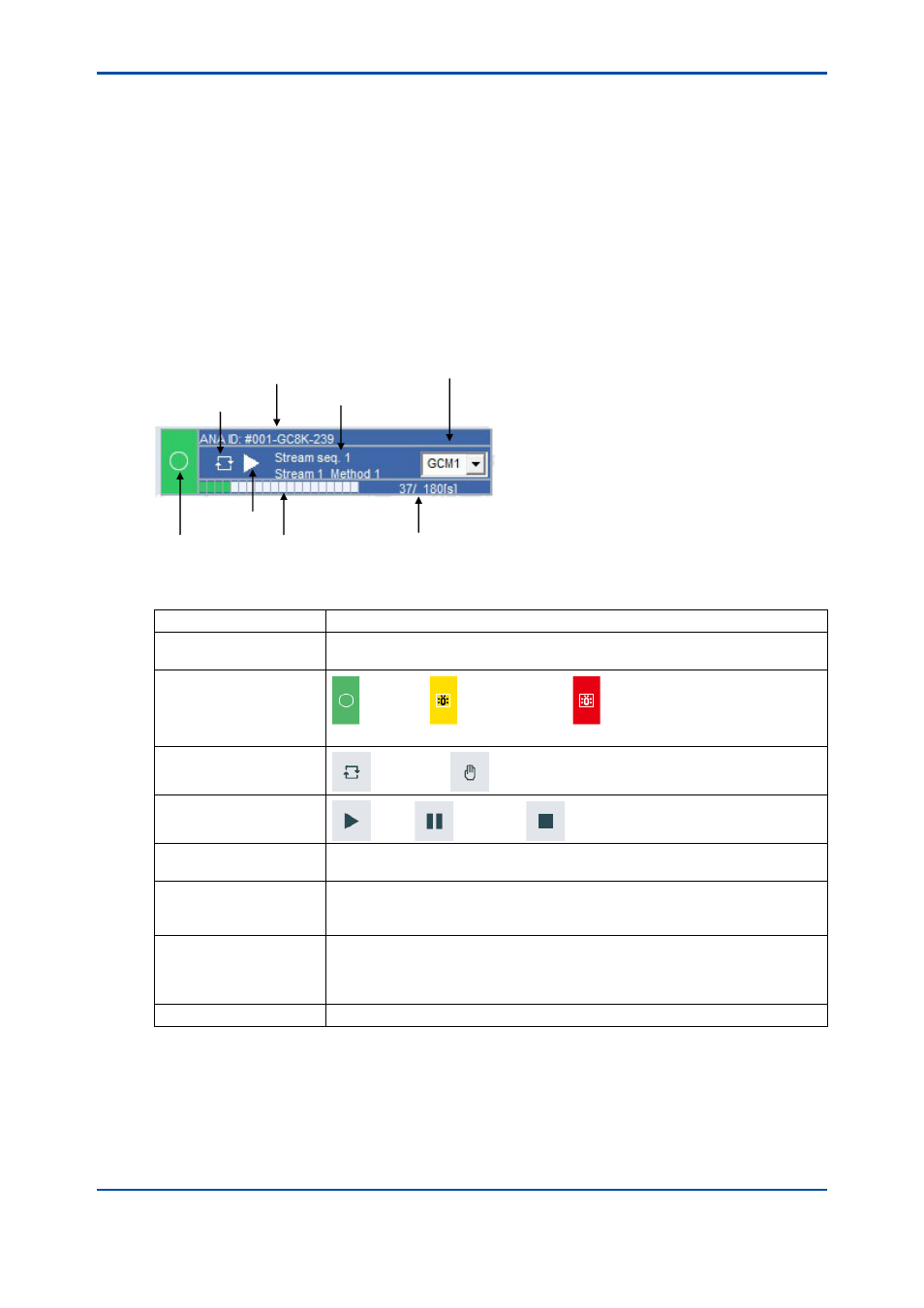

The Analyzer Status window is the main part of the Overview window. It displays the latest
operation states of up to 16 analyzers that have been specified in advance, and updates display
data automatically at 1-second intervals. You can click a button in the window to change the
operation mode or to display the Latest Analysis Results window.
The analyzers displayed in the Analyzer Status window when the Overview window is displayed
for the first time after installation are those automatically selected from the analyzers specified
for the analyzer server. To switch to the desired analyzer display, execute the Display Setting and
Set Page commands.
Operation Mode
Elapsed time bar graph Elapsed time/Analysis cycle
Alarm Status
Status
Analyzer ID/Tag name
Measurement Status
Select GCM combo box
l
Functions and Display Information of Elements
Button/Display
Function and Display Information
Analyzer ID and Tag name Indicates “#xxx-tag name” (where, xxx is the analyzer ID and the tag name
consists of up to 16 characters) after “ANA ID:”
Alarm Status
(No alarm),
(Level-2 alarm), or
(Level-1 alarm) is indicated.
The Alarm Status window appears when the button is double-clicked.
Status
(Process) or
(Manual) is indicated.
Operation Mode
(Run),
(Pause), or
(Stop) is indicated.
Measurement Status
Indicates the “Stream sequence n”, “Stream (Continuous)”, “Calibration n”,
“Validation n”, “Stream n”, “Method n” in this format. (“n” is a single digit.)
Elapsed time/Analysis
cycle
Indicates the on-going analysis using a progress bar.
They are indicated in the
“Elapsed time/Analysis cycle” format.
Select GCM combo box
Indicates the currently selected GCM number.
All GCM numbers being set for the target analyzer are shown on the list.
“GCM1” is indicated when the Overview Window is opened.
When another page is displayed, the previously displayed GCM number is saved.
Disabled communication
If communication is disabled, “Disable” is indicated at the right of the tag name.
5th Edition : Nov. 16, 2011-00
