<2. Ethernet LCD Emulator Window>
2-7
IM 11B06C01-01E
2.2 Basic Operation
The LCD Emulator window is identical to the LCD panel for both display and operations. Buttons
on the window can be operated using a mouse, and keyboard-based one-touch operation is also
possible.
n Window Configuration

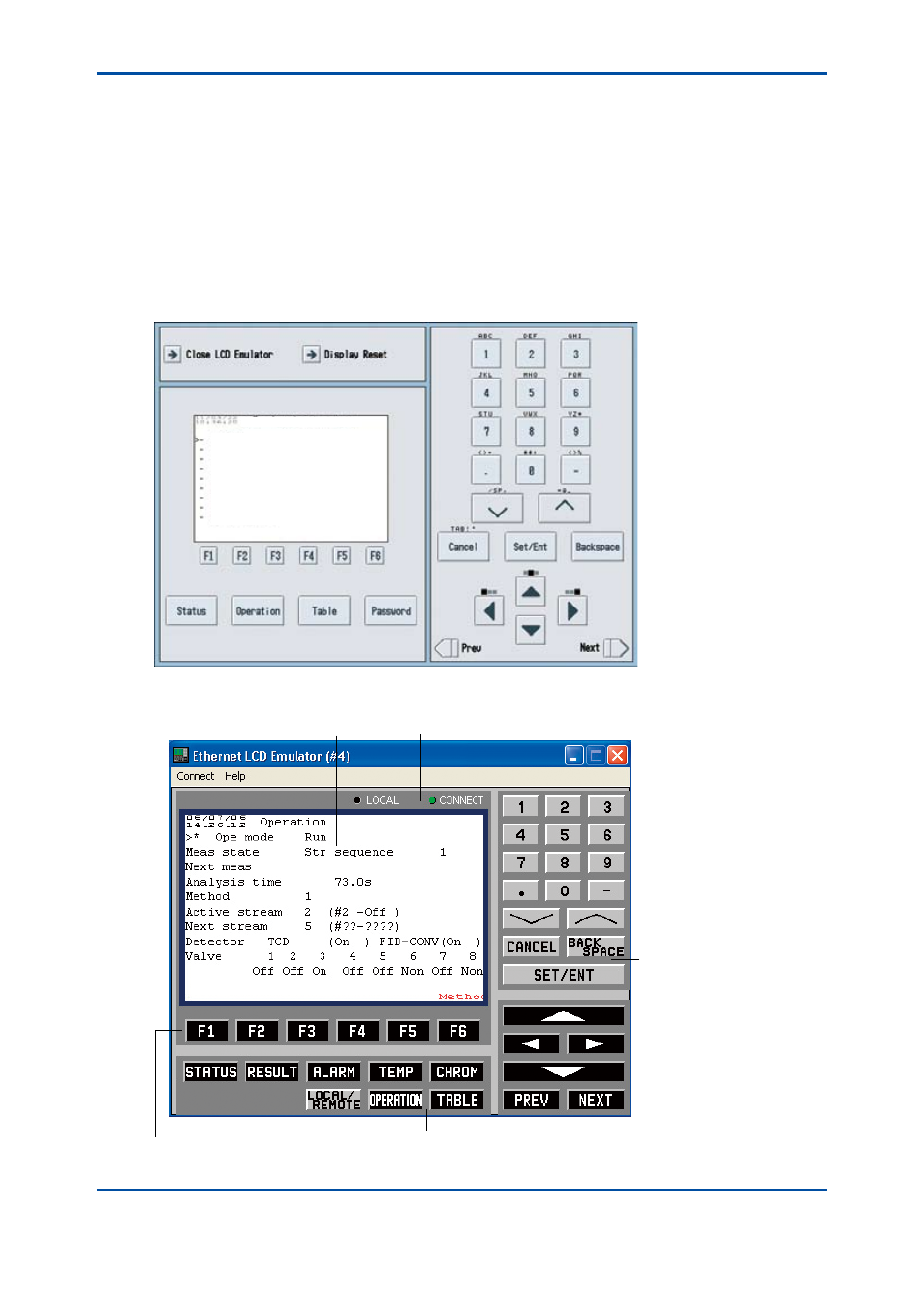

The following shows an LCD Emulator window configuration.
l GC8000
AI Status
AO Status
DI Status
DO Status
Remote AO Status
Remote DO Status
Revision number
Ethernet Status
Alarm Status
Status Menu (1/2)
l GC1000 MarkII
F0209.ai
Setting
entry keys
Function keys Window changing keys
LED indicator section LCD display
