The instrument also gives you the ability to turn the X and Y axes of the waveform through 180° of
rotation from -90° to +90°.

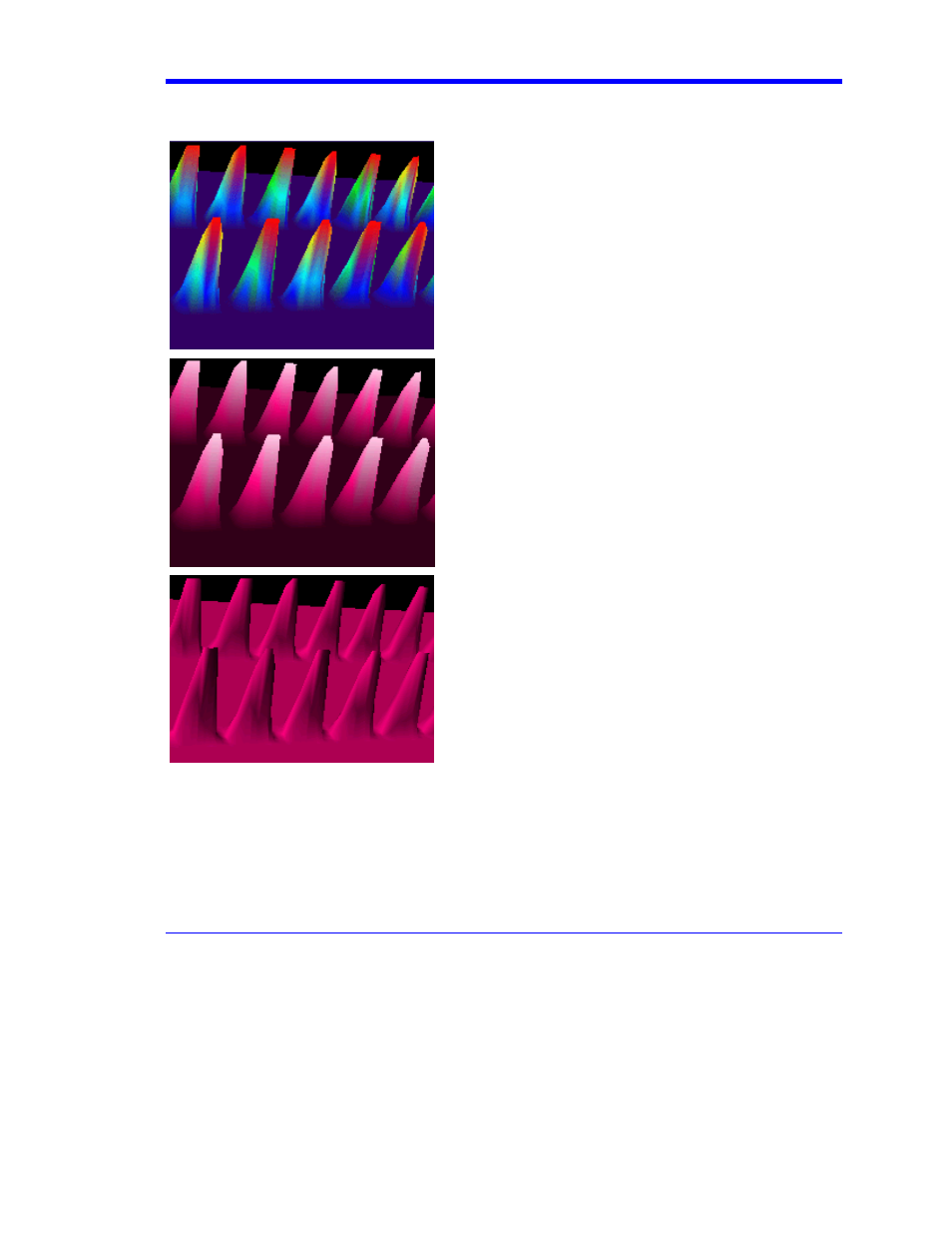

Here is an example of a 3-dimensional view of a
square wave using the solid view of
color-graded persistence. Saturation is set at
50%, with red areas indicating highest intensity.
The X-axis has been rotated 60%; the Y-axis has
been rotated 15%.

Here is a monochrome (analog) view of the
same waveform. The lightest areas indicate
highest intensity, corresponding to the red areas
in the solid view.

Here is a shaded (projected light) view of the
same waveform. This view emphasizes the
shape of the pulses.
