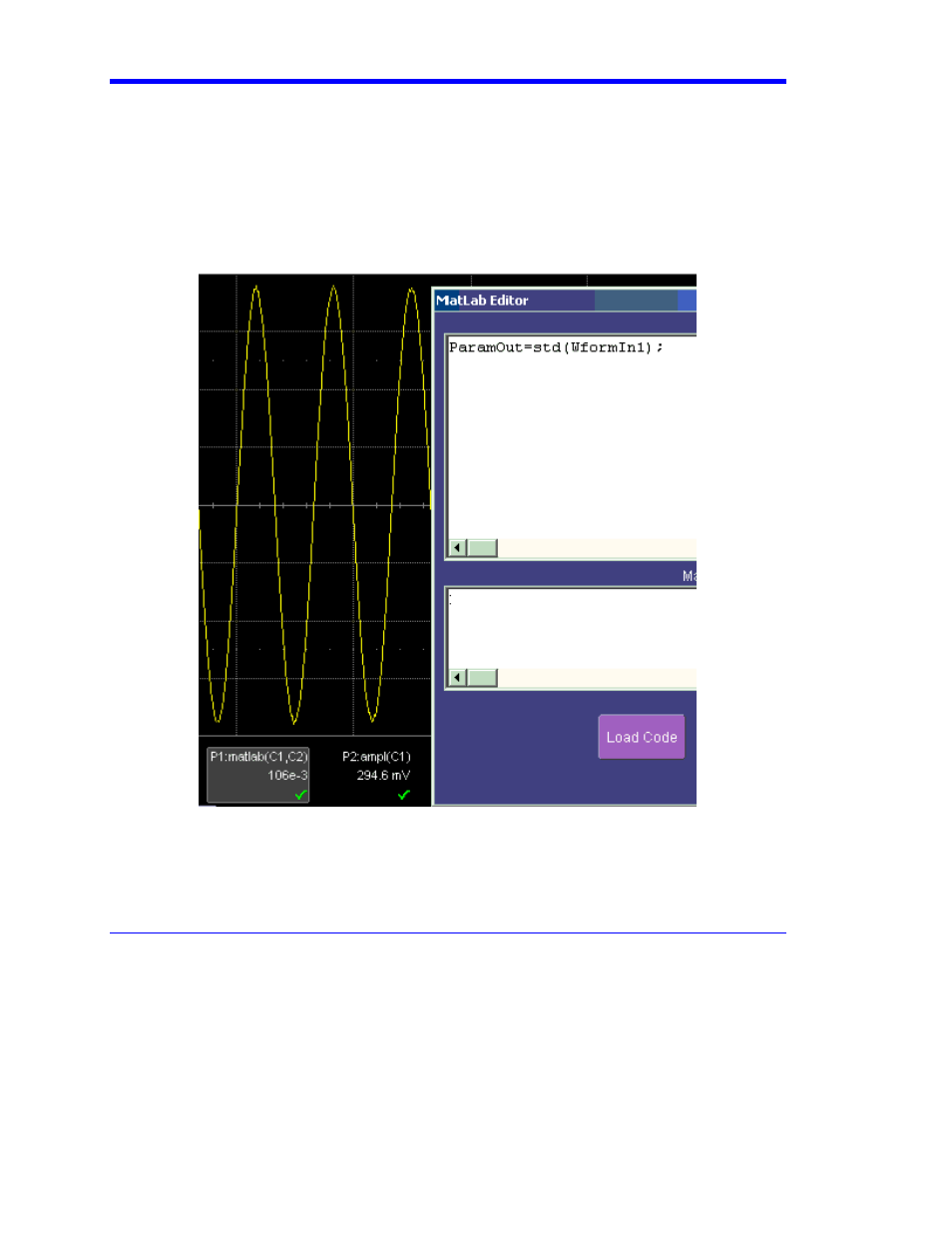

This simple example shows the MATLAB function Standard Deviation acting on input channel 1,
and the result would be shown in the MATLAB Response pane for an amplitude of 0.15 volt.
You can load an existing MATLAB program, using the Load Code button, and you can save the
current program, using the Save Code button.
If you are familiar with MATLAB you might prefer to launch MATLAB and create a MATLAB function
that performs your task. Your program in the instrument could then be a one-line call of your
MATLAB function.
MATLAB Example Parameter Panel
The next example calculates the ratio of the number of data points that are above a given level to
the number of points below the level, in this case one half of the amplitude.
