Operator’s Manual

326

WE-OM-E Rev A

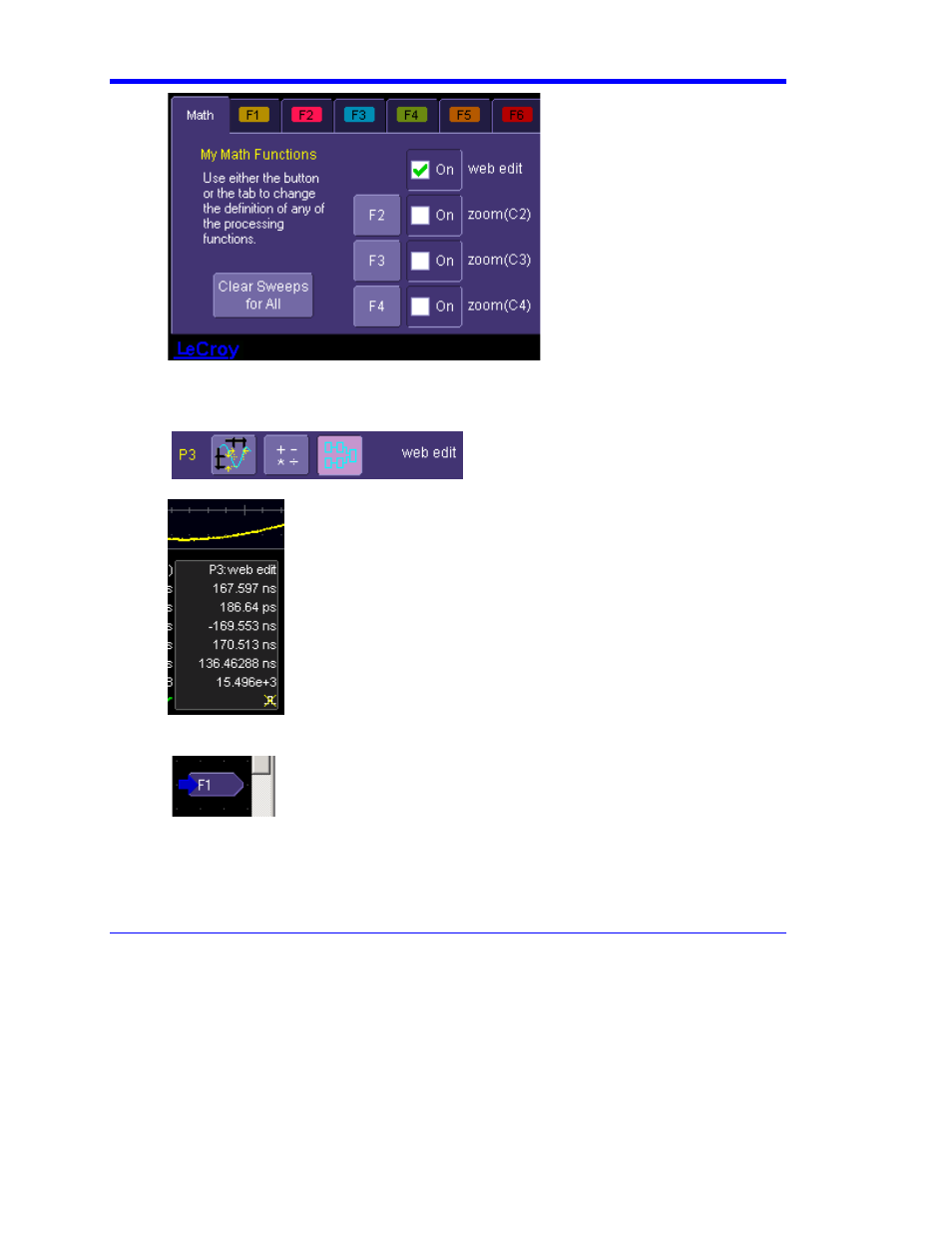

However, you can cancel web processing within the "Math Setup" dialog by touching the
single function, double function, or graph button. Touch the Measure tab, then touch the
Web Edit button, if you want to dedicate a parameter location (P1 to Px) for web
processing:

The parameter location you choose will display "Web Edit" under the waveform display grid

4. Touch

the

Web Editor tab to return to the web setup dialog. The math and parameter

locations you selected appear as outputs at the far right:

You may have to scroll up or down to see it.

5. Touch

the

Add Math button and select a math function from the Add Math Processor
