Wave Expert
WE-OM-E Rev A
139
.

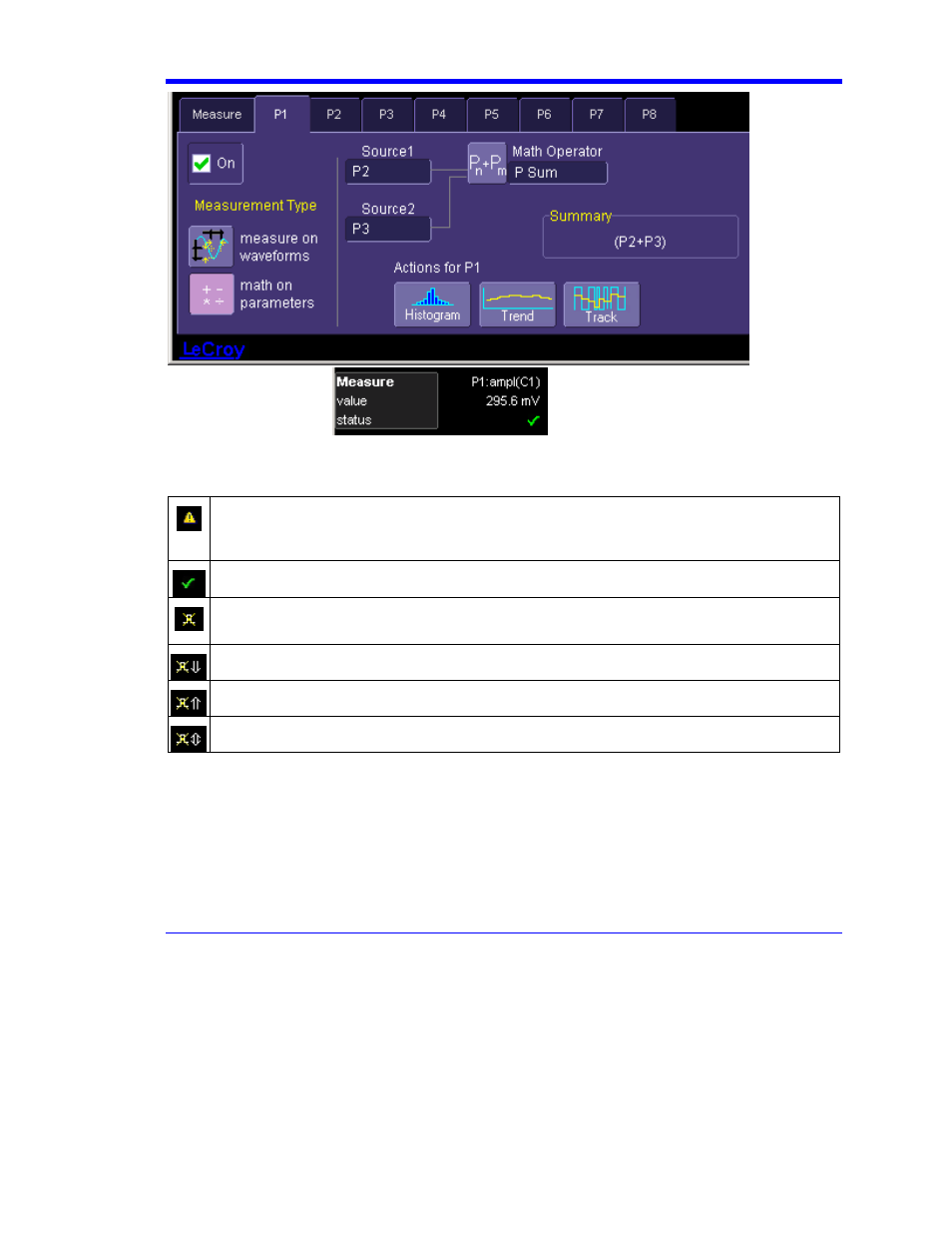

Touching the row titles displays the top Measure dialog.
Status Symbols
Below each parameter appears a symbol that indicates the status of the parameter, as follows:
A warning symbol indicates that there is something wrong with the signal or the setup. Touch
the parameter list box and read the explanation in the message line at the bottom of the
screen.
A green check mark means that the scope is returning a valid value.
A crossed-out pulse means that the scope is unable to determine top and base; however,
the measurement could still be valid.
A downward pointing arrow indicates an underflow condition.
An upward pointing arrow indicates an overflow condition.
An upward-and-downward pointing arrow indicates an underflow and overflow condition.
Using X-Stream Browser to Obtain Status Information
Example:
Here is a case of an overflow condition, in which the amplitude of the waveform cannot be
determined:
