front panel by pressing the release latch on the bottom of the connector while pulling on it. The
exposed fiber end can be cleaned using alcohol and/or an optical fiber cleaner.
Module Extender
The ME-15 Module Extender provides added flexibility to the WaveExpert oscilloscope. By means
of its 1.5 m cable, the module extender allows you to connect an electrical module to a device under
test (DUT) that is not in immediate proximity to the instrument.

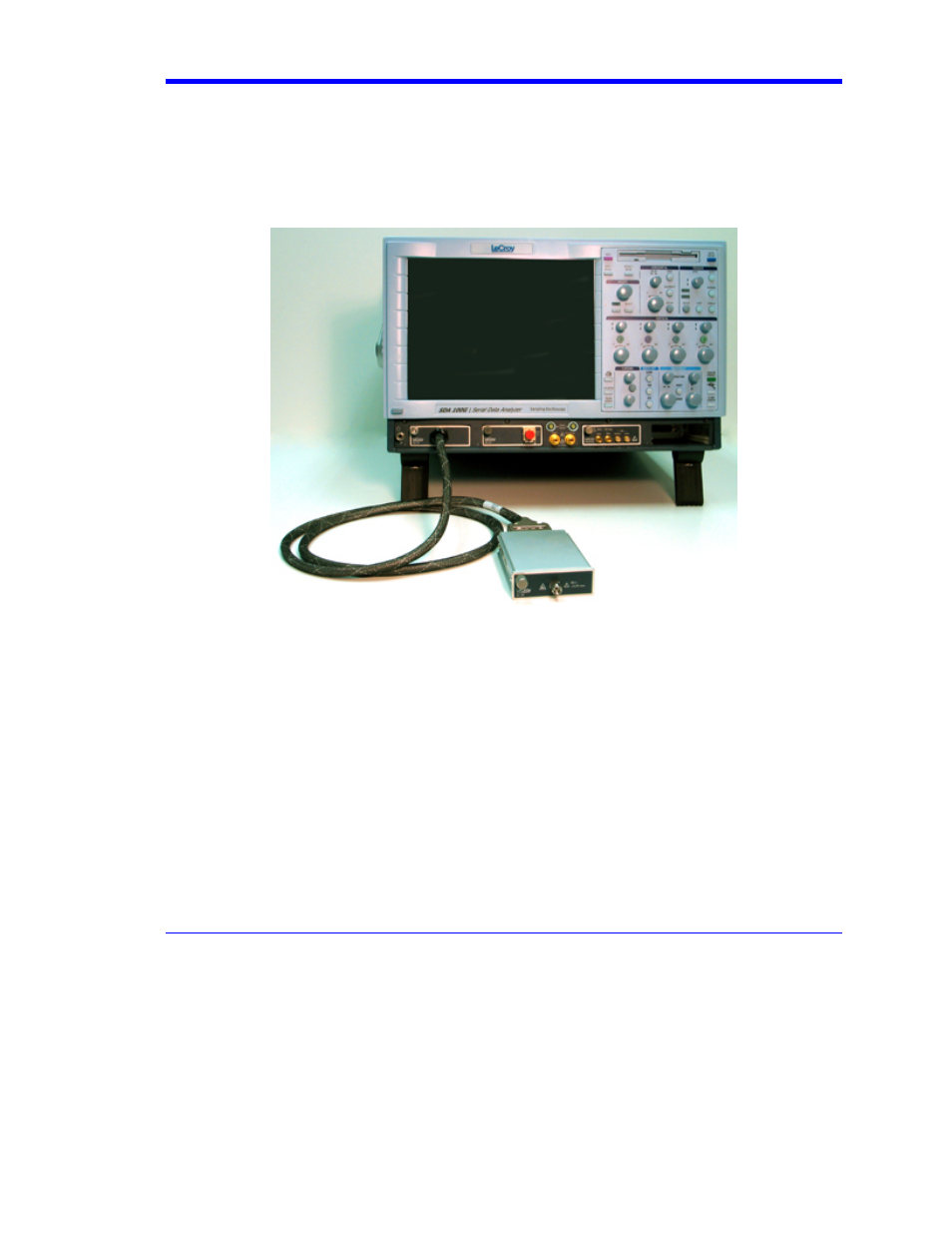

ME-15 Module Extender inserted into channel 1 slot of WaveExpert oscilloscope
