Columns D, E and F contain the headers for the three waveforms. These are the set of numbers
that provide the description of the scope settings, such as vertical scale and offset, and number of
samples.

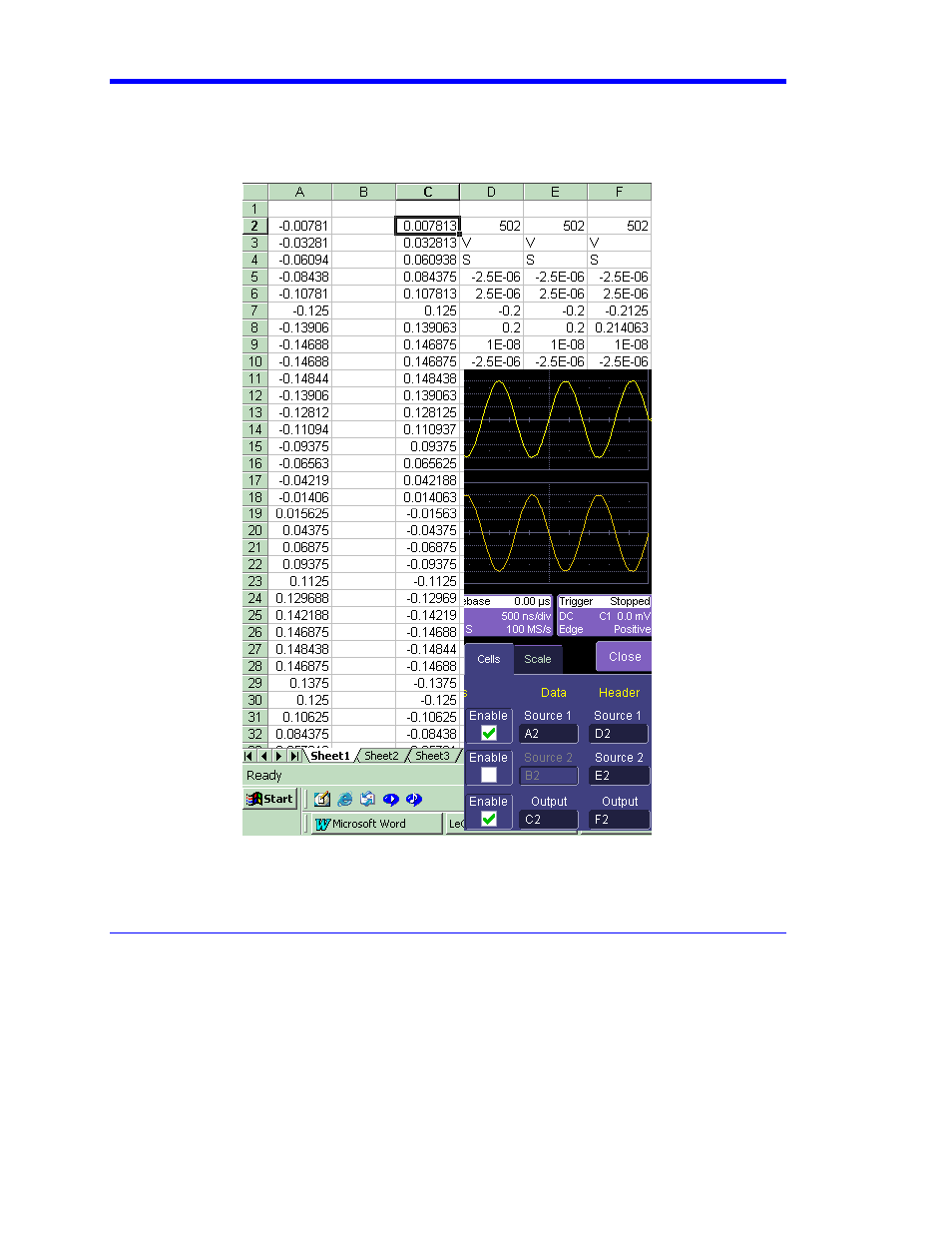

In this figure, the panel has been pasted onto the Excel sheet for comparison:
To get the output values in column C, we set C2 = - A2 and copy this formula down the column. This
is the only action needed in Excel, and can be seen in the next figure:
