5. Retrigger the scope (if it is not currently triggering)
6. Return to the program

Note that the only action that was needed in Excel was to create the formula in column C for each
data point in column A. The instrument automatically opens Excel, puts the waveform data in the
correct columns, and returns the calculated data back to the display as the chosen F trace. This
Excel-calculated trace can have further measurements or math calculations performed on it, if
desired.

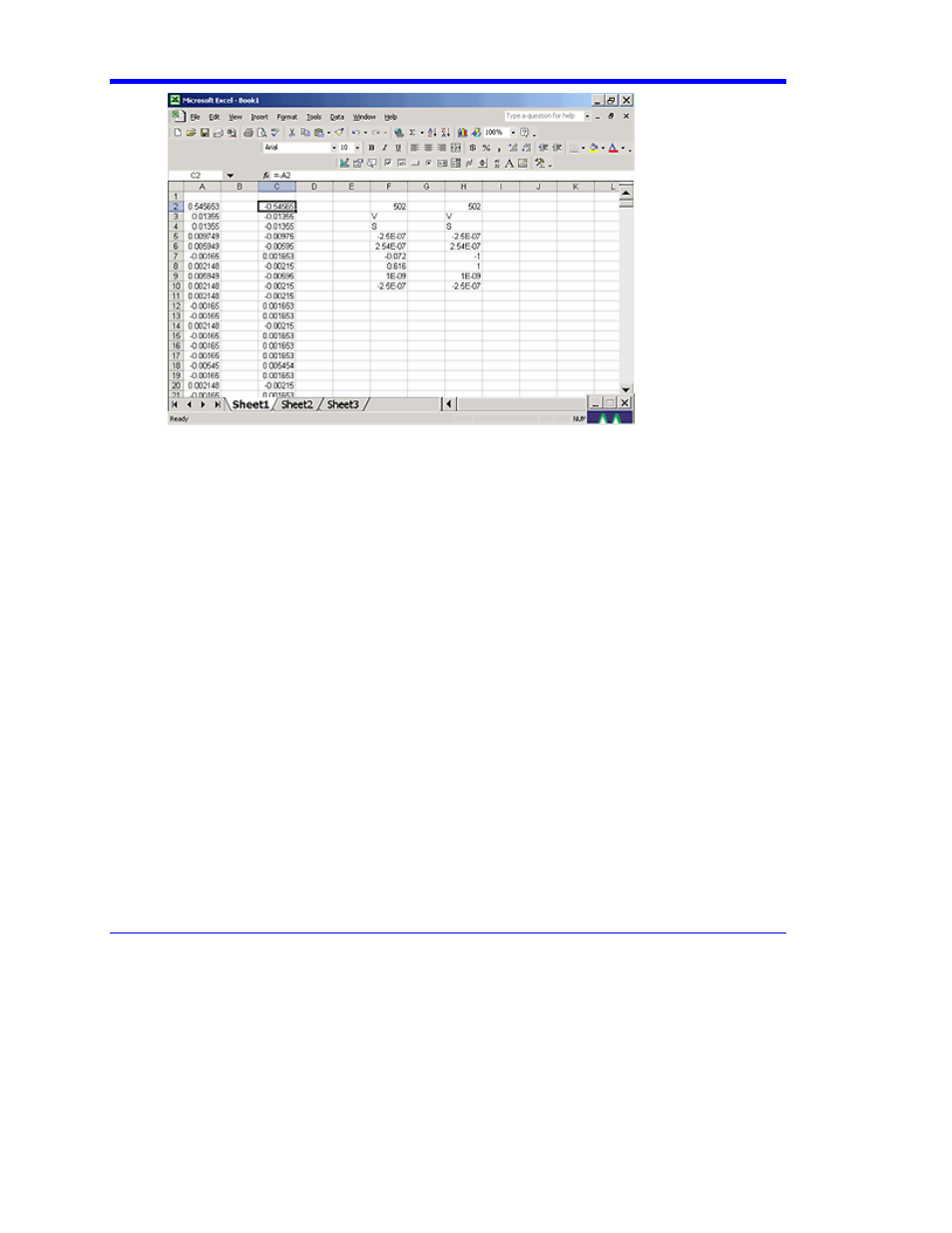

You can also create a chart of the data in Excel automatically and view the data there.
