PROCESSING WEB OPTION
This feature is available with the XWEB software option.
The Processing Web provides a graphical way to quickly and easily set up math functions and
parameter measurements. Using the Processing Web, you can chain together many more
math-on-math functions than you can using the Math Setup dialog, where you are limited to two
functions. In addition, you can insert a parameter measurement for any math output waveform
anywhere in the web.
The "web" analogy derives from the nodes and connecting lines used to construct the web. Nodes
are math functions selected from the Add Math Processor menu, parameters selected from the
Add Measure Processor menu, or parameter math functions from the Add Parameter Math
Processor menu.
Another key feature of the Processing Web is that you can preview your waveform at any math or
parameter node in the web. Math previews are thumbnail images of the waveform. For parameters,
the statistic displayed is the value of the last acquisition:

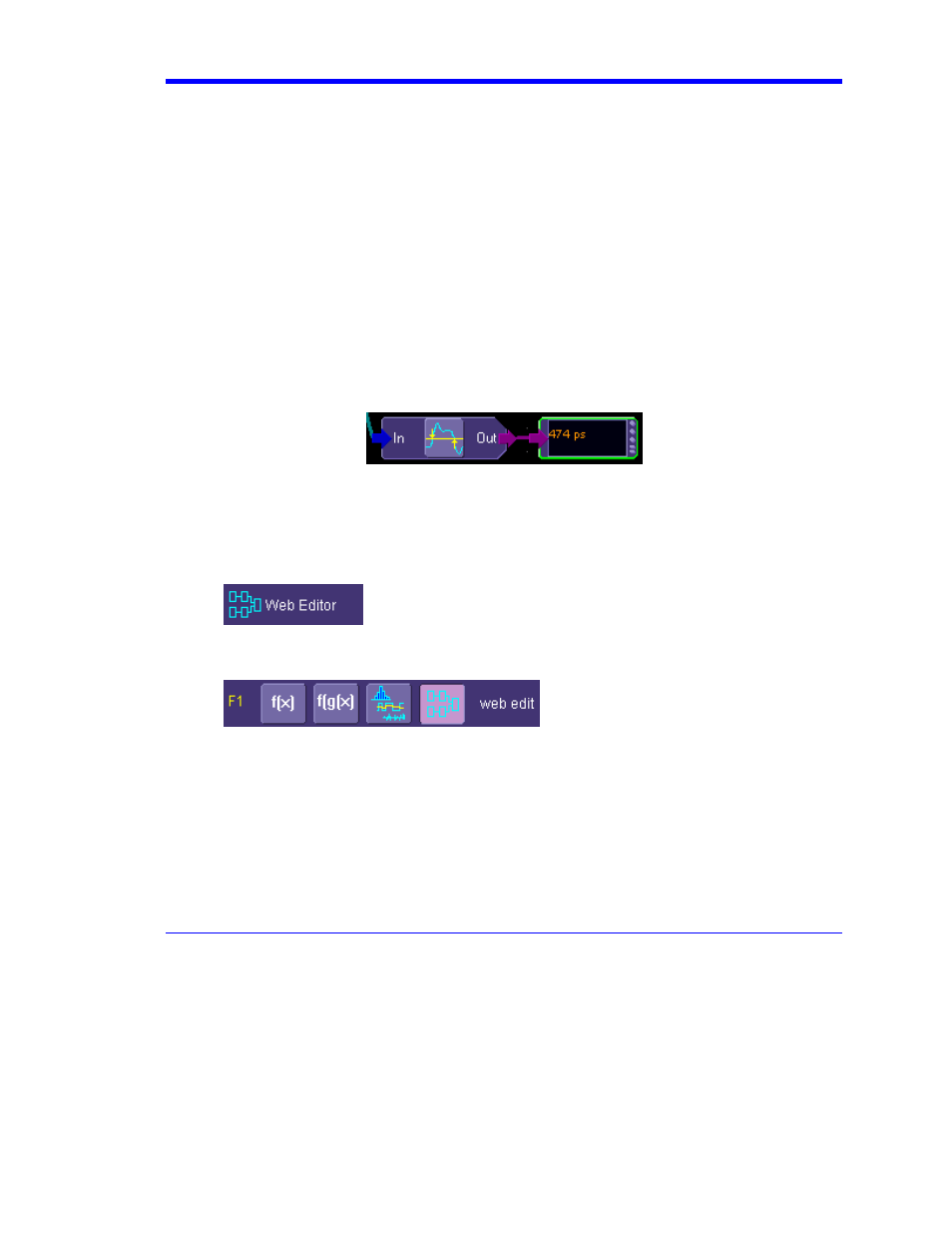

Statistic for Width Parameter
Once you have created a Processing Web setup, you can save and recall it for future use, the same
as for any panel setup.
To Use the Web Editor
2. In the menu bar, touch Display, then Web Editor in the drop-down menu.
3. Touch the Math tab and select a math location (F1 to Fx) for the new math function that you
are about to create by touching the Web Edit button:
.
Once you select a math location for web editing, it cannot be used for another math
function, and will appear as unavailable in the Math Setup dialog:
