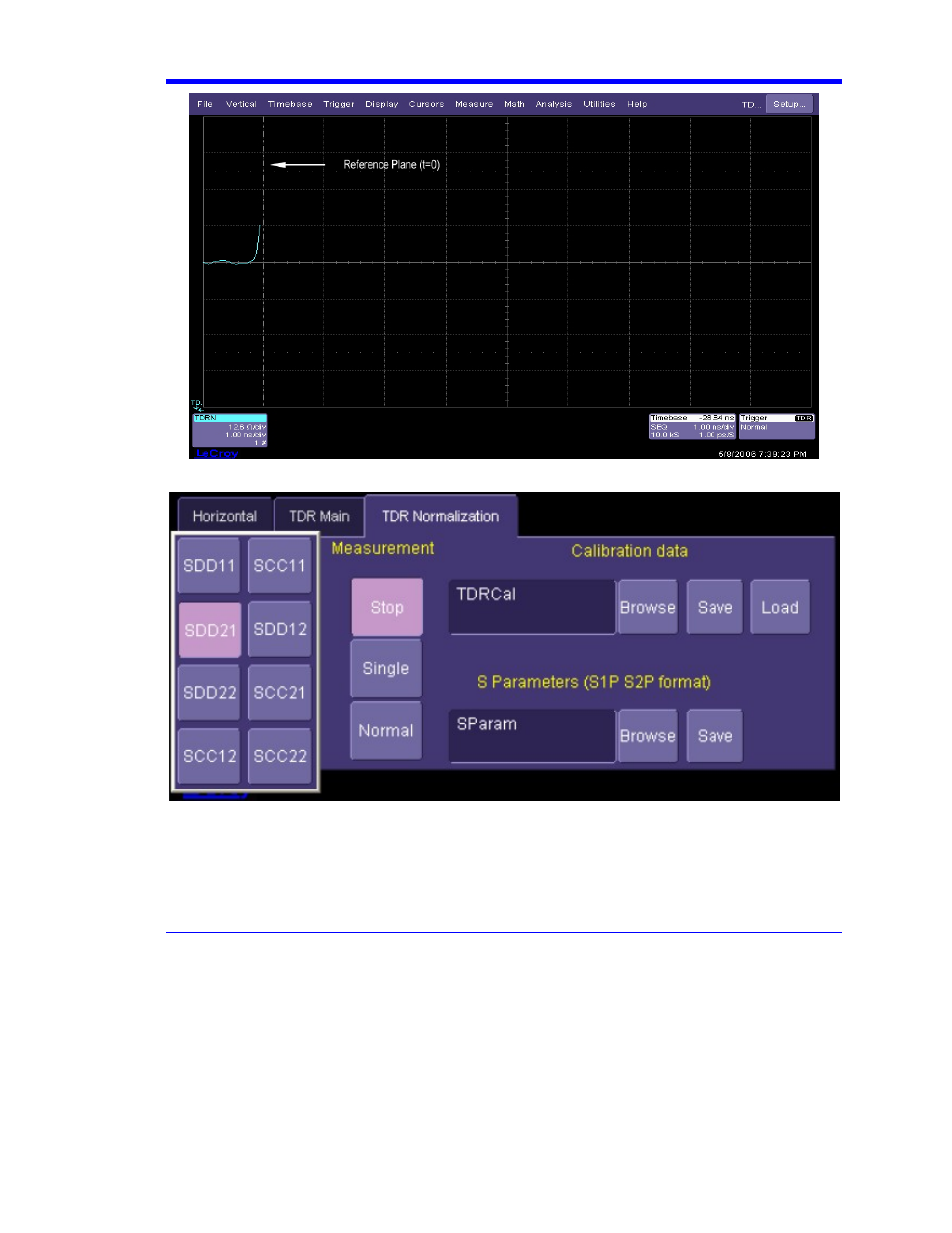

Calibrated trace
TDR rise time control
9. Reconnect the DUT to measure the Impedance response, now designated by the blue
Normalized trace.
10. Cursor marker and zoom functions can be used on the normalized trace to view the DUT’s
response.
